4.8 mm Skin Modal Damped Vision IsoStation™ Seated Optical Workstations with Rigid Support Legs
4.8 mm Skin Modal Damped Vision IsoStation™ Seated Optical Workstations with Rigid Support Legs

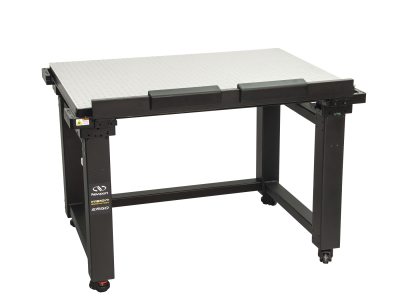

Precision Grade Ergonomic Vision IsoStation™ with rigid support legs are designed with the seated user in mind and inherit many unique and innovative features from the original Vision IsoStation.
- Precision grade modal damped optical breadboard
- Rigid support legs with field upgradability to pneumatic isolation
- More legroom and included hip guard and arm rests for seated users
- Shipped fully assembled with a roll-off crate for fast & easy installation
- Surface flatness of ±0.004 in. over any 2 ft. square
- Wide variety of accessories to customize your workstation See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-VIS3636-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 900 x 900 x 59 mm PG Breadboard, Rigid | |||||
| M-VIS3648-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 900 x 1200 x 59 mm PG Breadboard, Rigid | |||||
| M-VIS3660-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 900 x 1500 x 59 mm PG Breadboard, Rigid | |||||
| VIS3636-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 36 x 36 x 2.3 in. PG Breadboard, Rigid | |||||
| VIS3648-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 36 x 48 x 2.3 in. PG Breadboard, Rigid | |||||
| VIS3660-PG2-ERGN 4.8 mm Skin Modal Damped Ergonomic Vision IsoStation™ with Rigid SupportsErgonomic Vision Isostation, 36 x 60 x 2.3 in. PG Breadboard, Rigid |
Features
Vision IsoStation™ Optical Workstation Overview
Vision IsoStation™ Optical Workstations provide industry leading performance and more user friendly features and accessories than any other vibration isolation workstation. All of the features and accessories have been designed specifically to improve ease of installation, set-up and lab space utilization.
Patented Modal Dampers for Highest Damping Performance
Our precision grade modal damped optical breadboards combine patented modal damping technology and a unique integrated broadband damping design to deliver supreme performance and reliability for the most critical applications. Patented modal damping technology (US 6,598,545) utilizes two pieces of uniquely designed dampers combined using specially chosen elastomers, to dissipate the vibrations evenly, quickly and effectively. The modal dampers are installed as the side panels along all four sides of the breadboard, ensuring superior damping performance. The red curve in the compliance curve shows the superior performance provided by modal damping compared to our scientific grade optical breadboards without modal dampers (shown in light blue).
Designed Workstations for Seated Users with Innovate Platform Interface
With an open-front design and included hip guard and arm rests, the Vision IsoStation Ergo has been designed for seated users. The Ergo provides extra legroom for seated people while maintaining sturdy support allowing more comfortable examinations, operations, and experiments. They feature a unique platform interface consisting of 4 corner constraints that act as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features float height indicators and frame bubble levels to make set-up and installation easier than ever.
Shipped Fully Assembled for Easy Installation

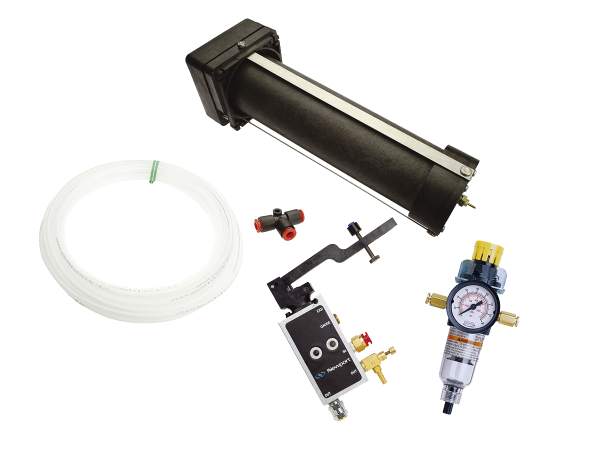

Field Upgradability from Rigid Frame to Isolated Frame
Vision IsoStation was designed with the maximum user flexibility in mind. When you purchase a rigid frame version of the workstation and later decide to upgrade to isolated frame, simply contact Newport and order an upgrade kit that allows you to upgrade your system in the field easily.
Vision IsoStation Optical Workstation Available Accessories
Vision IsoStation accessories are designed specifically for modern scientific and biological investigations. Visit Vision IsoStation Accessories to learn more about the ergonomic accessories offered to complete your system.
