Light Source Optical Filter Holders
Light Source Optical Filter Holders
Oriel® offers a variety of filter holders for incorporating optics of shapes and sizes into setups already using Oriel light sources. These three types of filter holders, along with a complete line of Flange Couplers and Adapters, provide an option for any optical setup or budget requirement.
- Quick Change Flange Mounted Filter Holder for easily installing filters into an enclosed light path
- Multiple Filter Holder holds multiple filters simultaneously
- Miniature Vice Filter Holder for flat optical components
- Holds circular or square optic components
- Compatible with Oriel flange system See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 62020 Light Source Filter Holders Multiple Filter Holder, 2.0 in. Filters, 1.5 Inch Series Flange | |||||
 | 6215 Light Source Filter Holders Multiple Filter Holder, 2.0 in. Filters, 2 Inch Series Flange | |||||
 | 71260 Light Source Filter Holders Optical Filter Holder, Quick Change, 1.75 - 2 in., 1.6 in. Clear Aperture | |||||
| 71261 Light Source Filter Holders Optical Filter Holder, Quick Change, 2.1 - 2.6 in., 2.0 in. Clear Aperture | |||||
| 71262 Light Source Filter Holders Optical Filter Holder, Quick Change, 3.0 - 3.9 in., 2.9 in. Clear Aperture | |||||
 | 77614 Light Source Filter Holders Optic Holder, Miniature Vise, Up To 0.25 in. Thick Optics |
Features

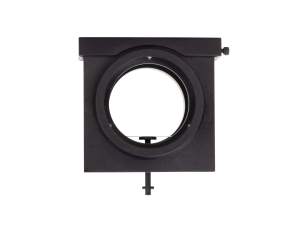

Quick Change Flange Mounted Filter Holder
The Quick Change Filter Holder line gives the user the ability to quickly install or remove filters in or out of an enclosed light path. A plunger on the bottom of the holder pushes the filter up for easy removal and a light-tight cover prevents leakage of ambient light into the enclosed optical path. This filter holder can accommodate circular and square shaped filters. The housing has both a male and female flange with the same dimensions as Oriel's lamp housings for easy integration into a light source setup. Three different quick change filter holders are offered:
- 71260 : 1.5 inch flange, holds 1.75 to 2 inch (43 to 51 mm) circular or square filters, 1.6 inch clear aperture
- 71261 : 2 inch flange, holds 2.1 to 26 inch (53 to 66 mm) circular or square filters, 2 inch clear aperture
- 71262 : 3 inch flange, holds 3.0 to 3.9 inch (76 to 99 mm) circular or square filters, 2.9 inch clear aperture
For installing 1.0 inch (25.4 mm) diameter filters into the 71260, the 7124 adapter is required. After the filter is installed into the 7124, simply slide the adapter into the 71260 filter holder.
Multiple Filter Holder
If an enclosed light path is not a requirement, a Multiple Filter Holder provides an inexpensive alternative to a Quick Change Filter Holder. Having an non-enclosed light path makes the filters easily accessible. Multiple filters can be installed and used simultaneously, as long as the total filter thickness does not exceed the maximum total thickness value for the Multiple Filter Holder. A 1/4-20 tapped hole is on the bottom of the filter holder housing to enable easy mounting with an Optical Rod.

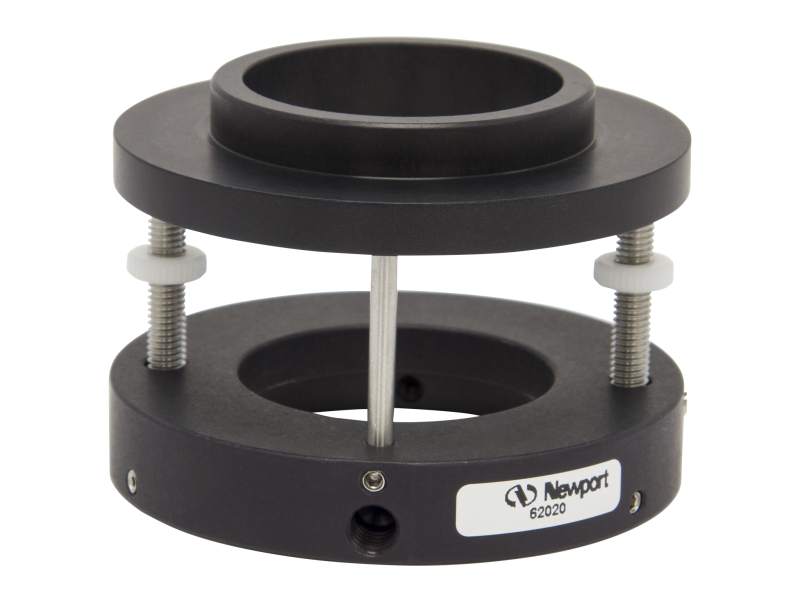

- 62020 : 1.5 inch flange, 3/4 inch maximum filter thickness, holds 2 inch circular or square filters, 1.5 inch clear aperture

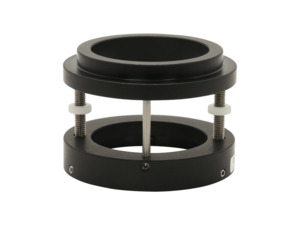

- 6215 : 2 inch flange, 3/4 inch maximum filter thickness, holds 2 inch circular or square filters, 1.8 inch clear aperture

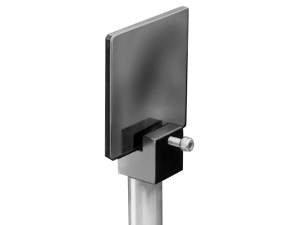

Miniature Vise Filter Holder
The 77614 Miniature Vise Filter Holder provides a simple, low cost option for using flat optical components. Circular or square optics of any dimension and as thick as 0.25 inch (6.4 mm) can be used. Simply slide the optic into the groove and tighten the thumbscrew. A 2 inch (50.8 mm) long optical rod is included for mounting.
Accessories
Flange Couplers and Adapters
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 66290 | |||||
 | 66292 | |||||
 | 7124 | |||||
 | 77790 | |||||
 | 77791 | |||||
 | 77792 | |||||
 | 77829 | |||||
 | LT10-UADPT | |||||
 | LT20-UADPT |
