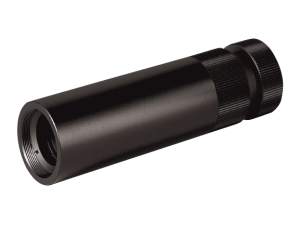

Laser Collimator
Our 10x laser collimator is optimized specifically for low wavefront distortion and diffraction limited performance at infinity focus in the visible wavelength region. The Galilean optical system is antireflection coated with visible MgF2 for maximum transmission.
- 10x beam expansion
- Diffraction limited performance
- Low wavefront distortion
- AR coated Galilean optical system
- Optimized for the visible spectrum See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LC-075 Laser CollimatorLaser Collimator, 10x, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity |
Features
Collimating a Laser Beam
A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.
Mounting a Laser Collimator
The ULM-TILT adjustable cylindrical device mount is excellent for mounting and positioning the LC-075 in any laser beam. You can also use our M1-VG kinematic v-groove mount for mounting to an optical post or VB-1 fixed v-groove mount for mounting to an optical pedestal or directly on the optical table.
