Driver Cables for ILX and Newport Laser Diode Instruments
Driver Cables for ILX and Newport Laser Diode Instruments
These cables are used to connect to ILX Lightwave® and Newport laser diode instruments to laser diode mounts, specifically for laser diode driving current. These cables are EMS shielded for maximum protection of the sensitive devices from environment, and include the proper connectors for use with ILX and Newport products.
- ILX Lightwave Instruments and Newport Cables
- Laser Diode Driver Cables
- Terminated, Unterminated, Pulsed Compatible Cables See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

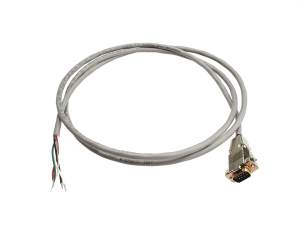

 | 500-02 Laser Diode Driver CablesCable, Laser Diode Driver, DB9 Male to Bare Wire | |||||

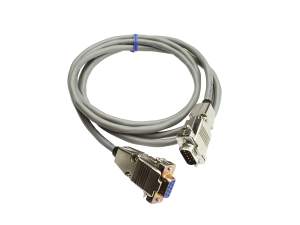

 | 500-04 Laser Diode Driver CablesCable, Laser Diode Driver, DB9 Male to DB9 Female | |||||

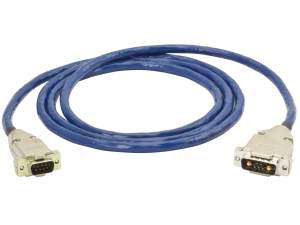

 | CC305H Laser Diode Driver CablesCable, Laser Driver to Mount, 6 Amp, 7W2 Male to DB9 Male | |||||

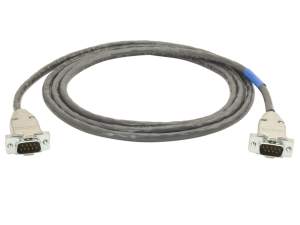

 | CC305S Laser Diode Driver CablesCable, Laser Driver to Mount, 5 Amp, DB9 Male to DB9 Male | |||||

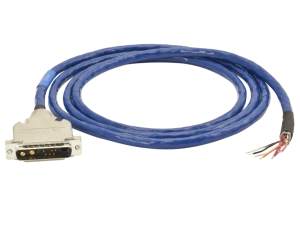

 | CC306H Laser Diode Driver CablesCable, Laser Diode Driver, 6 Amp, 13W3 Male to Bare Wire | |||||

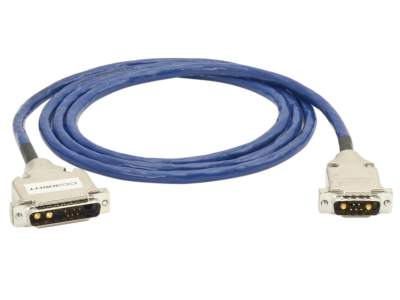

 | CC306HT Laser Diode Driver CablesCable, Laser Driver to Mount, 6 Amp, 13W3 Male to 7W2 Male | |||||

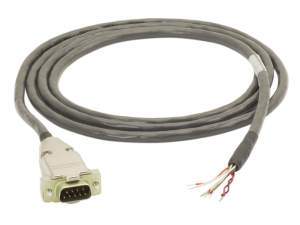

 | CC306S Laser Diode Driver CablesCable, Laser Diode Driver, 5 Amp, DB9 Male to Bare Wire | |||||

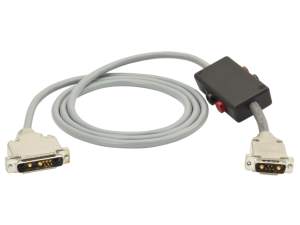

 | CC308H Laser Diode Driver CablesCable, Laser Driver to Mount, 20 Amp, 9W4 Male to 7W2 Male | |||||
| CC316M Laser Diode Driver CablesCable, Laser Driver to Mount, 5 Amp, DB9 Male to DB9 Male, 8-Pack | |||||
 | CC320 Laser Diode Driver CablesCable, Laser Driver to Mount, 40 Amp, 9W4 Male to 7W2 Male |
Resources
Technical Notes
Voltage Drop Across High Current Interconnect Cables(162.3 kB, PDF)
