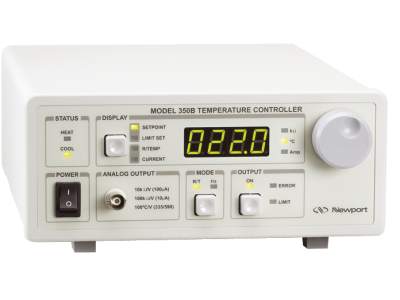

350B Laser Diode Thermoelectric Temperature Controller
350B Laser Diode Thermoelectric Temperature Controller
Please note, as the 350B is offered as part of a special Newport clearance promotion, this item does not come with a warranty or active calibration, sold as-is with no returns. Please see the product page for more information.
The Model 350B Thermoelectric Cooler (TEC) Controller offer a combination of features, performance, and value that is unmatched by other TEC controllers. Three operating modes are user selectable: constant R, constant T, or constant ITE (current to TE cooler), while delivering output power of 55 W.
- Ultra-stable temperature control (±0.001°C) over a broad range
- Wide TEC temperature range from -50 to +150°C
- Compatible with thermistors only
- USB 2.0 interface for remote control
- Windows XP compatible user interface software and drivers
- Not RoHS Compliant See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 350B Laser Diode Temperature Controller, 350B Thermoelectric Temperature Controller, ±5A, ±11V, 55W, USB, Not RoHS Compliant |
Features
Quiet and Safe Operation
Quiet, safe output current results from P-I-D control loop with complete flexibility for adjustment through the Newport LDD/TEC Application software (included) or user developed programs. The PID control algorithm achieves optimal stability and settling performance along with an ITE current limit setting protects TE coolers from damage, regardless of operating mode.
Additional Features
- Preset display lets you adjust operating setpoint before switching the output on
- Low noise, bipolar current output - <30µA
- Units are displayed in °C when using IC sensors and optionally with thermistors
Accessories
Temperature Controller Cables
Butterfly Mounts
Resources
Manuals
300B Temperature Controller Manual(1.3 MB, PDF)
