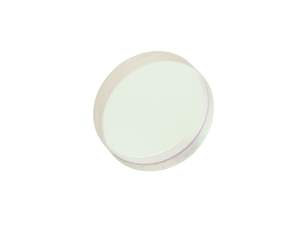

Laser Line Non-Polarizing Plate Beamsplitters
Laser Line Non-Polarizing Plate Beamsplitters

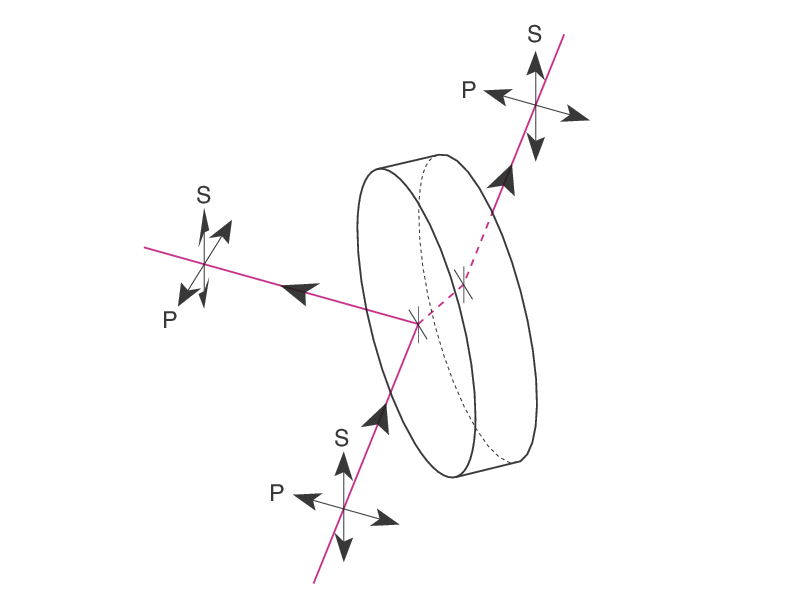

Newport's laser-line non-polarizing beamsplitters are insensitive to the polarization of the incoming beam. Polarization components are matched to within 5%.
- Virtually zero absorption for true 50/50 beamsplitters
- Designed for 45° angle of incidence with random polarization
- AR coated back surface eliminates ghosting

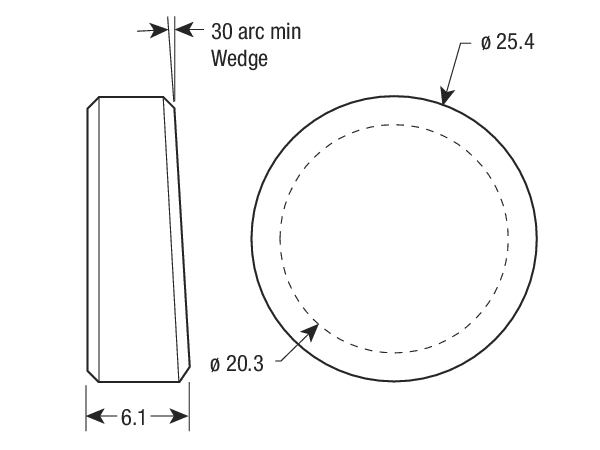

- Slight wedge to eliminate internal fringes
- Convenient mounting in standard optical mirror mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 10B20NP.22 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 488 nm Laser Line | |||||
| 10B20NP.24 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 532 nm Laser Line | |||||
| 10B20NP.25 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 632.8 nm Laser Line | |||||
| 10B20NP.27 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 780 nm Laser Line | |||||
| 10B20NP.28 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 830 nm Laser Line | |||||
| 10B20NP.29 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 1064 nm Laser Line | |||||
| 10B20NP.31 Laser Line Non-Polarizing Plate BeamsplittersBeamsplitter, Non-Polarizing, 25.4 mm Diameter, 1550 nm Laser Line |
Features
Laser Line Beamsplitter Construction
Our laser line non-polarizing beamsplitters exhibit exceptional performance in higher power applications, where cemented cube beamsplitters fail. Manufactured from high precision N-BK7 material to minimize wavefront distortion, this optic has a slight wedge to help eliminate back reflections to the laser. The front surface is coated with a multilayer all dielectric non-polarizing beamsplitter coating optimized for a specific laser line. The back surface is coated with a multilayer dielectric antireflection coating to minimize surface reflection losses and eliminate ghost images.
Better than Broadband Dielectric Beamsplitters

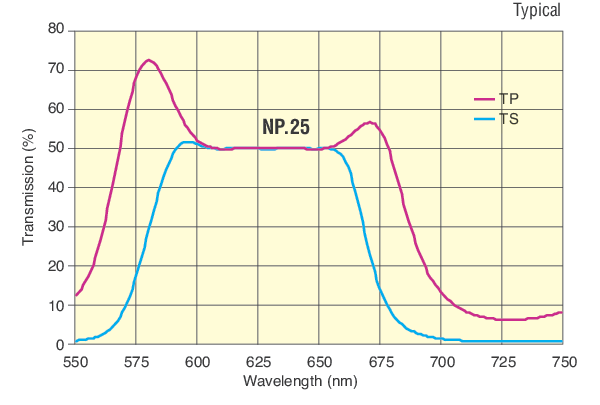

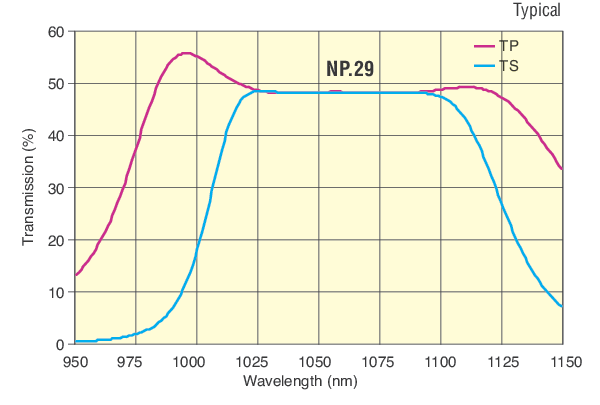

Unlike broadband dielectric beamsplitters, which are extremely polarization sensitive, Newport's laser-line non-polarizing beamsplitters are insensitive to the polarization of an incoming beam. The polarization components are matched to within 5%. Near zero absorption from these dielectric beamsplitters results in a true 50/50 split and high damage threshold, regardless of the incoming polarization.
N-BK7 Substrates
N-BK7 is an excellent lens material for most visible and near infrared laser line applications. It is the most common borosilicate crown optical glass, and it provides great performance at a good value. Its high homogeneity, low bubble and inclusion content, and straightforward manufacturability make it a good choice for transmissive optics.
