Medium Power Faraday Optical Isolators

Our medium power Farady optical isolators use SF1 polarizing beamsplitters (PBS) for 461, 532, 650, 780, 850, 980 nm laser applications requiring up to a 2 kW/cm² CW damage threshold. Double escape ports are provided for applications where rejected power exceeds 0.5 W.

461, 532, 650, 780, 850, 980 nm center wavelengths
High Verdet constant
Low absorption coefficients
1/2 Waveplate Option (-W models)
Tunability over a broad spectral range

See All Features

Show Filters:

Showing 11 of 11 total products

Compatibility:

Description	Compatibility	Center Wavelength	Spectral Range	Isolation	Avail.	Price
ISO-04-461-MP Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm Aperture, 461 nm Center	UNIVERSAL	461 nm	449–473 nm	27–32 dB		$2,550
ISO-04-532-MP Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm Aperture, 532 nm Center	UNIVERSAL	532 nm	500–600 nm	27–32 dB		$2,450
ISO-04-532-MP-W Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm, 532 nm, 1/2 Wave Plate.	UNIVERSAL	532 nm	500–600 nm	27–32 dB		$2,500
ISO-04-650-MP Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm Aperture, 650 nm Center.	UNIVERSAL	650 nm	600–680 nm	27–32 dB		$2,370
ISO-04-650-MP-W Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm, 650 nm, 1/2 Wave Plate.	UNIVERSAL	650 nm	600–680 nm	27–32 dB		$2,430
ISO-04-780-MP Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm Aperture, 780 nm Center	UNIVERSAL	780 nm	730–830 nm	27–35 dB	Discontinued
ISO-04-780-MP-W Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm, 780 nm, 1/2 Wave Plate	UNIVERSAL	780 nm	730–830 nm	27–35 dB	Discontinued
ISO-04-850-MP Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm Aperture, 850 nm Center	UNIVERSAL	850 nm	800–880 nm	27–35 dB	Discontinued
ISO-04-850-MP-W Medium Power Faraday Optical Isolators Faraday Optical Isolator, Medium Power, 4 mm, 850 nm, 1/2 Wave Plate, [DISCONTINUED]	UNIVERSAL	850 nm	800–880 nm	27–35 dB	Discontinued

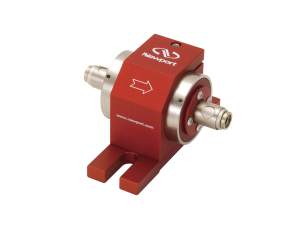

ISO-04-980-MP Medium Power Faraday Optical Isolators Optical Isolator, Medium Power, 4 mm Aperture, 980 nm Center	UNIVERSAL	980 nm	950–1010 nm	27–35 dB	Discontinued

Show All

Features

SF1 Polarizing Beamsplitter (PBS) Cube

Our medium power Faraday optical isolators use high damage threshold SF1 polarizing beamsplitter (PBS) cubes.

1/2 Waveplate Option

We offer versions with an added zero order 1/2 wave plate (-W models) at the output stage so that the direction of the output beam polarization can be rotated to a desired direction.

High Efficiency Performance

The TGG crystal utilized in our Faraday isolators creates a large Verdet constant that ultimately describes the strength of the Faraday effect and provides effective isolation of back-reflected light. Additionally, these isolators have low absorption as a function of the TGG crystal and polarizers, resulting in reliable transmission of light in the forward direction.

Easy Placement into Optical Train

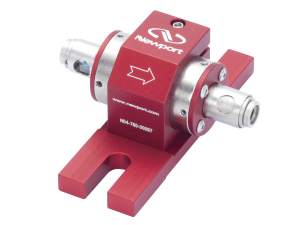

These isolators are packaged in a compact, cylindrically-shaped magneto-optic device with a base plate for easy mounting into an optical train.
