Microlens Arrays
Microlens Arrays

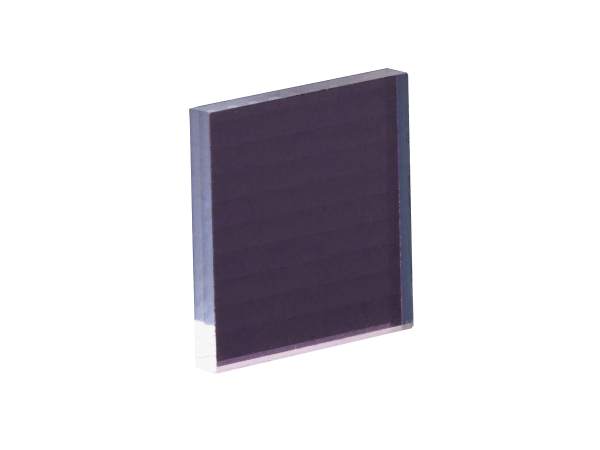

A microlens array is commonly used for homogenizing and shaping a variety of modern light emitters ranging from a line-narrowed excimer lasers to high power LEDs. These lenslet arrays are manufactured using photolithographic techniques based on semiconductor processing technology, yielding exceptionally accurate microlens profiles and lens array positioning.
- UV Fused Silica suitable for homogenizing excimer lasers
- 10 mm x 10 mm lens array size
- High fill factor which eliminates zero-order hot spots
- Square grid arrangement of microlens See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MALS10 Microlens ArraysMicro Lens Array, 10 x 10mm, 300 µm Pitch, 18.8 mm FL, ±0.50° | |||||
| MALS11 Microlens ArraysMicro Lens Array, 10 x 10mm, 300 µm Pitch, 8.7 mm FL ,±1.00° | |||||
| MALS12 Microlens ArraysMicro Lens Array, 10 x 10mm, 300 µm Pitch, 5.1 mm FL, ±1.60° | |||||
| MALS13 Microlens ArraysMicro Lens Array, 10 x 10mm, 300 µm Pitch, 4.8 mm FL, ±2.00° | |||||
| MALS14 Microlens ArraysMicro Lens Array, 10 x 10mm, 500 µm Pitch, 46.7 mm FL, ±0.25° | |||||
| MALS15 Microlens ArraysMicro Lens Array, 10 x 10mm, 500 µm Pitch, 32.8 mm FL, ±0.25° | |||||
| MALS16 Microlens ArraysMicrolens Array, 10x10mm, 500µm Pitch, 21.8mm FL,±0.75° | Discontinued | ||||
| MALS17 Microlens ArraysMicro Lens Array, 10 x 10mm, 500 µm Pitch, 15.3 mm FL ,±1.00° | |||||
| MALS18 Microlens ArraysMicro Lens Array, 10 x 10mm, 500 µm Pitch, 13.8 mm FL, ±1.20° | |||||
Features
Versatile Focal Length & Pitch Options
Microlens arrays are available in 8 focal lengths ranging from 4.8 mm to 32.8 mm. Depending on selected focal length and pitch (intralens spacing), divergence angles are available between ±0.25° and ±2°.
Manufactured Using Photolithography
These microlens arrays are manufactured using photolithographic techniques based on semiconductor processing technology. The microlens arrays yield exceptionally accurate shaping of the lens profile and precise positioning of the lenses.
