Post Clamps for Mirror Mount
Post Clamps for Mirror Mount
These post clamps fasten a mount at any angle and height to a 0.5 in. (12.7 mm) diameter post such as the SP Series. Threaded or through hole options for a single fastening screw are available, as is an option for separate adjustment and clamp screws.
- Fasten a mirror mount at any height and angle to a post
- Threaded or Through hole for connecting the mount
- Single screw fastens all parts or separate adjustment and clamp screws See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9911 Post Clamps for Mirror Mount Post Clamp, 0.5 in. Diameter Optical Posts, 8-32 (M4) Thru-Hole | |||||
 | 9917 Post Clamps for Mirror Mount Post Clamp, 0.5 in. Diameter Optical Posts, 8-32 Thread | |||||
| 9917-M Post Clamps for Mirror Mount Post Clamp, 12.7 mm Diameter Optical Posts, M4 Thread | |||||
 | 9930 Post Clamps for Mirror Mount Post Clamp, 0.5 in. Diameter Optical Posts, Separate Screws, 8-32 | |||||
 | 9930-M Post Clamps for Mirror Mount Post Clamp, 12.7 mm Diameter Optical Posts, Separate Screws, M4 | |||||
 | CC05 Post Clamps for Mirror Mount Component Clamp, 0.5 in. Posts, 1/4-20 and 8-32 Threaded Holes | |||||
 | M-CC05 Post Clamps for Mirror Mount Component Clamp, Ø1/2 inch Posts, M6 and M4 Threaded Holes |
Features

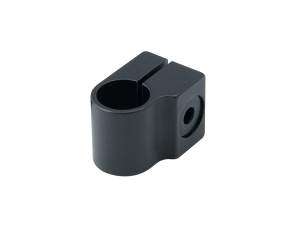

Post Clamps for Mirror Mounts

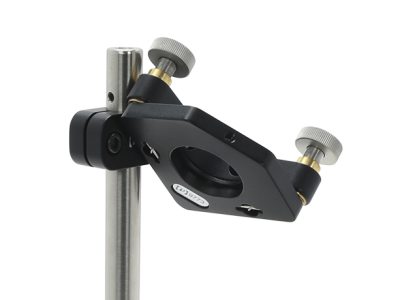

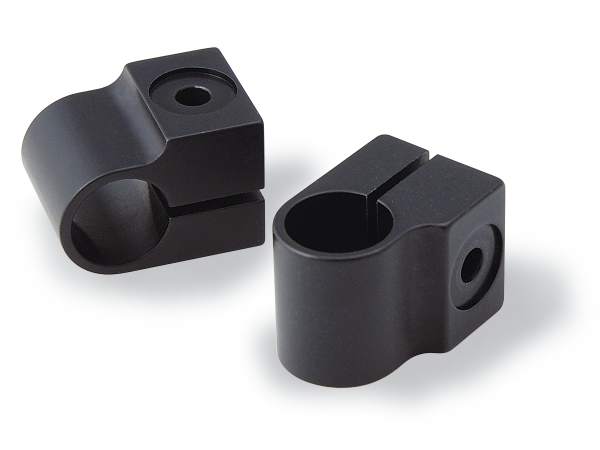

The 9911 and 9917 (-M) Post Clamps fastens a mount at any angle and height to a 0.5 inch diameter post. The clamping (to post) and mounting (to mirror mount) screws are one in the same. The 9917 (-M) has thread for mounts with 8-32 (M4) thru hole and the 9911 has thru hole for mounts with 8-32 (M4) thread.

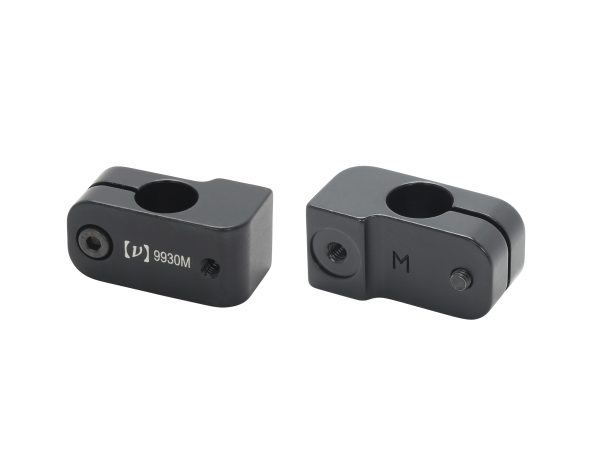

Post Clamps with Separate Screws

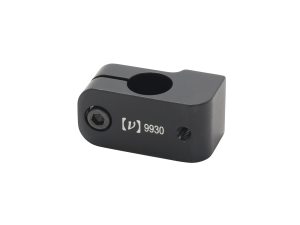

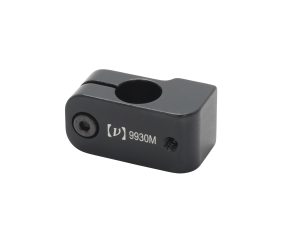

These 9930 (-M) Post Clamps fasten a mount at any angle and height to a post requiring separate clamping and mounting screws to allow repositioning of an attached mount without loosening the post clamp from post. The clamps have an 8-32 (M4) threaded hole for fastening a mount with a clearance hole.

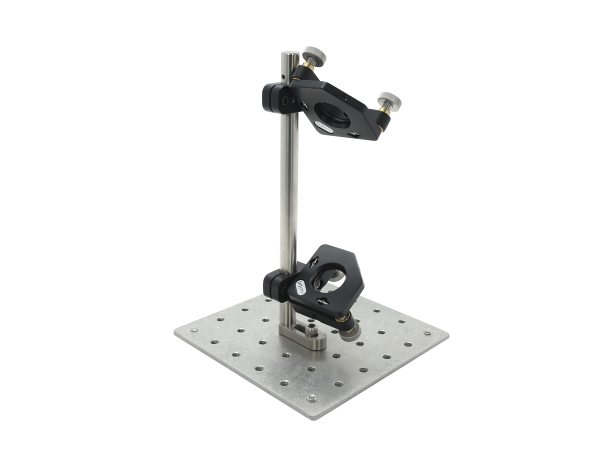

Ideal for Periscope Application
These post clamps are ideal for building a periscope by fastening two mirror mounts to any standard 0.5 in. optical post or pedestal.

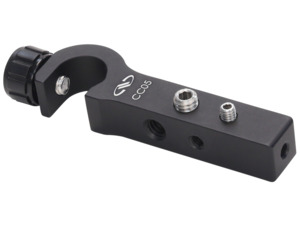

Side Attach an Optical Mount

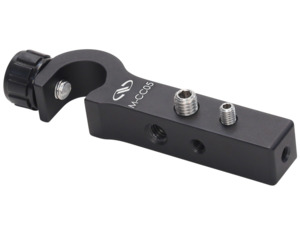

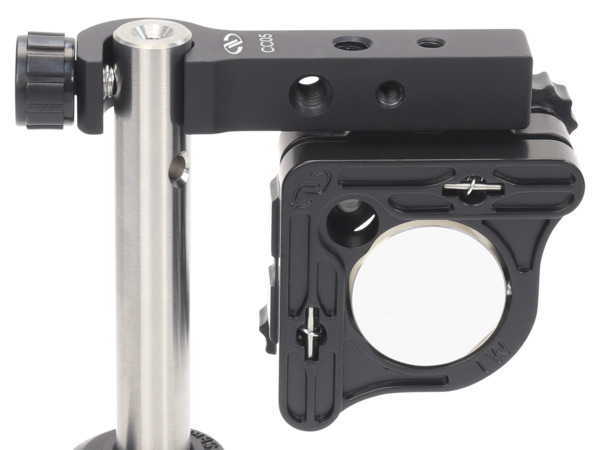

The CC05 can be used to attach an optical mount to the side of a 0.5 inch optical post. The feature is useful when your set-up does not allow for an optical post and post holder to be located below the optical mounts position.

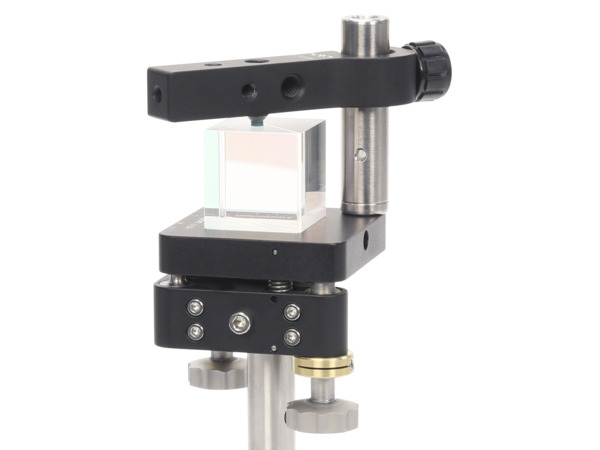

Prism or Cube Mounting
The CC05 mounting joist can be used with a platform mount to clamp an optical prism or cube beamsplitter.
