NanoPZ Piezo Motor Motion Controller
NanoPZ Piezo Motor Motion Controller
The NanoPZ Piezo Motion Controllers provide convenient, compact, and flexible fine positioning control of the NanoPZ Ultra-High Resolution Actuators.
- Ergonomic hand controller
- Control up to 8 channels
- Windows application for plug-and-play use See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PZC-SB NanoPZ 1-Axis Expandable Piezo Motion ControllerPZC200 Switchbox, Driver & Controller Cables | Discontinued | ||||
 | PZC200 NanoPZ 1-Axis Expandable Piezo Motion ControllerMotion Controller, Hand-held, PZA12 | Discontinued | ||||

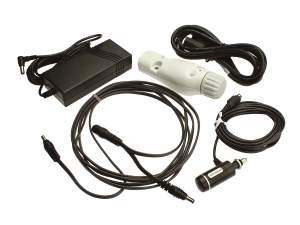

 | PZC200-KT NanoPZ 1-Axis Expandable Piezo Motion ControllerActuator Kit, PZC200 Cont. NSC-PS25 Power Supply, NSC-PSC3 Cable | Discontinued | ||||
Features
Ergonomic Hand Controller
The PZC200 integrated, single-axis, piezo motor controller/driver provides convenient and ergonomic one hand speed control of the NanoPZ Ultra-High Resolution Actuators. For remote control, the PZC200 features an RS-485 port for serial communication. With optional converters, it can be connected to a computer through RS-232 or USB.

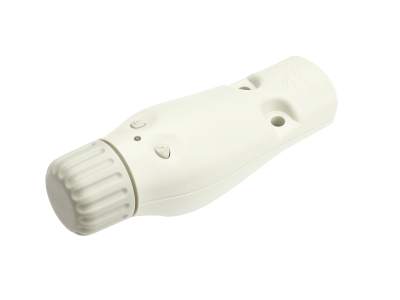

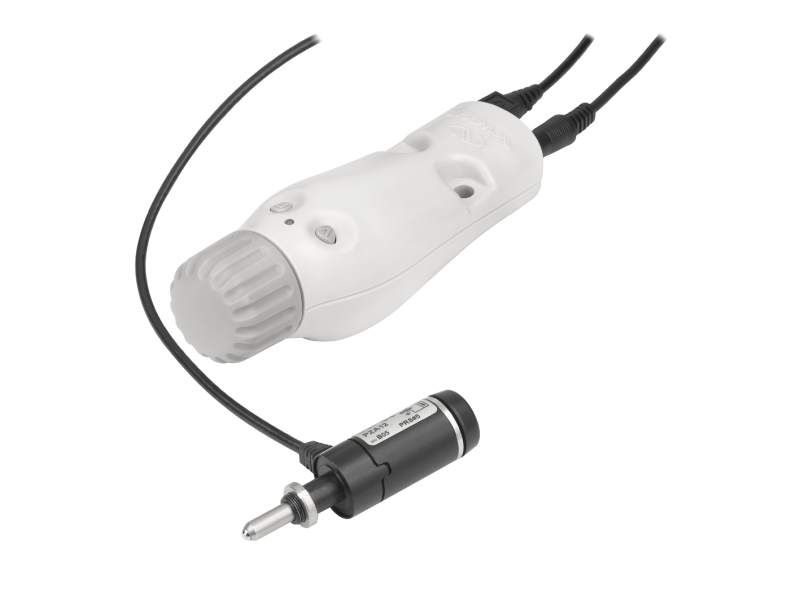

PZC200 controller with PZA12 actuator.
Control NanoPZ Equipped Stages and Mounts
RS65 rotation stages, ULTIMA optical mounts, 561D-XYZ ULTRAlign™ precision linear stages, and other Newport positioning products can be equipped with PZA12 actuators and controlled with the PZC200 single axis, controller/driver.

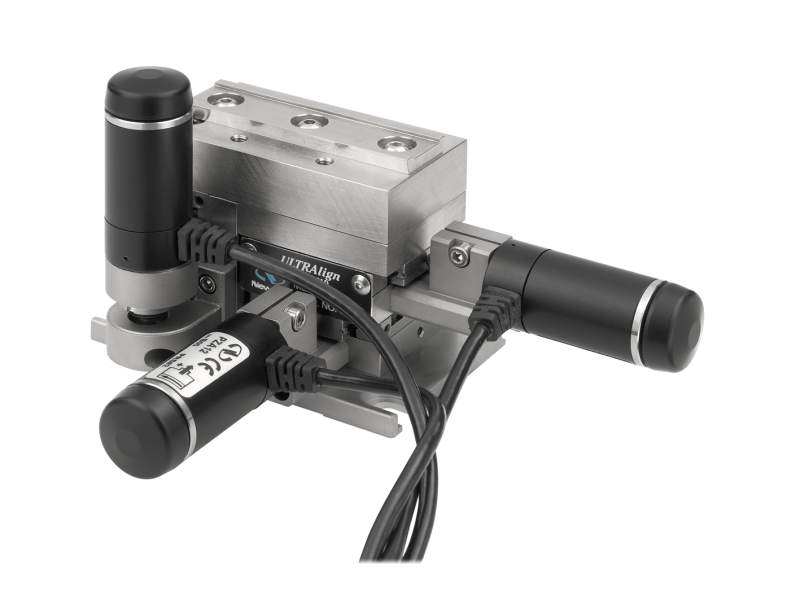

561D-XYZ ULTRAlign™ precision linear stage equipped with PZA12 actuators.
Control up to 8 Channels
The PZC200 integrated, single-axis, piezo motor controller/driver provides convenient and ergonomic one hand speed control of the NanoPZ Ultra-High Resolution Actuators. For remote control, the PZC200 features an RS-485 port for serial communication. With optional converters, it can be connected to a computer through RS-232 or USB.
Connection diagram for several actuators and one controller with switchbox and with computer interface.
Windows Application for Plug-and-Play Use
Included with the NanoPZ Piezo Motion Controllers is an intuitive graphical user interface Windows software application to facilitate quick, user-friendly motion control through the PZC200 controller's RS-485 (converted to RS-232 or USB) interface.
Resources
Manuals
NSC200 Motion Control System User's Manual(3.9 MB, PDF) NanoPZ Motion Controller Quick Start Guide(504.5 kB, PDF) NanoPZ Motion System User's Manual(1.8 MB, PDF)
Software
PZC200(594.4 kB, ZIP) NP-General-NPZ-LV6(225.2 kB, ZIP)
Literature
NanoPZ Data Sheet(836.2 kB, PDF)
