ODiate® Fluorescence Filter Sets
ODiate® Fluorescence Filter Sets
ODiate® Fluorescence Filter Sets utilize a dense sputtering process to meet the highest demands for fluorescence and microscopy applications including exceptionally high passband transmission, maximized out-of-band blocking ≥ OD8, extremely steep slopes, and spectral specifications illuminating fluorescence chemistries to provide maximum image brightness. Discover how ODiate fluorescence filters can differentiate the performance of your life and health science applications, medical instrumentation, and chemical or material analyses.
- Maximize signal quality
- Improve system sensitivity
- Enhance imaging throughput
- Tailored to key fluorescence chemistries
- ≥ OD10 avg, over Excitation/Emission passband (verified as ≥ OD8 avg) See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

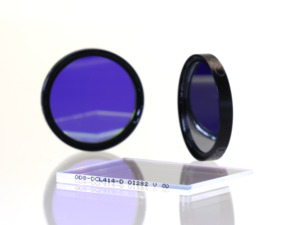

 | OD8-FFS2005 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, DAPI Fluorophore | |||||

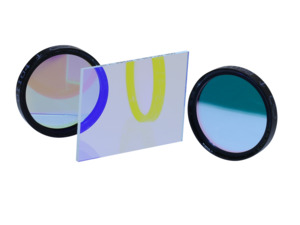

 | OD8-FFS2010 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, GFP Fluorophore | |||||
 | OD8-FFS2015 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, FITC Fluorophore | |||||
 | OD8-FFS2020 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, TRITC Fluorophore | |||||

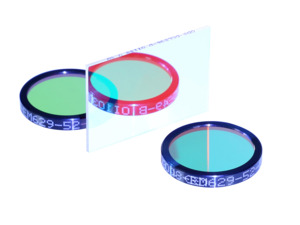

| OD8-FFS2025 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, mCherry & TexasRed Fluorophores | |||||

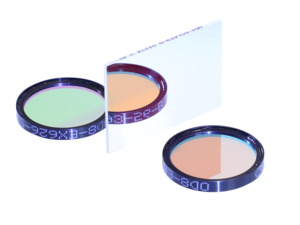

 | OD8-FFS2030 ODiate® Fluorescence Filter Sets Fluorescence Filter Set, ODiate®, Cy5™ Fluorophore |
Set Components
Set Components
Each ODiate® Fluorescence Filter Set contains one each of the filters shown in the table below. Please see the individual filter pages for complete specifications and a list of other Fluorophores covered by the filter set.
| Set | Primary Fluorophore | Excitation Filter | Dichroic Beamsplitter | Emission Filter |
|---|---|---|---|---|
| OD8-FFS2005 | DAPI | 379.5 nm Center | 414 nm Cut-on | 450 nm Center |
| OD8-FFS2010 | GFP | 474 nm Center | 498 nm Cut-on | 523 nm Center |
| OD8-FFS2015 | FITC | 482.5 nm Center | 508.5 nm Cut-on | 537 nm Center |
| OD8-FFS2020 | TRITC | 539 nm Center | 560.5 nm Cut-on | 593 nm Center |
| OD8-FFS2025 | mCherry & TexasRed | 564.5 nm Center | 596 nm Cut-on | 629 nm Center |
| OD8-FFS2030 | Cy5™ | 626 nm Center | 658.5 nm Cut-on | 692.5 nm Center |
Features
ODiate Filter Manufacturing & Metrology
ODiate Fluorescence Filter Sets are manufactured using advanced thin-film deposition systems ensures optical filters achieve excellent transmission and reflection accuracy. ODiate filter specifications are verified utilizing commercial spectrophotometric tools in addition to Newport’s proprietary custom in-house tools to measure edge steepness resolution, and deep blocking to optical density 8 [-log10(T)].
Optimized Coatings and Engineering Expertise
Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.
Environmental Stability and Physical Durability
The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
Resources
Literature
ODiate Fluorescence Filter Sets Datasheet(1.7 MB, PDF)
