1.0 in. Optical Pedestal Cubes

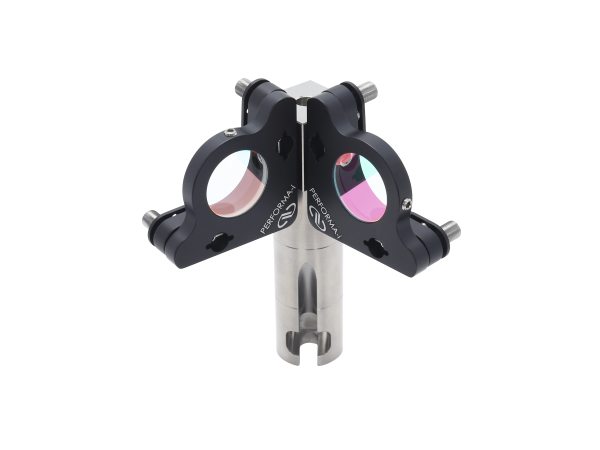

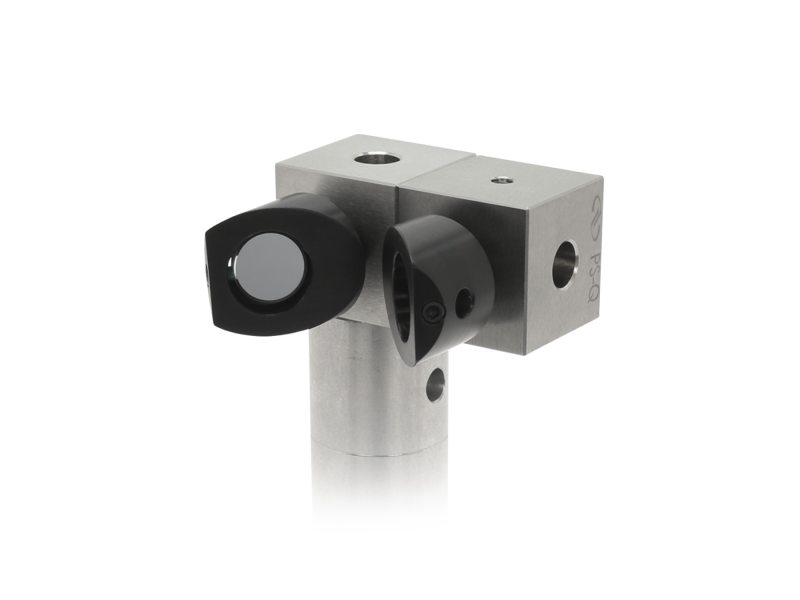

PS-Q stainless steel Optical Pedestal Cubes allow the mounting of PS Series Optical Pedestals and Extensions at a 90° angle, enabling the construction of ultra-stable, multi-dimensional structures. The unique features of this system allow periscope configurations and simple delay lines to be easily formed, orthogonal close proximity post mounting of two mirror mounts, and infinite stacking of cubes while maintaining a common alignment.

Mount 1.0 in. optical pedestals & posts at 90° angles
Enables assembly of ultra-stable multi-dimensional structures
Made from solid stainless steel
English and Metric versions

See All Features

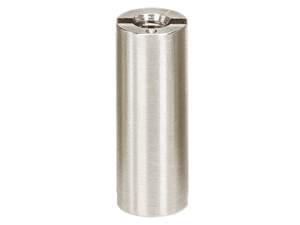

Description	Compatibility	Price

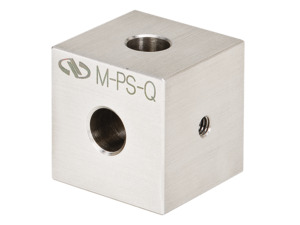

M-PS-Q 1.0 in. Optical Pedestal CubesOptical Pedestal Cube, M4 Mounting Holes	METRIC	$44
M-PS-QA 1.0 in. Optical Pedestal CubesThread Adaptor, Optical Pedestal Cube, M4 Thread	METRIC	$14.40

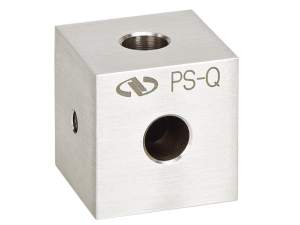

PS-Q 1.0 in. Optical Pedestal CubesOptical Pedestal Cube, 8-32 Mounting Holes	IMPERIAL	$44
PS-QA 1.0 in. Optical Pedestal CubesThread Adaptor, Optical Pedestal Cube, 8-32 Thread	IMPERIAL	$14.40

Features

Highly Stable Multi-dimensional Structures

PS-Q Optical Pedestal Cubes are designed for mounting 1.0 in. PS Series Optical Pedestals and Posts at a 90° angles to one another. This provides the high stability mounting offered by the 1 in. (25.4 mm) diameter posts in multiple dimensions without the need of additional mounting space of bulky stages and additional clamping forks. These solid stainless steel cubes are offered with 8-32 or M4 threaded holes for mounting, as well as larger clearance holes.

MT series compact stage assembly

Center-aligned Cube stacking

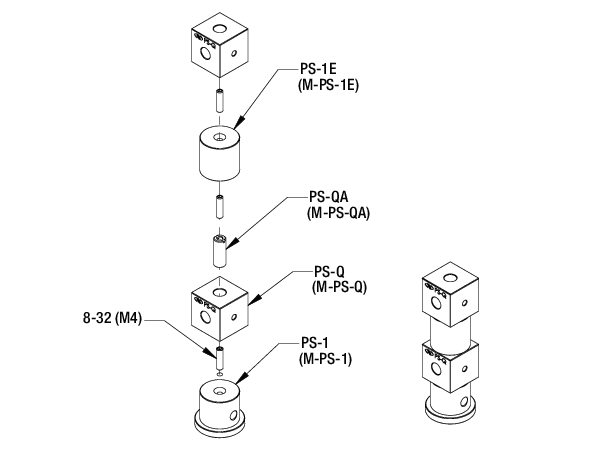

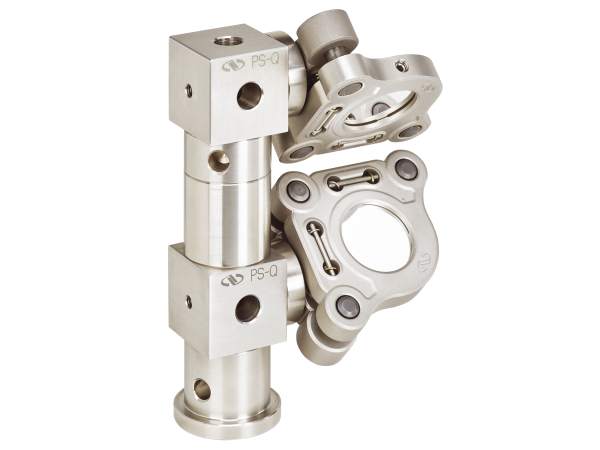

The Pedestal Cube system is unique is its ability to allow stacking of cubes on posts collinearly with PS-QA thread adaptors. This feature allows two cubes to form a periscope configuration easily. The thread adaptor also allows the cube to be rotated to the same orientation as any other attached cubes while still providing a threaded hole on the top side of the cube for further stacking of cubes or mounting components. With this feature, unlike other cubes, the Pedestal Cube can be infinitely stacked while maintaining a common alignment.
