Picomotor™ Motion Controller Accessories
Picomotor™ Motion Controller Accessories
These accessories allow you to customize your 8742 and 8743-CL module setup to meet your specific needs. Accessories include additional cables, adapters, power supplies, and even small kits for stacking modules, table mounting, and PC interfacing.
- Picomotor power supplies and cables
- Convenient communication cables
- Mounting plates and kits See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8725 Picomotor Motion Controller Accessories Multi-Axis Adapter, Picomotor, 6 pin to 3x 4 pin | |||||
 | 8745-MTG-KIT Picomotor Motion Controller Accessories Mounting Plate Kit, Optical Table, 8742 and 8743-CL Controller/Driver | |||||
 | 8745-PS Picomotor Motion Controller Accessories Power Supply, 8742 and 8743-CL Controller/Driver, 12V | |||||
 | 8745-PWR-CBL Picomotor Motion Controller Accessories Power Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver | |||||
 | 8745-RS485-CBL Picomotor Motion Controller Accessories RS-485 Cable, 6 in. Length, 8742 and 8743-CL Controller/Driver | |||||
 | 8745-STK-KIT Picomotor Motion Controller Accessories Stacking Plate Kit, L-Shaped,8742 and 8743-CL Controller/Driver | |||||
 | 8745-USB-CBL Picomotor Motion Controller Accessories USB Cable, 3 Meters Length, 8742 and 8743-CL Controller/Driver | |||||
 | 8758-MTG-KIT Picomotor Motion Controller Accessories Mounting Plate Kit, Optical Table, 8758 Hand Control Pad |
Features
Picomotor Power Supplies and Cables

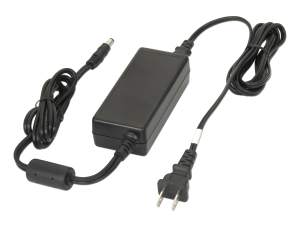

The 8745-PS Controller/Driver is a Power Supply used for powering the controller/driver modules. The 8745-PS can run up to three 8742 controller/driver modules at once. The 8745-PWR-CBL is a power cable used for linking multiple controller/driver modules in power. It is six inches in length.
USB and RS-485 Cables

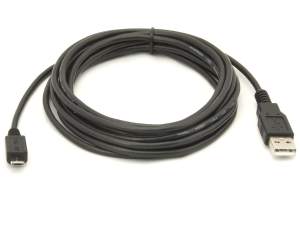

The 8745-USB-CBL is a USB cable used for connecting the controller/driver module to your computer for control. It is three meters in length. The 8745-RS485-CBL is a RS-485 Cable used for connecting controller/driver modules to each other. It is six inches in length.
Multi-Axis Adapter

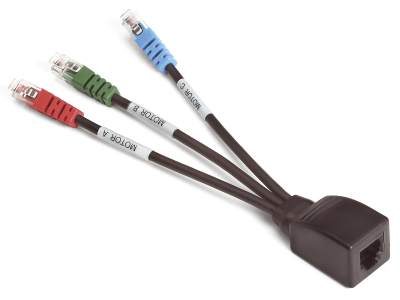

The 8725 enables multi-axis Picomotor™ actuator-driven devices with RJ-11 (6 pin) connector cables to be used with the Picomotor Controller/Drivers. It comes with one RJ-11 (6 pin) jack and three RJ-22 (4 pin) connectors.
L-Shaped Picomotor Controller Stacking Plate Kit

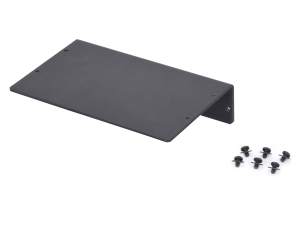

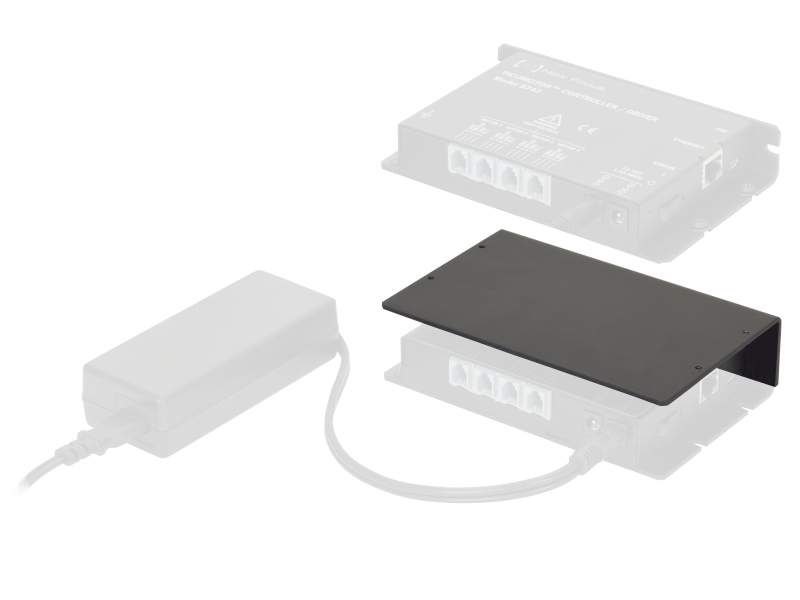

The 8745-STK-KIT includes a mounting bracket and screws for stacking multiple controller/driver modules.
Picomotor Controller Optical Table Mounting Plate Kit
The 8745-MTG-KIT includes a mounting plate and 1/4-20 screws for securing your controller/driver module onto your non-metric optical table. The mounting plate allows the controller/driver to be mounted either horizontally or vertically.
