Polarcor™ Dichroic Glass Linear Polarizers

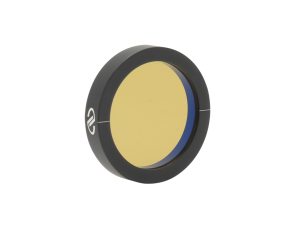

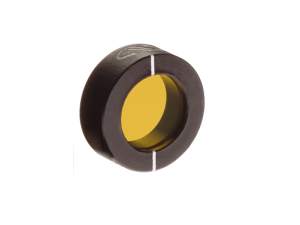

Polarcor™ linear polarizers offer high contrast, high transmission, low wavefront distortion and a wide acceptance angle. The polarizing material – a borosilicate glass with aligned silver particles – is coated with a broadband anti-reflection coating and mounted in a 0.5- or 1-in. diameter aluminum housing. Polarcor polarizers outperform dichroic sheets, wire grid polarizers and polarizing cubes while being less expensive than calcite polarizers.
- Extinction ratio better than 10,000:1
- Wide acceptance angle
- Low wavefront distortion
- High transmission See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 05P009AR.14 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 630-700 nm, 12.7 mm | |||||
| 05P109AR.16 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 740-860 nm, 12.7 mm | |||||
| 05P309AR.16 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 960-1160 nm, 12.7 mm | |||||
 | 05P409AR.18 Polarcor Dichroic Glass Linear PolarizersPolarcor Linear Polarizer, 12.7 mm, 8.1 mm Clear, 94%, 1270-1340 nm | Discontinued | ||||
| 05P509AR.18 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 1500-1580 nm, 12.7 mm | |||||
 | 10P009AR.14 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 630-700 nm, 25.4 mm | |||||
| 10P109AR.16 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 740-860 nm, 25.4 mm | |||||
| 10P309AR.16 Polarcor Dichroic Glass Linear PolarizersLinear Polarizer, Polarcor, 10,000:1, 960-1160 nm, 25.4 mm | |||||
Mounting Options
Manual Rotation Mounts
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | UPA-RM1A | RM25A | RM25B | OC1-PR | M1-1PR GM-1RA |
(M-) RS65 |
| Retaining Thread | 1.063-20 | |||||
| Compatible Optic Diameter* | 25.4 mm 12.7 mm (PRA-05) |
|||||
| Special Features | 1 in. Mirror Mounts Compatibility | OpticsCage+™ Compatibility | Tip&Tilt Adjustments | Fine Adjustments | ||
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | (M-) MT-RS | 9401 (-M) | (M-) LH-1PR | (M-) 481-A (M-) 481-A-S |
RSP-2T RSP-1T |
LM2-R LM1-R |
| Retaining Thread | 0.546-32 | 1.040-32 | 1.035-40 | 1.063-20 | 2.063-20 1.063-20 |
– |
| Compatible Optic Diameter* | 12.7 mm | 25.4 mm | 25.4 mm 12.7 mm (PRA-05) |
50.8 mm 25.4 mm 12.7 mm (PRA-05) |
50.8 mm (LH2-2R) 38.1 mm (LH2-1.5R) 25.4 mm (LH1-1R) 12.7 mm (LH1-0.5R) 6.35 mm (LH1-0.25R) |
|
| Special Features | Compact | Stackable | A-Line™ Compatibility | Fine Adjustments | Quick Exchange | |
Motorized Rotation Mounts
 |
 |
 |
 |
|
|---|---|---|---|---|
| Models | 8410 | (CONEX-) AG-PR100 (V6) | SR50PP PR50PP (CONEX-) SR50CC (CONEX-) PR50CC |
8401 (-M) |
| Retaining Thread | 1.040-32 | 1.063-20 | 1.563-20 | |
| Compatible Optic Diameters* | 25.4 mm | 25.4 mm 12.7 mm |
||
*The adapter in parentheses is required for the optic size before it.
Features
Black Anodized Aluminum Mounting Ring

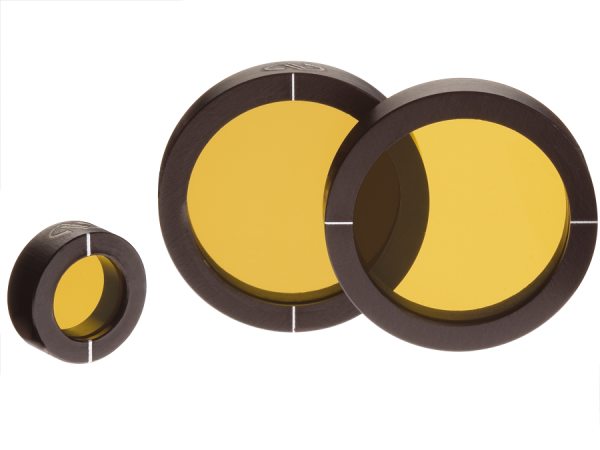

The 0.5 mm thick polarizer is mounted in a black anodized aluminum housing for protection and ease of handling. The standard 12.7 and 25.4 mm outer diameters are convenient for mounting into Newport’s rotary mounts. Each black anodized aluminum housing is marked on the front with reference marks, indicating the direction of the transmission axis.
630-700 nm Wavelength Range
Our xxP009AR.14 polarizers are recommended for 630-700 nm wavelength applications. These polarizers are coated with AR.14 antireflection coating to increase the principle transmission to 79% in the designed wavelength range.
740-860 nm Wavelength Range
Our xxP109AR.16 polarizers are recommended for 740-860 nm wavelength applications. These polarizers are coated with AR.16 antireflection coating to increase the principle transmission to 89% in the designed wavelength range.
960-1160 nm Wavelength Range
Our xxP309AR.16 polarizers are recommended for 960-1160 nm wavelength applications. These polarizers are coated with AR.16 antireflection coating to increase the principle transmission to 90% in the designed wavelength range.
1500-1580 nm Wavelength Range
Our 05P509AR.18 polarizer is recommended for 1500-1580 nm wavelength applications. This polarizer is coated with AR.18 antireflection coating to increase the principle transmission to 94% in the designed wavelength range.
