Polarization Beam Combiner/Splitter
Polarization Beam Combiner/Splitter

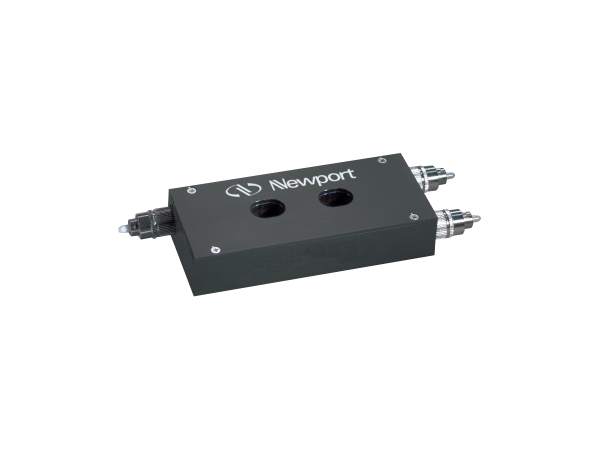

Newport's F-PBC Series Polarization Beam Combiner/Splitters can be used to combine light from two PM input fibers into a single SMF-28 output fiber, or to separate the orthogonal polarization components of an input signal between two output fibers.
- High Power Handling
- Low Insertion Loss
- Rugged No-Pigtail Design See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-PBC-15-PM-FP Polarization Beam Combiner and Splitter Polarization Beam Combiner, Splitter, 1550 nm, PM Input, FC/PC. | |||||
| F-PBC-15-SM-FA Polarization Beam Combiner and Splitter Polarization Beam Combiner, Splitter, 1550 nm, SMF-28 Input, FC/APC. | |||||
| F-PBC-15-SM-FP Polarization Beam Combiner and Splitter Polarization Beam Combiner, Splitter, 1550 nm, SMF-28 Input, FC/PC. |
Features
Rugged Bulkhead Design
These rugged devices are designed with bulkhead connectors (no fiber pigtails). Without pigtails, these device make handling much easier as users do not need to worry about fragile fibers. We also minimize the fiber length inside the device to nearly eliminate environmental effects.
Superior Performance
These devices feature best in class performance in insertion loss, back reflection, and extinction ratio - all at an attractive price. They have a wide operation bandwidth and high power handling capability as well.
Applications
- EDFA and Raman Amplifiers
- Polarization Division Mux/DeMux
- R & D
- Fiber Sensor Systems
- Fiber Laser Systems
