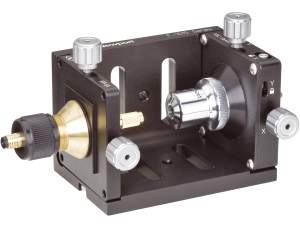

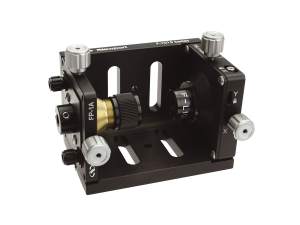

Our F-1015 Precision Single-Mode Fiber Coupler works to couple visible, free-space laser light in the core of a single mode fiber with 0.1 µm beam positioning resolution. An input iris makes these couplers even easier to align, centering the laser beam on the steering lens, which is mounted in a precision X-Y translation assembly with 100 pitch adjustment screws. This causes a second-order translation of the focused beam across the fiber end-face, with negligible changes of incident angle at the fiber face. The steering lens included is model M-20X Microscope Objective with multilayer dielectric AR coating and 9 mm effective focal length. The whole system is housed in compact, anodized aluminum frame.

These systems are sold without fiber chucks to provide compatibility to the largest range of fiber diameters. For optimal performance, a collimated beam should be incident on the coupler, easily achievable with a variety of Newport's Fiber Coupling Optics. The FPH-J four-jaw fiber chuck has Teflon lining, made for < 250 µm diameter fibers while the Model FPH-DJ Delrin-jawed chuck houses fibers 300 µm - 1 mm. The FPH-S and FPH-S-2.5 are slotted fiber chucks for fibers between 80 µm and 200 µm.
