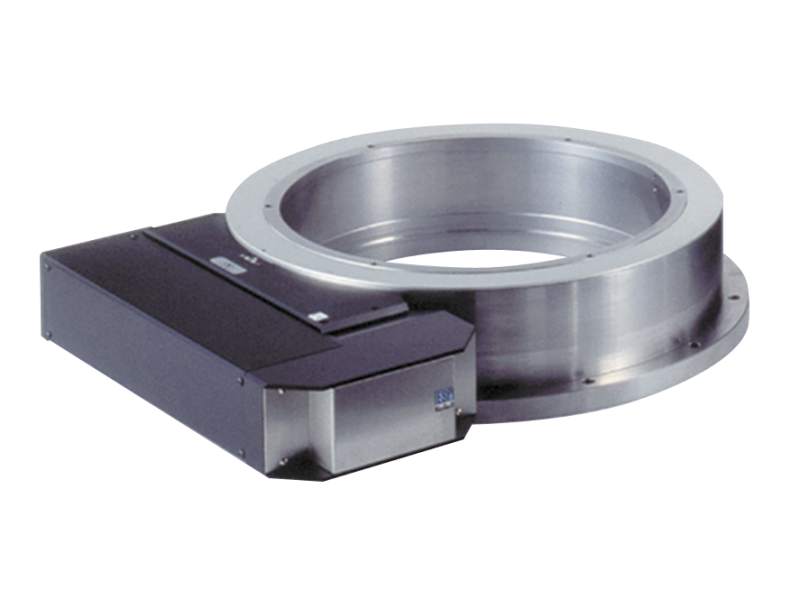

RV High Performance Stepper Motor Rotation Stages

The RV Series steel rotation stages combine high precision positioning and extremely high load capacities to operate in a large variety of conditions for scientific and industrial applications. Five stage sizes and two stepper motor configurations are available, as are vacuum compatible versions. For applications requiring the highest torque, the BPE stepper motor version is recommended. Also, open-loop stepper motors can be a lower cost alternative to certain closed-loop DC servo systems.

Ideal for high load applications with up to 6500 N load and torque capacity of 80 N·m
All steel, single monolithic construction offers high stiffness and thermal stability
Double row preloaded ball bearings allow for high off-center loads in a reduced footprint
Precision ground and hardened worm gear with self-compensating preload
Lower cost alternative to certain closed-loop DC servo systems

See All Features

Description	Compatibility	Avail.	Price
RV120BPE RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 120 mm, High-Torque Full-Step Drive	IMPERIAL		$9,991
RV120BPEV6 RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 120 mm, High-Torque Full-Step Drive, Vacuum	UNIVERSAL		$13,808
RV120BPP RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 120 mm, High-Torque Mini-Step Drive	UNIVERSAL		$9,102
RV120PE RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 120 mm, High-Torque Full-Step Drive	UNIVERSAL	Discontinued
RV120PEBV6 RV High Performance Stepper Motor Rotation StagesVacuum High Torque Rotation Stage, 120 mm, Full-Step Drive	UNIVERSAL	Discontinued
RV160BPP RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 160 mm, High-Torque Mini-Step Drive	UNIVERSAL		$11,327
RV160PEV6 RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 160 mm, High-Torque Full-Step Drive, Vacuum	UNIVERSAL	Discontinued
RV240PEV6 RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 240 mm, High-Torque Full-Step Drive, Vacuum	UNIVERSAL	Discontinued
RV350PEV6 RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 350 mm, High-Torque Full-Step Drive, Vacuum	UNIVERSAL	Discontinued

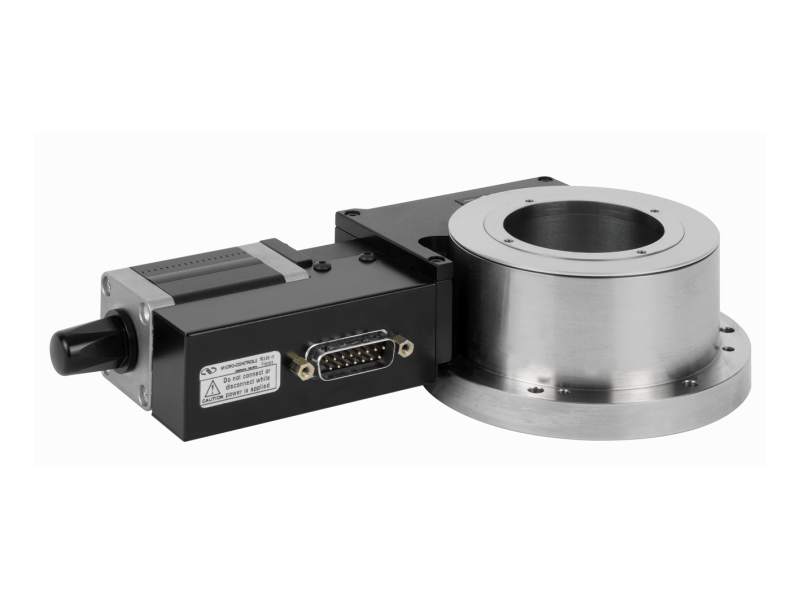

RVS80PP RV High Performance Stepper Motor Rotation StagesMotorized Rotation Stage, 80 mm, Stepper Drive	UNIVERSAL		$6,341

Show All

Compatible Controllers

Compatible motion controllers for these stepper motor driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
ESP302 Motion Controller (1, 2, or 3 Axis): Plug and Play compatible with ESP302 Motion Controller.

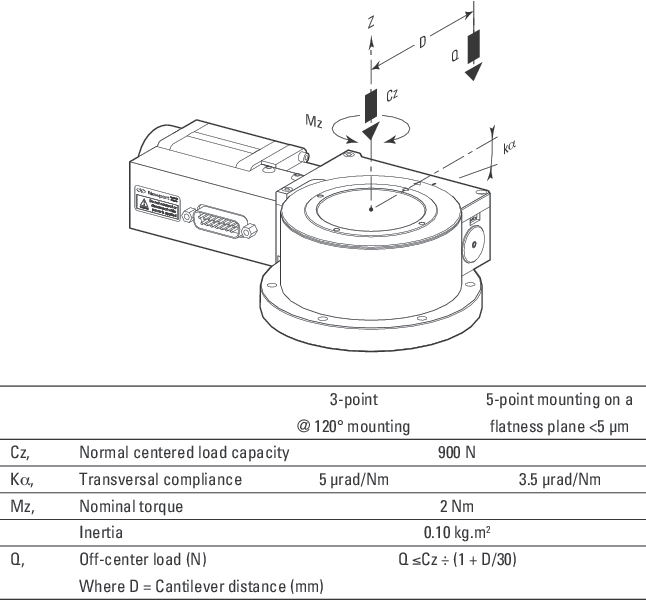

For RVS80PP only, SMC100PP* Single Axis Motion Controller: 0.50 mdeg MIM when used with SMC100PP.

Features

Steel Construction

The tool steel construction ensures enhanced rotation accuracy due to the ground bearing surfaces. The single monolithic design offers improved stiffness and thermal stability without compromising dynamic performance.

Highest Load Capacity

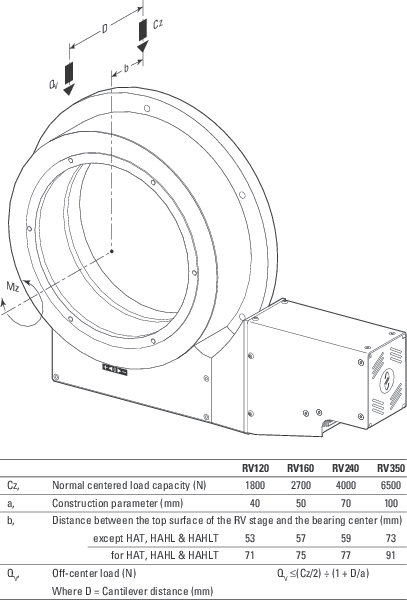

The double row of preloaded ball bearings allows for higher off center loads for its small footprint. The largest member of the RV stepper motor product family can bear up to 650 kg or rotate up to 20 °/s while maintaining eccentricity of less than 4 µm.

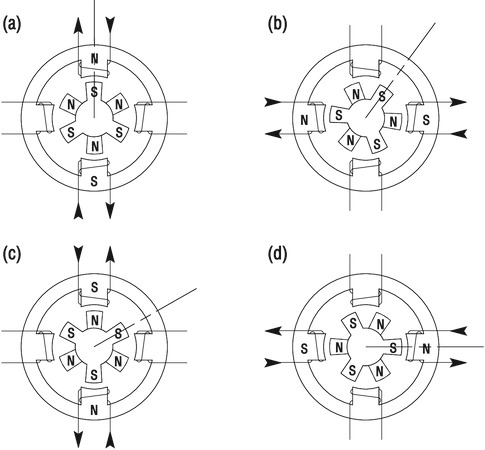

Full-Step and Mini-Step Stepper Motors

Full-step (BPE and PE) and mini-step (BPP and PP) versions of the RV stepper motor stages are available. The full-step version is equipped with a reduction gear to obtain higher torque and is primarily designed for applications requiring the direct positioning accuracy to be maintained to within the stage's mechanical resolution when power is switched off. The mini-step versions offer a 1/10-step per encoder count, enabling speed of up to 20°/sec. With the exception of the RVS80PP, these stages feature a worm-mounted rotary encoder for improved accuracy and repeatability and to detect motor stalling, an important feature for applications with high acceleration ramps and high torques or payload inertias. For the RVS80PP, position is attained by the number of commanded steps and micro-steps.

Vacuum Compatible Versions

Vacuum compatible verions of the RV series full-step stepper motor stages are available. They can be used in vacuum environment down to 10^-6 hPa. Check out our vacuum products brochure for more information. Contact us today to discuss your application requirements.

Configurable Limit Switches

Most of the RV models are designed with optical limit switches to limit movement to 170°. These can be enabled or disabled for complete 360° motion with a simple "Allen" wrench.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
