Laminated Sheet Linear Polarizers
Laminated Sheet Linear Polarizers
Our general-purpose sheet polarizers are perfect for those in-between times when you need a polarizer with a large aperture and acceptance angle, but you don’t need the high extinction ratio or the expense of a calcite polarizer.
- Great value for low power 450-750 nm applications
- 4000:1 extinction ratio
- Large clear aperture See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

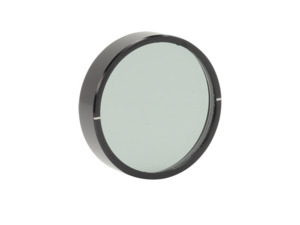

 | 5511 Laminated Sheet Linear PolarizersLinear Polarizer, Polarizer Sheet, 4000:1, 450-750 nm, 25.4 mm |
Mounting Options
Manual Rotation Mounts
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | UPA-RM1A | RM25A | RM25B | OC1-PR | M1-1PR GM-1RA |
(M-) RS65 |
| Retaining Thread | 1.063-20 | |||||
| Compatible Optic Diameter* | 25.4 mm 12.7 mm (PRA-05) |
|||||
| Special Features | 1 in. Mirror Mounts Compatibility | OpticsCage+™ Compatibility | Tip&Tilt Adjustments | Fine Adjustments | ||
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
| Models | (M-) MT-RS | 9401 (-M) | (M-) LH-1PR | (M-) 481-A (M-) 481-A-S |
RSP-2T RSP-1T |
LM2-R LM1-R |
| Retaining Thread | 0.546-32 | 1.040-32 | 1.035-40 | 1.063-20 | 2.063-20 1.063-20 |
– |
| Compatible Optic Diameter* | 12.7 mm | 25.4 mm | 25.4 mm 12.7 mm (PRA-05) |
50.8 mm 25.4 mm 12.7 mm (PRA-05) |
50.8 mm (LH2-2R) 38.1 mm (LH2-1.5R) 25.4 mm (LH1-1R) 12.7 mm (LH1-0.5R) 6.35 mm (LH1-0.25R) |
|
| Special Features | Compact | Stackable | A-Line™ Compatibility | Fine Adjustments | Quick Exchange | |
Motorized Rotation Mounts
 |
 |
 |
 |
|
|---|---|---|---|---|
| Models | 8410 | (CONEX-) AG-PR100 (V6) | SR50PP PR50PP (CONEX-) SR50CC (CONEX-) PR50CC |
8401 (-M) |
| Retaining Thread | 1.040-32 | 1.063-20 | 1.563-20 | |
| Compatible Optic Diameters* | 25.4 mm | 25.4 mm 12.7 mm |
||
*The adapter in parentheses is required for the optic size before it.
Features

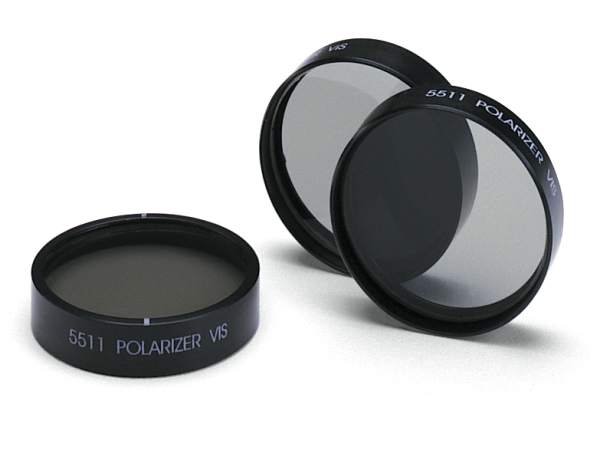

Black Anodized Aluminum Housing
The polarizer assembly is mounted in a black anodized aluminum housing for protection, with the transmission axis clearly marked. The standard one inch diameter makes mounting easy into any Newport rotation stage such as the RSP-1T or the 481-A.
4000:1 Extinction Ratio

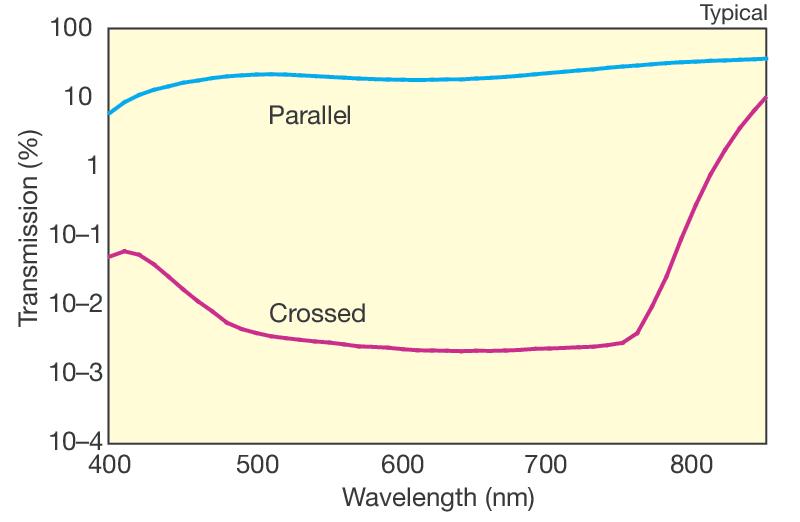

The laminated structure of these polarizers makes them durable and perfect for low-power 450-750 nm applications. Transmission through two Model 5511 polarizers is shown as a function of wavelength.
