Smooth-bore Micrometer Heads
Smooth-bore Micrometer Heads

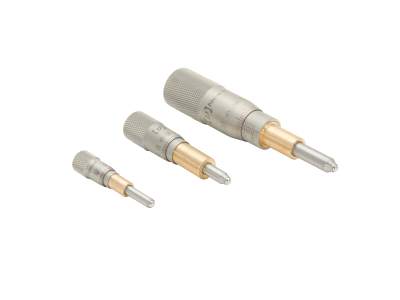

These high-quality micrometers feature a smooth-bore, unthreaded mounting shank with industry standard dimensions for use with slip-in, clamp style mounts like those found on New Focus stages.
- Unthreaded mounting shank
- Compatible with New Focus 9061, 9062, 9063 stages
- Designed for clamp-style or adhesive mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9351 Smooth-bore Micrometer HeadsMicrometer, 0.25 in. Travel, Unthreaded, 100 TPI High-Resolution | |||||

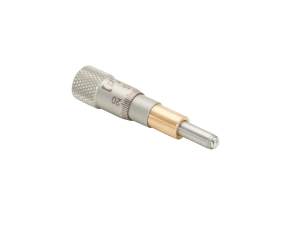

 | 9354 Smooth-bore Micrometer HeadsMicrometer, 0.25 in. Travel, Unthreaded, For 9061 Series Stages | |||||

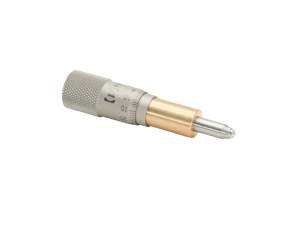

 | 9355 Smooth-bore Micrometer HeadsMicrometer, 0.5 in. Travel, Unthreaded, For 9062 Series Stages | |||||

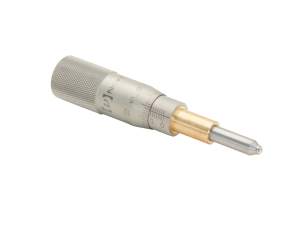

 | 9356 Smooth-bore Micrometer HeadsMicrometer, 1.0 in. Travel, Unthreaded, For 9063 Series Stages | |||||
 | SM-06 Smooth-bore Micrometer HeadsMicrometer, 6 mm Travel, Unthreaded, Vernier |
Specifications
Features

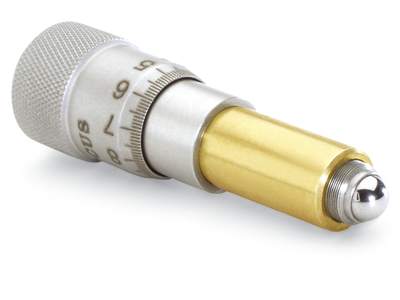

High-Resolution Micrometer Head
The 9351 high-resolution 100-TPI micrometer screw features a smooth-bore unthreaded mounting shank and is intended for incorporation in OEM application. The micrometer mounting shank is designed for bonding into 0.345 +/-0.001 inch (8.8 +/-0.03 mm) diameter holes.
Compatible with Gothic Arch Stages

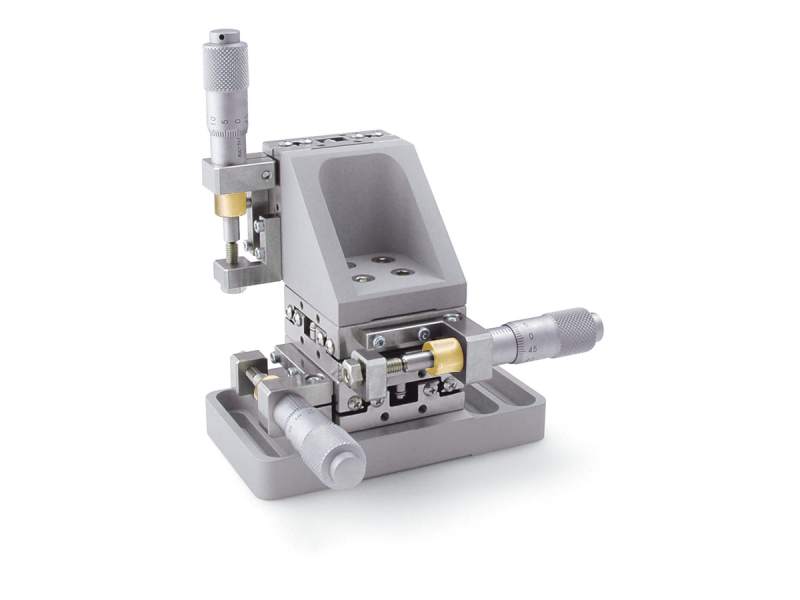

The 9354 offers 0.25 inch travel and is ideal for New Focus 9061 series linear stages. The 9355 offers 0.5 inch travel and is ideal for New Focus 9062 series linear stages. The 9356 offers 1.0 inch travel and is ideal for New Focus 9063 series linear stages.
