Stainless Steel Slotted Bases
Stainless Steel Slotted Bases
Slotted base plates enable easy and accurate XY horizontal positioning adjustment of post-mounted optical components. Compatible with 0.5 in. (12.7 mm) diameter optical post holders, these stainless steel plates offer increased stiffness and thermal stability over conventional materials. A unique 0.5 in. (12.7 mm) index grid pattern assists alignment, while thumb screw or bolt mounting through slots allow for one or two axis translation and rigid lock down. Also included are counterbored clearance holes for mounting post holders, rails, and a variety of other components.
- Index markings to assist alignment
- Controlled coarse positioning
- Compatible with rail and table mounting systems
- Relief cut on bottom surface ensures maximum stability See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

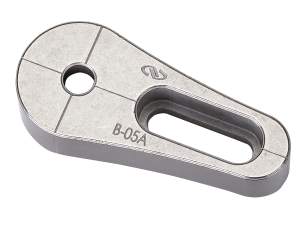

 | B-05A Stainless Steel Slotted BasesSlotted Base, 0.68 in. Range Single Slot, Stainless Steel | |||||

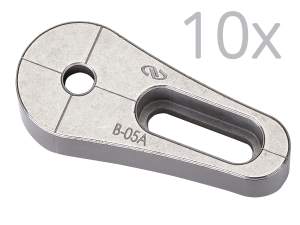

 | B-05A-PK Stainless Steel Slotted BasesSlotted Base Pack, 0.68 in. Range Single Slot, Stainless Steel, Qty 10 | |||||

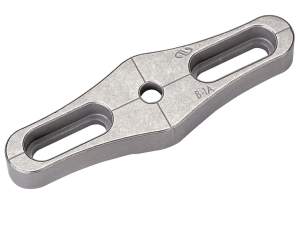

 | B-1A Stainless Steel Slotted BasesDouble Slotted Base, 0.68 in. Range, Stainless Steel | |||||
| B-1A-PK Stainless Steel Slotted BasesDouble Slotted Base Pack , 0.68 in. Range, Stainless Steel, Qty 10 | |||||

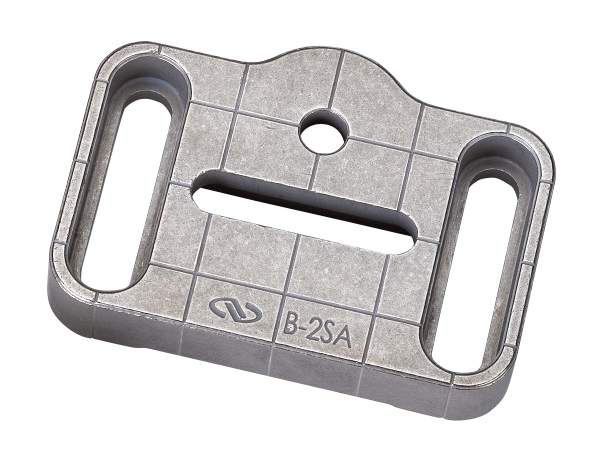

 | B-2SA Stainless Steel Slotted BasesDouble-Slotted Base, Stainless Steel, XY, 1.0 in. Range | |||||

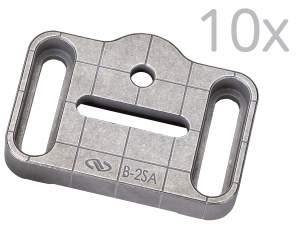

 | B-2SA-PK Stainless Steel Slotted BasesXY Double-Slotted Base Pack, Stainless Steel, 1.0 in. Range, Qty 10 |
Features

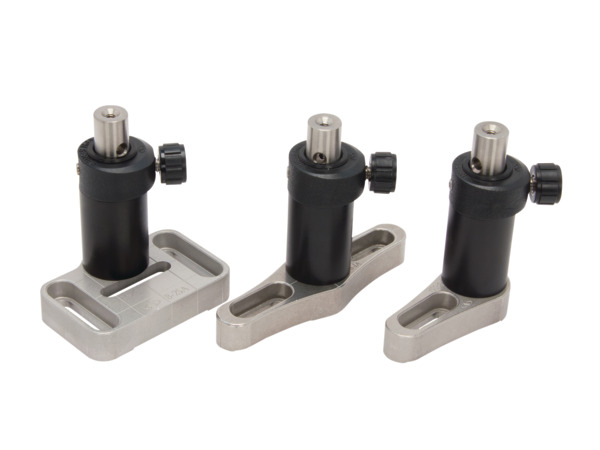

Position Post Holders
These slotted bases provide slot-guided linear positioning for post mounted optical mounts making them ideal for basic alignment.
Index Grid Pattern for Ease of Alignment

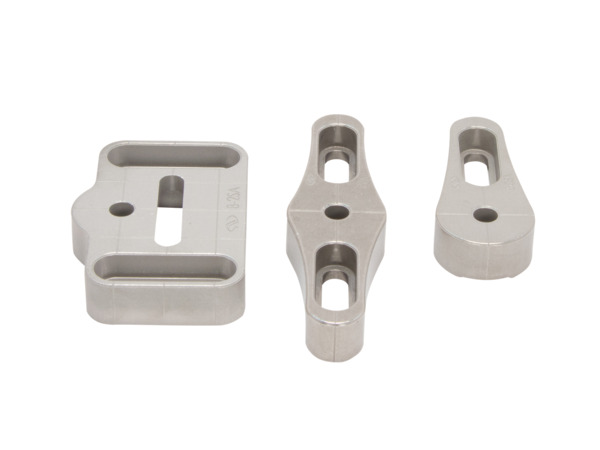

Each of the three models incorporates a unique 0.5 in. (12.7 mm) index grid pattern to assist in more accurate alignment.
Stainless Steel for Increased Stiffness & Thermal Stability
Stainless steel offer increased stiffness and higher thermal stability over aluminum bases. Since most optical tables are made from stainless steel, the coefficients of thermal expansion also match up.
