Optical Table Earthquake Restraints

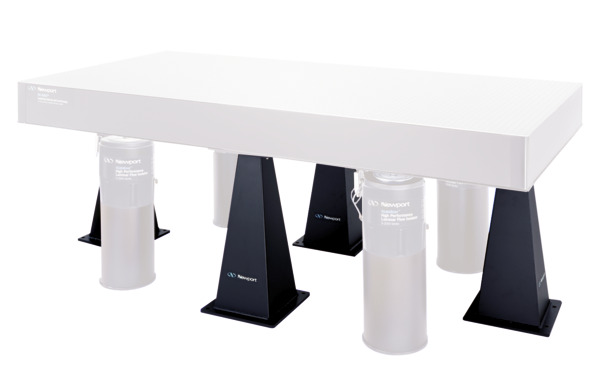

ERS2010 Earthquake Restraint system is designed to restrict the motion of Newport Optical Tables in the event of an earthquake.

2018 International Building Code (IBC) and 2019 California Building Code (CBC)
Does not affect optical table performance
Set of Four Earthquake restraints can withstand an 8000 lb (3636 kg)
Custom heights and configurations available

See All Features

Description	Compatibility	Price
ERS2010-116 Table Earthquake RestraintsEarthquake Restraint, Optical Table, 16 in., Requires Mounting Kit	UNIVERSAL	$1,162
ERS2010-119.5 Table Earthquake RestraintsEarthquake Restraint, Optical Table, 19.5 in., Requires Mounting Kit	UNIVERSAL	$1,162
ERS2010-122 Table Earthquake RestraintsEarthquake Restraint, Optical Table, 22 in., Requires Mounting Kit	UNIVERSAL	$1,162
ERS2010-123.5 Table Earthquake RestraintsEarthquake Restraint, Optical Table, 23.5 in., Requires Mounting Kit	UNIVERSAL	$1,162
ERS2010-128 Table Earthquake RestraintsEarthquake Restraint, Optical Table, 28 in., Requires Mounting Kit	UNIVERSAL	$1,162
ERS2010-316 Table Earthquake RestraintsEarthquake Restraint Set, 16 in., Requires Mounting Kit, Qty 3	UNIVERSAL	$3,189
ERS2010-319.5 Table Earthquake RestraintsEarthquake Restraint Set, 19.5 in., Requires Mounting Kit, Qty 3	UNIVERSAL	$3,189
ERS2010-322 Table Earthquake RestraintsEarthquake Restraint Set, 22 in., Requires Mounting Kit, Qty 3	UNIVERSAL	$3,189
ERS2010-323.5 Table Earthquake RestraintsEarthquake Restraint Set, 23.5 in., Requires Mounting Kit, Qty 3	UNIVERSAL	$3,189
ERS2010-328 Table Earthquake RestraintsEarthquake Restraint Set, 28 in., Requires Mounting Kit, Qty 3	UNIVERSAL	$3,189

Show All

Features

Sturdy Protection for Your System

The earthquake loads due to movement of the table and payload are transferred into the concrete floor by eight (8) anchor bolts per Earthquake Restraint. The anchor bolts (Hilti HIT RE500 SD per ICC ESR2322, 3/8 in. diameter bolts and HIS-N inserts embedded 4-3/8”) are designed for use in concrete floors at least 6 inches (150 mm) thick constructed of 2,500 psi (17.3 megapascal) minimum normal-weight concrete in an uncracked condition. If any of these conditions are not met, additional analysis and detailing by a structural engineer will be required. The earthquake loads are distributed into the optical table bottom skin by eight (8) M6-1.0 socket head cap screws pre restraint.

System Requirements

Each ERS2010 is rated for seismic forces generated by a maximum of 2000 pounds (908 Kg.) of combined table and payload weight per restraint. However, in order to prevent possible tipping of a table during or after an earthquake, three or more ERS2010 Restraints - located as far apart as possible at the perimeter of the table system - must be used even though the load per ERS2010 is less than the specified maximum. The ERS2010 Earthquake Restraint system is intended to work in conjunction with Newport S-2000 or I-2000 pneumatic isolators with rated load capacity 2000 lbs. The ERS2010 is designed to withstand the earthquake loads corresponding to, or lower than, the 2018 IBC seismic accelerations Ss=2.50, S1=1.00 (for example, Hayward, CA). The design of the Restraint is in compliance with 2018 International Building Code (IBC) and 2019 California Building Code (CBC).

Accessories

Earthquake Restraint Mounting Kits

Description	Compatibility	Price
ERS2010-1-KT-A Mounting Kit, Earthquake Restraint, Mounting Hardware & Epoxy	UNIVERSAL	$389
ERS2010-1-KT-B Mounting Kit, Earthquake Restraint, Mounting Hardware, No Epoxy	UNIVERSAL	$239
ERS2010-3-KT Mounting Kit, Three Earthquake Restraints, Mounting Hardware & Epoxy	UNIVERSAL	$781
ERS2010-4-KT Mounting Kit, Four Earthquake Restraints, Mounting Hardware & Epoxy	UNIVERSAL	$977
MD2500 Epoxy Dispenser, Manual	UNIVERSAL	$266
