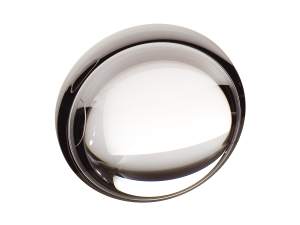

Uncoated UV Fused Silica Bi-Convex Lenses
Uncoated UV Fused Silica Bi-Convex Lenses
Our uncoated UV fused silica precision bi-convex (double-convex) lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion for demanding laser focusing applications.
- Uncoated double-convex shape for focusing applications
- UV grade fused silica substrates
- ≤λ/8 surface irregularity, 20-10 scratch-dig
- Standardized focal lengths across different lens sizes
- Double-Convex shape for focusing applications See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 39323 Uncoated UVFS Bi-Convex LensesBi-Convex Focusing Lens, 38.1 mm, Fused Silica, 51 mm EFL, Uncoated | |||||
 | SBX013 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 12.7 mm Diameter, 12.7 mm EFL, Uncoated | |||||
| SBX016 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 12.7 mm Diameter, 25.4 mm EFL, Uncoated | |||||
 | SBX018 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 20.0 mm EFL, Uncoated | |||||
| SBX019 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 25.4 mm EFL, Uncoated | |||||
| SBX020 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 32.0 mm EFL, Uncoated | |||||
| SBX022 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 50.2 mm EFL, Uncoated | |||||
| SBX025 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 75.6 mm EFL, Uncoated | |||||
| SBX028 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 100 mm EFL, Uncoated | |||||
| SBX031 Uncoated UVFS Bi-Convex LensesBi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, Uncoated |
Mounting Options
We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.
Note: besides the diameter, please check the Edge Thickness (Te) specification of the lens and the lens mount to ensure compatibility before purchasing.
| Lens Diameter |  A-Line™ Lens Mounts |
 LT Series Lens Tubes |
 LP Series Lens Positioners |
 Optics Cage Plus Series |
|---|---|---|---|---|
| 76.2 mm | (M-) LH-3A | N/A | N/A | N/A |
| 50.8 mm | (M-) LH-2A LH-2N |
LT20-05 LT20-10 LT20-20 LT20-30 |
LP-2A LP-2A-XY LP-2A-XYZ |
N/A |
| 38.1 mm | (M-) LH-1.5A | LT20 lens tube with LH-2R1.5 adapter |
LP-2 lens positioner with LPLH-1.5T adapter |
N/A |
| 25.4 mm | (M-) LH-1A LH-1N LH-1XY LH-1TZ-A LH-1TZ |
LT10-05 LT10-10 LT10-20 LT10-30 |
LP-1A LP-1A-XY LP-1A-XYZ |
OC1-LH1-S OC1-LH1 OC1-LH1-TZ OC1-LH1-XY OC1-LH1-XYA OC1-LH1-XYC OC1-LH1-XYZ |
| 12.7 mm | (M-) LH-0.5A LH-05N |
LT05-05 LT05-10 |
LP-05A LP-05A-XY LP-05A-XYZ |
N/A |
| 6.35 mm | LH-05DB with LH-50R25 adapter |
LT05 lens tube with LH-50R25 adapter |
LP-05 lens positioner with LPLH-25T adapter |
N/A |
For non-standard sizes not listed above, check out our variable size lens mounts.
Features
UV Fused Silica Substrates for UV, Laserline & Broadband Applications
UV Grade Fused Silica is synthetic amorphous silicon dioxide of extremely high purity providing maximum transmission from 195 to 2100 nm. This non-crystalline, colorless silica glass combines a very low thermal expansion coefficient with good optical qualities, and excellent transmittance in the ultraviolet region. Transmission and homogeneity exceed those of crystalline quartz without the problems of orientation and temperature instability inherent in the crystalline form. It will not fluoresce under UV light and is resistant to radiation. For high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage. For more information, refer to our optical materials Technical Note
Standardized Bi-Convex Focal Lengths
Standard effective focal lengths on our double-convex lenses provide a systematic approach allowing for lenses of different sizes and materials to be interchanged without requiring other changes to your optical system.
Bi-Convex Lens Shape for Focusing
Bi-Convex lenses are the best choice when the object and image are at equal or near equal distance from the lens. When the object and image distance are equal (1:1 magnification), not only is spherical aberration minimized, but also coma, distortion, and chromatic aberration are identically canceled due to the symmetry. Bi-convex lenses function similarly to plano-convex lenses in that they have a positive focal length, and focus parallel rays of light to a point. Both surface are spherical and have the same radius of curvature, thereby minimizing spherical aberration. As a guideline, bi-convex lenses perform within minimum aberration at conjugate ratios between 5:1 and 1:5. Outside this magnification range, plano-convex lenses are usually more suitable.
