URS Series Precision DC Motor Rotation Stages

The URS family of rotation stages provides 360° continuous motion in a low profile package and is suitable for research and industrial applications needing precision performance at an affordable cost. This stage’s closed-loop DC motor system makes it the recommended choice for applications that require higher accuracy and bi-directional repeatability. Also, rotation speeds of up to 80°/sec are available on most models.

Economical, general purpose
Flexible preloading system to guarantee a minimum backlash operation
Tilted worm screw arrangement and 4 symmetric mounting holes provide better support for cantilevered loads with a smaller footprint
Plug and Play – ESP compatible
Ultra-high-resolution encoder feedback provides high accuracy and bi-directional repeatability

See All Features

Description	Compatibility	Price

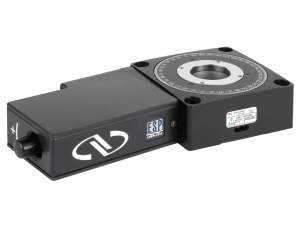

URS100BCC URS Precision DC Motor Rotation StagesMotorized Rotation Stage, DC Motor, Continuous 360° Motion, URS100	UNIVERSAL	$5,665
URS150BCC URS Precision DC Motor Rotation StagesMotorized Rotation Stage, DC Motor, Continuous 360° Motion, URS150	UNIVERSAL	$6,341

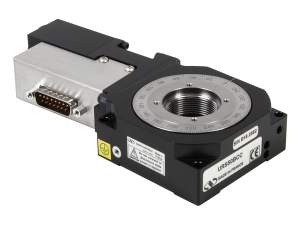

URS50BCC URS Precision DC Motor Rotation StagesMotorized Rotation Stage, DC Motor, Continuous 360° Motion, URS50	UNIVERSAL	$3,849
URS75BCC URS Precision DC Motor Rotation StagesMotorized Rotation Stage, DC Motor, Continuous 360° Motion, URS75	UNIVERSAL	$5,321

Compatible Controllers

Compatible motion controllers for these stepper motor driven stages are:

XPS-RLD Motion Controller (2 or 4 Axis): Requires an XPS-DRV11 Driver Module.
XPS-D Motion Controller (2, 4, 6 or 8 Axis): Requires an XPS-DRV11 Driver Module.
ESP302 Motion Controller (1, 2, or 3 Axis): Plug and Play compatible with ESP302 Motion Controller.
SMC100CC Single Axis Motion Controller.

Specifications

Features

Tilted Worm Screw

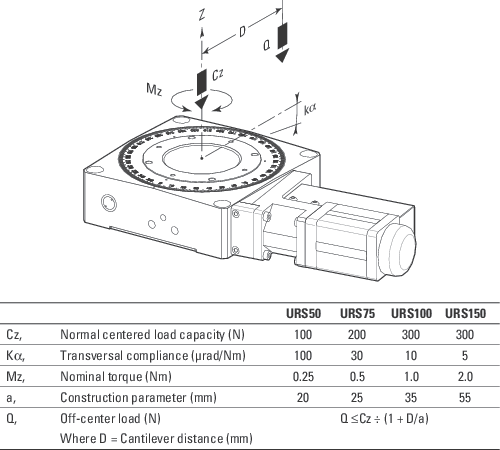

The tilted worm screw arrangement allows for 4 symmetric mounting holes as compared to other designs that only feature 2 or 3 mounting holes. This enables the URS-B stages to provide better support of higher or off-centered loads. Additionally, the flexible preloading system for the worm gear was improved to minimize backlash during operation.

URS50CPP Top View

High Torque DC Motor with Ultra-High Resolution Feedback

The URS75BCC, URS100BCC and URS150BCC feature (not included on the URS50BCC) an ultra-high resolution 8,000 cts/rev rotary encoder with index pulse for precision homing and are recommended for applications requiring accurate bi-directional positioning. For the tightest position control, the rotary encoder is mounted directly on the worm screw. This eliminates most of the possible error sources associated with indirect read feedback devices. The high torque of some DC motor versions provides the highest dynamic speed range and allows for rotating speeds up to 80°/sec. The URS50BCC is the smallest version, and its motor encoder feature provides a very compact and easy to integrate version which can rotate up to 20°/s with 100 N maximum load capacity.

CONEX Controller Version

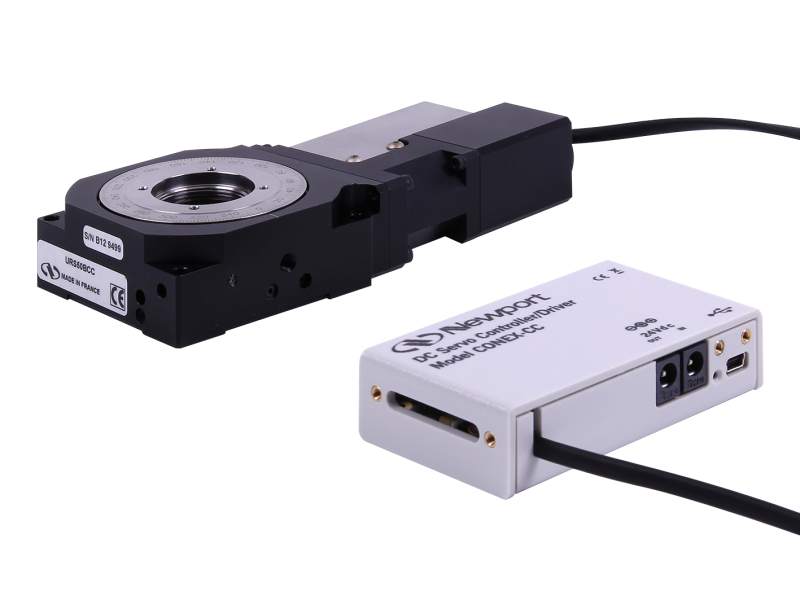

Newport also offers a version of the DC motor, 25.7-mm aperture rotary stage with integrated CONEX controller, the CONEX-URS50BCC. For out-of-the box control, the CONEX controller is preconfigured and delivered with the URS50BCC stage.

Proprietary Ball Bearings

All URS-B rotation stages feature a proprietary ball bearing to provide a low-profile compact stage with exceptional stiffness, high reliability and low wobble and eccentricity.

Limit Switches

Except for the URS50 version, all URS stages feature adjustable limit switches to prevent over travel.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

Accessories

CONEX Version with Integrated Controller

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

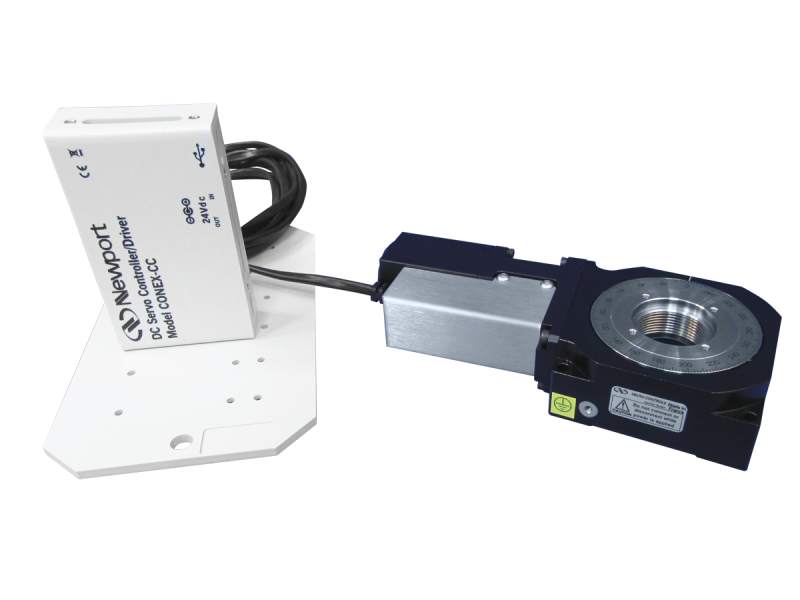

		CONEX-URS50BCC Motorized Rotation Stage, URS50BCC Integrated with CONEX-CC Controller	UNIVERSAL			$4,689

Mounting Accessories

Description	Compatibility	Price
M-URS100TP Mounting Plate, Solid Top, URS100 Series, M6 Threaded Holes	METRIC	$231
M-URS150TP Mounting Plate, Solid Top, URS150 Series, M6 Threaded Holes	METRIC	$316

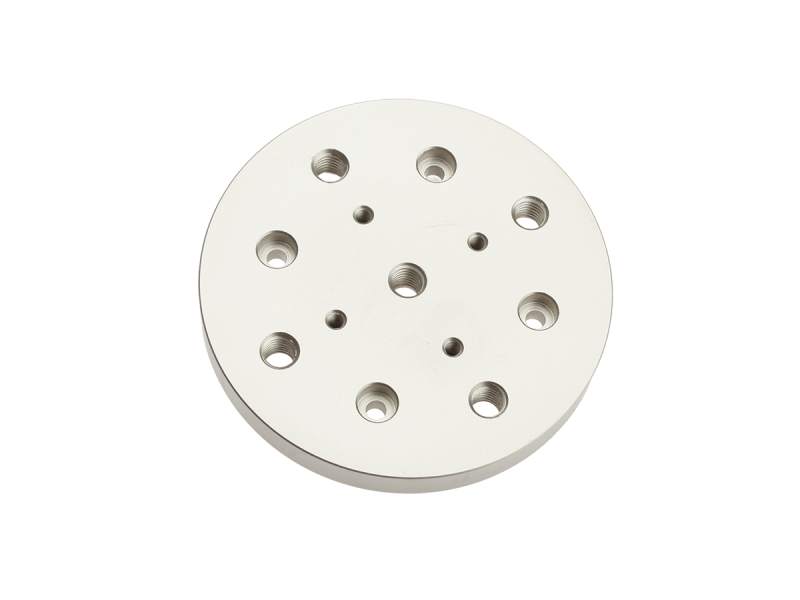

M-URS75TP Mounting Plate, Solid Top, URS75 Series, M6 Threaded Holes	METRIC	$215

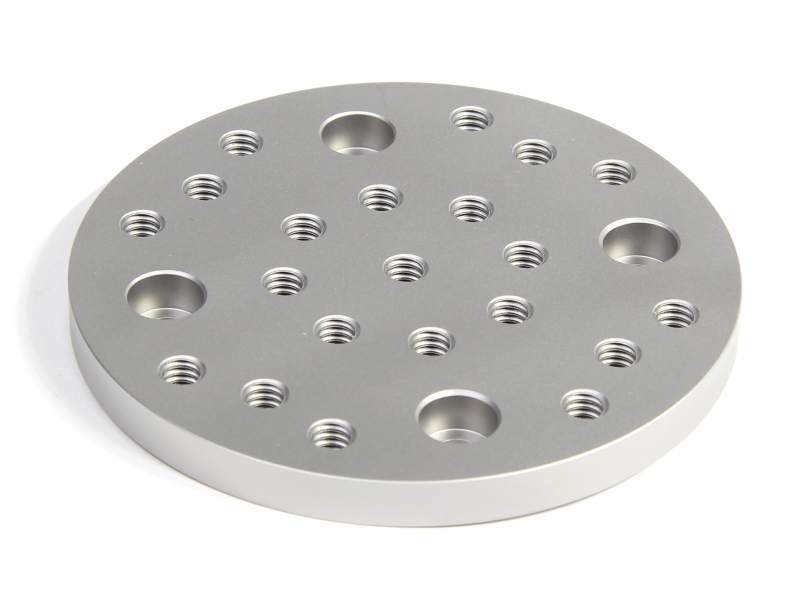

URS100TP Mounting Plate, Solid Top, URS100 Series, 1/4-20 Threaded Holes	IMPERIAL	$231
URS150TP Mounting Plate, Solid Top, URS150 Series, 1/4-20 Threaded Holes	IMPERIAL	$316
URS75P1 Lens Barrel Adapter, B25.4, URS75 Stages	UNIVERSAL	$191
URS75TP Mounting Plate, Solid Top, URS75 Series, 1/4-20 Threaded Holes	IMPERIAL	$215
URSBK 90 Degree Mounting Bracket, URS75, URS100, URS150 Rotation Stages	UNIVERSAL	$648
