Vizix™ Pitch-Axis Flexure Mirror Mounts
Vizix™ Pitch-Axis Flexure Mirror Mounts
Vizix™ pitch-axis mirror mounts are ideal for use in coarse beam splitting or folding applications where space is limited. This compact mount employs a unibody design with a flexure hinge for pitch adjustment.
- Single-axis flexure mechanism pitch adjustment
- Ideal for coarse beam splitting and folding applications
- Rotatable on post holder to keep beam on mirror surface See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

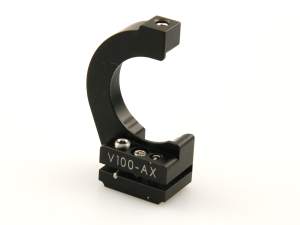

 | V100-AX Vizix™ Pitch-Axis Flexure Mirror MountsFlexure Mirror Mount, Vizix, 1.0 in. Diameter, Locking Hex Pitch Adjuster | |||||

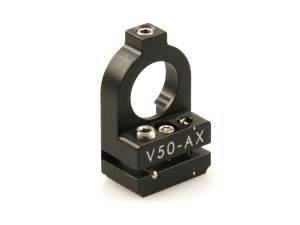

 | V50-AX Vizix™ Pitch-Axis Flexure Mirror MountsFlexure Mirror Mount, Vizix, 0.5 in. Diameter, Locking Hex Pitch Adjuster |
Features
Compact Single Axis Adjustable Mirror Mounts

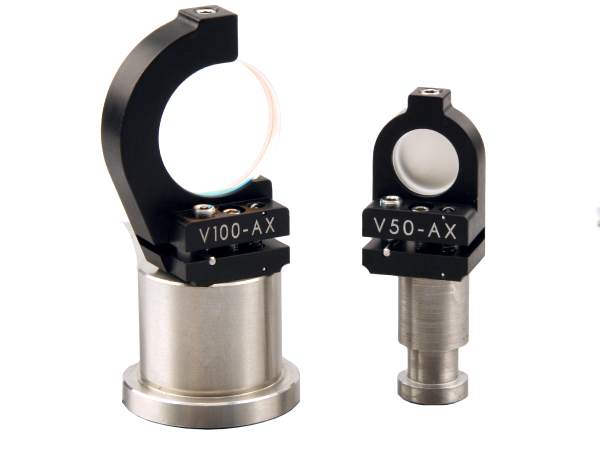

V100-AX and V50-AX Single-Axis Optical Mounts have only pitch adjustment and are ideal for use in coarse beam splitting or folding applications where space is limited. These mounts have the CenterPoint™ optic mounting feature, which means the optic is held at the center of rotation of the mounting post. This allows the user to rotate the mount in the post holder and still keep the optical beam on the mirror's surface. Although these mounts only have pitch adjustment, the fact that they can be rotated in a post holder means they also have yaw adjustability.
Flexure Design Results in Compact Size
The Vizix Flexure Mounts employ a unibody design with a flexure hinge and spring to provide ±4° of pitch adjustment in a compact design. Flexure mounts are especially useful for "set and forget" applications.
Lockable 100-TPI Hex Adjuster
Pitch adjustment is controlled by a 100-TPI hex screw which provides greater adjustment sensitivity over mounts with 80-TPI adjusters. These 100-TPI adjustment threads facilitate more precise fine-tuning, enabling faster and more efficient alignment. A separate locking screw can be used to secure alignment.
