Motorized Linear Stage Finder
Find a motorized stage that meets your travel, speed, MIM, load capacity or other requirements.
| Product Description | Speed Requirement | Travel Range | Maximum Speed | Centered Load Capacity | ||
|---|---|---|---|---|---|---|

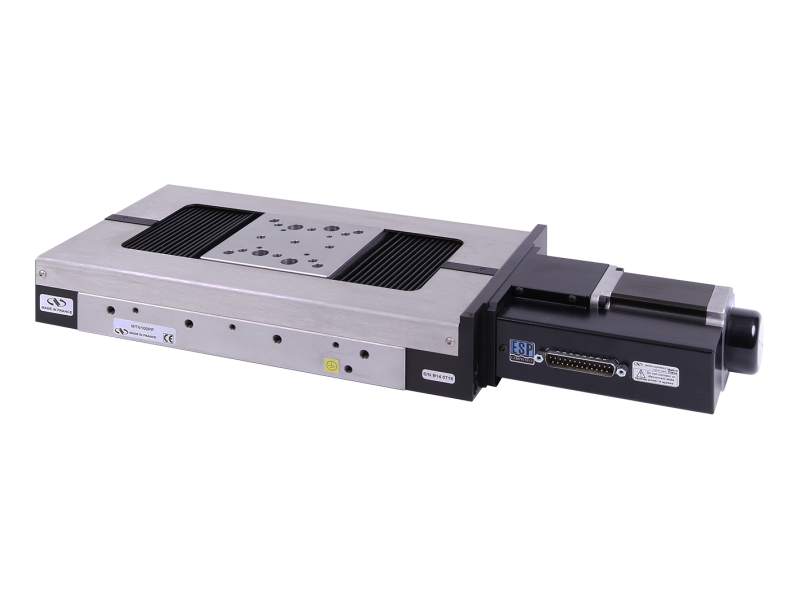

 | MTN100PPMotorized Linear Stage, Steel, Stepper Motor, 100 mm Travel, M4 and M6 | Less than 50 mm/s | 100 mm | 40 mm/s | 1000 N | |
 | MTN100CCMotorized Linear Stage, Steel, DC Motor, 100 mm Travel, M4 and M6 | 50 to 250 mm/s | 100 mm | 100 mm/s | 1000 N | |
 | UTS100PPV6Motorized Linear Stage, Steel, 100 mm Travel, Stepper Motor, Vacuum Compatible | Less than 50 mm/s | 100 mm | 10 mm/s | 100 N | |
| MTN200CCMotorized Linear Stage, Steel, DC Motor, 200 mm Travel, M4 and M6 | 50 to 250 mm/s | 200 mm | 100 mm/s | 1000 N | |
 | MTN100BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 100 mm Travel, M4 and M6 | 50 to 250 mm/s | 100 mm | 250 mm/s | 1000 N | |
 | MTN200BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 200 mm Travel, M4 and M6 | 50 to 250 mm/s | 200 mm | 250 mm/s | 1000 N | |

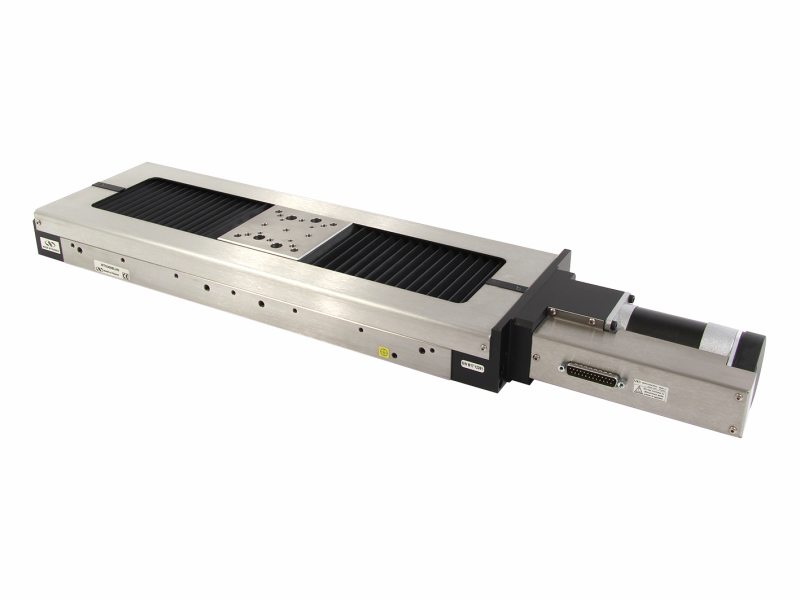

 | MTN300BLHSMotorized Linear Stage, Steel, Brushless DC Motor, 300 mm Travel, M4 and M6 | 50 to 250 mm/s | 300 mm | 250 mm/s | 1000 N | |
 | ILS200BPPMotorized Linear Stage, 200 mm Travel, Stepper Motor, 1/4-20 | 50 to 250 mm/s | 200 mm | 50 mm/s | 250 N | |
| ILS50BPPMotorized Linear Stage, 50 mm Travel, Stepper Motor, 1/4-20 | 50 to 250 mm/s | 50 mm | 50 mm/s | 250 N | |
 | MTN300CCMotorized Linear Stage, Steel, DC Motor, 300 mm Travel, M4 and M6 | 50 to 250 mm/s | 300 mm | 100 mm/s | 1000 N | |
| M-ILS50BPPMotorized Linear Stage, 50 mm Travel, Stepper Motor, M6 | 50 to 250 mm/s | 50 mm | 50 mm/s | 250 N | |
| M-ILS200BPPMotorized Linear Stage, 200 mm Travel, Stepper Motor, M6 | 50 to 250 mm/s | 200 mm | 50 mm/s | 250 N | |
| ILS100CCMotorized Linear Stage, 100 mm Travel, DC Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 100 mm | 100 mm/s | 250 N | |
 | ILS150HAMotorized Linear Stage, 150 mm Travel, DC Motor, Linear Encoder, 1/4-20 | 50 to 250 mm/s | 150 mm | 100 mm/s | 250 N | |
| ILS200HAMotorized Linear Stage, 200 mm Travel, DC Motor, Linear Encoder, 1/4-20 | 50 to 250 mm/s | 200 mm | 100 mm/s | 250 N | |
| ILS250BPPMotorized Linear Stage, 250 mm Travel, Stepper Motor, 1/4-20 | 50 to 250 mm/s | 250 mm | 50 mm/s | 250 N | |
| ILS50CCMotorized Linear Stage, 50 mm Travel, DC Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 50 mm | 100 mm/s | 250 N | |
| ILS50HAMotorized Linear Stage, 50 mm Travel, DC Motor, Linear Encoder, 1/4-20 | 50 to 250 mm/s | 50 mm | 100 mm/s | 250 N | |
| ILS250CCMotorized Linear Stage, 250 mm Travel, DC Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 250 mm | 100 mm/s | 250 N | |
| ILS250HAMotorized Linear Stage, 250 mm Travel, DC Motor, Linear Encoder, 1/4-20 | 50 to 250 mm/s | 250 mm | 100 mm/s | 250 N | |
| M-ILS150BPPMotorized Linear Stage, Stepper Motor, 150 mm Travel, M6 | 50 to 250 mm/s | 150 mm | 50 mm/s | 250 N | |
| ILS150BPPMotorized Linear Stage, 150 mm Travel, Stepper Motor, 1/4-20 | 50 to 250 mm/s | 150 mm | 50 mm/s | 250 N | |
| M-ILS150HAMotorized Linear Stage, 150 mm Travel, DC Motor, Linear Encoder, M6 | 50 to 250 mm/s | 150 mm | 100 mm/s | 250 N | |
| ILS150CCMotorized Linear Stage, 150 mm Travel, DC Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 150 mm | 100 mm/s | 250 N | |
| ILS100HAMotorized Linear Stage, 100 mm Travel, DC Motor, Linear Encoder, 1/4-20 | 50 to 250 mm/s | 100 mm | 100 mm/s | 250 N | |
| M-ILS150CCMotorized Linear Stage, 150 mm Travel, DC Motor, Rotary Encoder, M6 | 50 to 250 mm/s | 150 mm | 100 mm/s | 250 N | |
 | IMS300BPPMotorized Linear Stage, 300 mm Travel, Stepper Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 300 mm | 100 mm/s | 600 N | |
 | IMS400BPPMotorized Linear Stage, 400 mm Travel, Stepper Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 400 mm | 100 mm/s | 600 N | |
| IMS600BPPMotorized Linear Stage, 600 mm Travel, Stepper Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 600 mm | 100 mm/s | 600 N | |
| M-IMS400BPPMotorized Linear Stage, 400 mm Travel, Stepper Motor, Rotary Encoder, M6 | 50 to 250 mm/s | 400 mm | 100 mm/s | 600 N | |
| IMS500BPPMotorized Linear Stage, 500 mm Travel, Stepper Motor, Rotary Encoder, 1/4-20 | 50 to 250 mm/s | 500 mm | 100 mm/s | 600 N | |
 | IDL165-150BLBKMotorized Linear Stage, Industrial, Brushless DC Motor, 150 mm Travel, Brake, M6 | More than 250 mm/s | 150 mm | 300 mm/s | 450 N | |
| M-IMS500BPPMotorized Linear Stage, 500 mm Travel, Stepper Motor, Rotary Encoder, M6 | 50 to 250 mm/s | 500 mm | 100 mm/s | 600 N | |
 | ILS200LM-SMotorized Linear Stage, 200 mm Travel, Linear Motor, 1/4-20 Thread | More than 250 mm/s | 200 mm | 500 mm/s | 250 N | |
| IDL165-150BLMotorized Linear Stage, Industrial, Brushless DC Motor, 150 mm Travel, M6 | More than 250 mm/s | 150 mm | 300 mm/s | 450 N | |
| ILS300LM-SMotorized Linear Stage, 300 mm Travel, Linear Motor, 1/4-20 Thread | More than 250 mm/s | 300 mm | 500 mm/s | 250 N | |
 | IMS400LM-SMotorized Linear Stage, Linear Motor, 400 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 400 mm | 1000 mm/s | 600 N | |
| IMS300LM-SMotorized Linear Stage, Linear Motor, 300 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 300 mm | 1000 mm/s | 600 N | |
 | IMS1000LM-SMotorized Linear Stage, Linear Motor, 1000 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 1000 mm | 1000 mm/s | 600 N | |
 | IMS600LM-SMotorized Linear Stage, Linear Motor, 600 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 600 mm | 1000 mm/s | 600 N | |
| IMS1200LM-SMotorized Linear Stage, Linear Motor, 1200 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 1200 mm | 1000 mm/s | 600 N | |
| IDL165-300BLMotorized Linear Stage, Industrial, Brushless DC Motor, 300 mm Travel, M6 | More than 250 mm/s | 300 mm | 300 mm/s | 450 N | |
| ILS100LM-SMotorized Linear Stage, 100 mm Travel, Linear Motor, 1/4-20 Thread | More than 250 mm/s | 100 mm | 500 mm/s | 250 N | |
| IMS500LM-SMotorized Linear Stage, Linear Motor, 500 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 500 mm | 1000 mm/s | 600 N | |
| IMS800LM-SMotorized Linear Stage, Linear Motor, 800 mm Travel, 1/4-20, No Cable | More than 250 mm/s | 800 mm | 1000 mm/s | 600 N | |
 | IDL165-300LMMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 165 mm | More than 250 mm/s | 300 mm | 2000 mm/s | 450 N | |
| IDL165-200LMMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 165 mm | More than 250 mm/s | 200 mm | 2000 mm/s | 450 N | |
| IDL225-300LMMotorized Linear Stage, Industrial, Linear Motor, 300 mm Travel, 225 mm | More than 250 mm/s | 300 mm | 2000 mm/s | 1000 N | |
| IDL225-200LMMotorized Linear Stage, Industrial, Linear Motor, 200 mm Travel, 225 mm | More than 250 mm/s | 200 mm | 2000 mm/s | 1000 N | |
| IDL225-600LMMotorized Linear Stage, Industrial, Linear Motor, 600 mm Travel, 225 mm | More than 250 mm/s | 600 mm | 2000 mm/s | 1000 N | |
| M-IMS1000LM-SMotorized Linear Stage, Linear Motor, 1000 mm Travel, XPS-D/RL, No Cable, M6 | More than 250 mm/s | 1000 mm | 1000 mm/s | 600 N | |
| IDL225-500LMMotorized Linear Stage, Industrial, Linear Motor, 500 mm Travel, 225 mm | More than 250 mm/s | 500 mm | 2000 mm/s | 1000 N | |
 | IDL280-600LMMotorized Linear Stage, Industrial, Linear Motor, 600 mm Travel, 280 mm | More than 250 mm/s | 600 mm | 2000 mm/s | 1500 N | |
| IDL225-1200LMMotorized Linear Stage, Industrial, Linear Motor, 1200 mm Travel, 225 mm | More than 250 mm/s | 1200 mm | 2000 mm/s | 1000 N | |
| IDL280-700LMMotorized Linear Stage, Industrial, Linear Motor, 700 mm Travel, 280 mm | More than 250 mm/s | 700 mm | 2000 mm/s | 1500 N | |
| IDL280-1000LMMotorized Linear Stage, Industrial, Linear Motor, 1000 mm Travel, 280 mm | More than 250 mm/s | 1000 mm | 2000 mm/s | 1500 N | |
| IDL165-100LMMotorized Linear Stage, Industrial, Linear Motor, 100 mm Travel, 165 mm | More than 250 mm/s | 100 mm | 2000 mm/s | 450 N | |
| IDL225-1000LMMotorized Linear Stage, Industrial, Linear Motor, 1000 mm Travel, 225 mm | More than 250 mm/s | 1000 mm | 2000 mm/s | 1000 N | |
 | IDL560-600LMMotorized Linear Stage, Industrial, Linear Motor, 600 mm Travel, 560 mm | More than 250 mm/s | 600 mm | 2000 mm/s | 2000 N | |
 | MTN100PPV6Motorized Linear Stage, Steel, Stepper Motor, 100 mm Travel, Vacuum, M4 & M6 | Less than 50 mm/s | 100 mm | 20 mm/s | 1000 N |
