Motorized Linear Stage, Steel, Stepper Motor, 100 mm Travel, Vacuum, M4 & M6
Model: MTN100PPV6
Product Series Overview

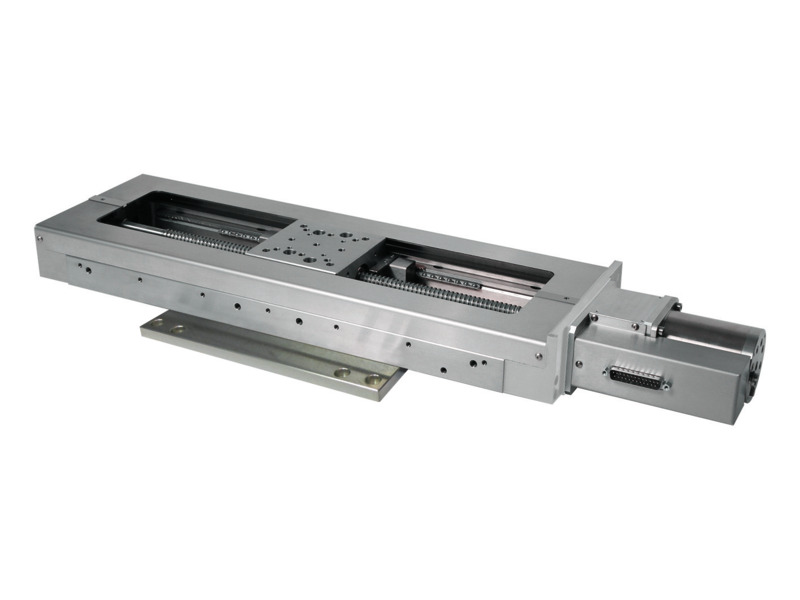

MTN High Load Steel Stepper Motor Linear StagesThe MTN100PPV6 Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This stepper drive version has 100 mm of travel and 0.1 µm Minimum Incremental Motion. MTN stages can bear up to 100 kg with an exceptional high axial load capacity up to 200 N. Features include: opposing single-row bearing surface, a diamond-corrected lead screw, a matched, precision-lapped nut and a non-migrating ball cage design. The nut design includes anti-backlash preloading and a sophisticated decoupling system ensuring little to no stage movement. The non-migrating ball cage design prevents any drift in vertical applications. Vacuum compatible to 10-6 Torr.
Note:The cable supplied with the stage is not vacuum compatible due to various feed-through configurations and customer preferences. Please contact Newport for vacuum compatible cable options.
Resources & Downloads
3D Product Models
2D Product Drawings
MTN100PPV6(166 kB, PDF) MTN Linear Stages User's Manual(1.6 MB, PDF) MTN Data Sheet(1.2 MB, PDF) Vaccum Compatible Products Brochure(3.8 MB, PDF)
