Thin-Optic Optical Mounts Selection Guide

Overview

Some optical components are too thin for typical kinematic mounts to easily hold and position. Thus, Newport offers standard mounts and accessories that are specifically designed to provide precision pitch/yaw adjustment for thin lenses and other optics.

Threaded Retainer Ring and Spacer

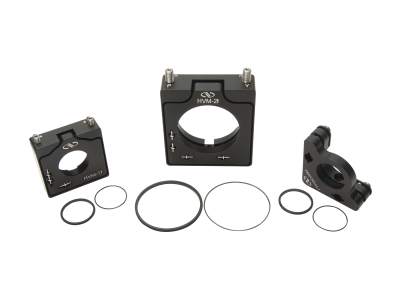

A threaded retainer ring is included with Newport's thin-optics mounts to hold the optical component in place. Additionally, a protective Delrin spacer is provided to prevent scratching the optic's coating or surface as it is secured.

HVM-t-P100-t-GRP

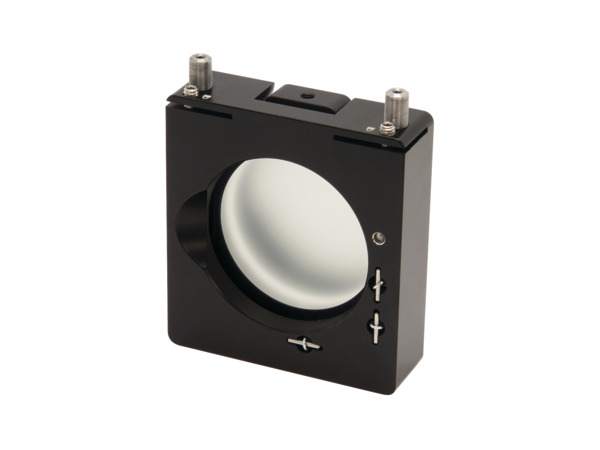

Rear-Loading for Consistent Location of Optic Surface

Optical components are loaded from the rear of our thin-optics mounts. That way, the front surface of the optic will be in the same mounting location regardless of its thickness. In contrast, a front-loading mount could locate a thin optic recessed within the mount, thereby limiting its reflective clear aperture.

HVM-2i-BACK

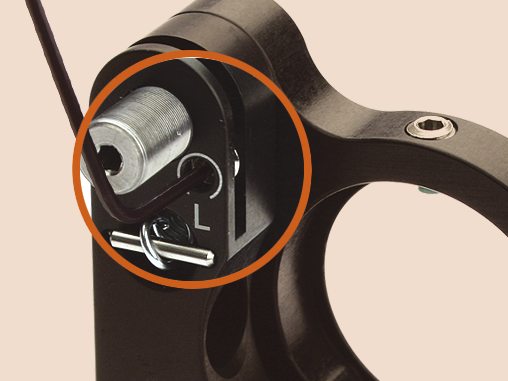

Locking Allen-Key Adjusters

Newport's thin-optics mounts include locking Allen-Key adjustments to prevent unintended adjustment and to save space. This is especially useful for OEM applications which desire a "set and forget" capability.

P100-AI21-Actuator-Lock-hex
Hex-industrial-pin-holes
(left) and lens spacer (right) with

Adapters for Standard Mounts

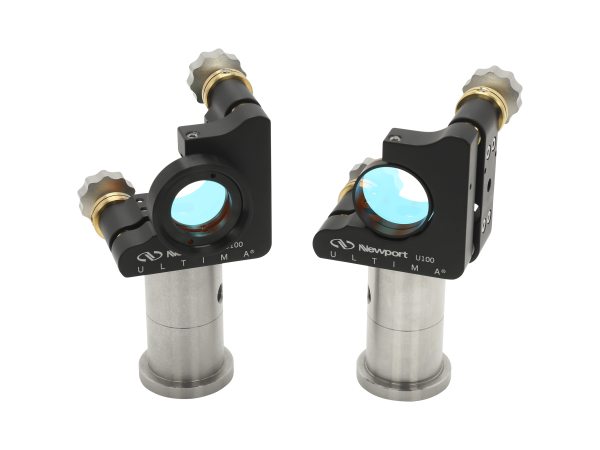

Specialty adapters that enable standard Newport optical mounts to securely hold thin-optics are also available. The is specifically designed to house thin 1-in (25.4-mm) diameter optics for insertion into . Another method of allowing standard 1-in mirror mounts to hold thin-optics is by placing a lens spacer in the aperture, held in place by the mount's setscrew, to secure the optic in place. is a 6-pack of 1-in (25.4-mm) diameter, 4-mm thick aluminum spacers.

Hex-industrial-pin-holes

Accessories

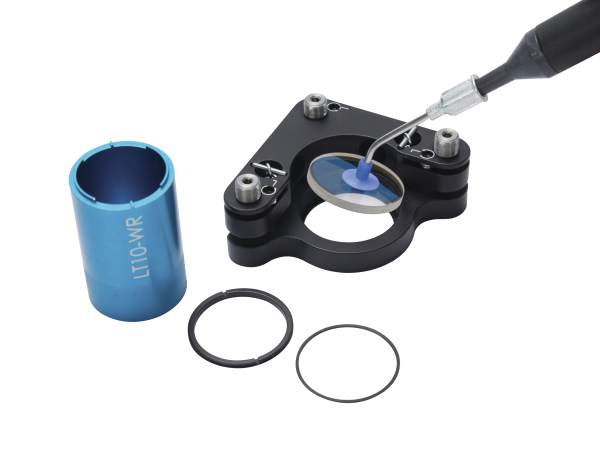

Newport also provides accessories to aid in the handling of thin optics. Our vacuum pick-up tool is equipped with special blue silicone suction cups which will not mark or leave residue on optics when used to pick and place optical components. Also available are spanner wrenches to easily and safely install and remove retaining rings from mirror mounts, lens tubes, or lens mounts with threaded aperture.

Compare Description Avail. Price Qty.

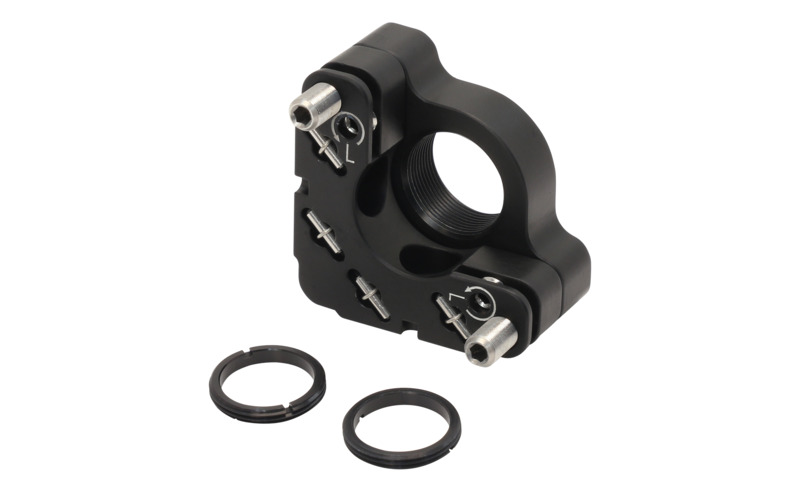

Performa-i Hex-Driven Mirror MountsP50-At21Mirror Mount, Thin Optic, 0.5 in., 100 TPI, 2 Locking Allen-Keys
$111

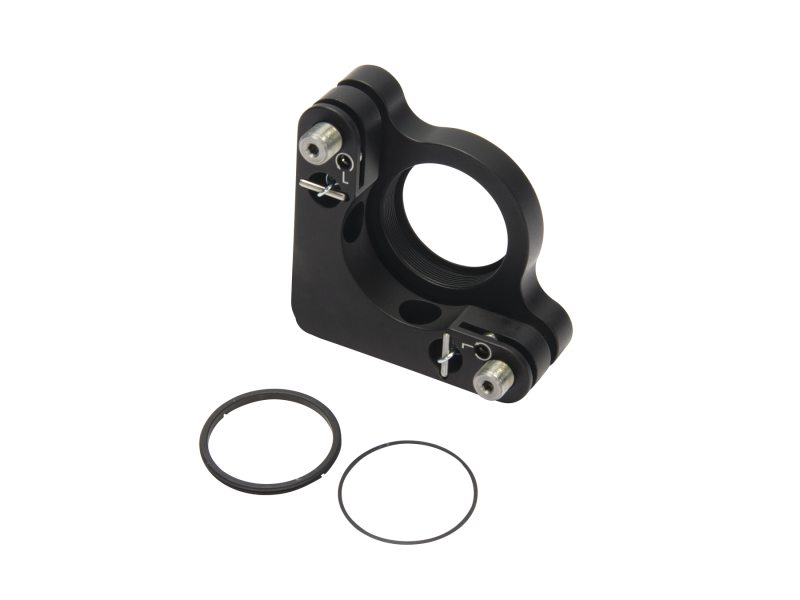

Performa-i Hex-Driven Mirror MountsP100-At28Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 2 Locking Allen-Keys
$101
Performa-i Hex-Driven Mirror MountsP100-At38Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 3 Locking Allen-Keys
$105

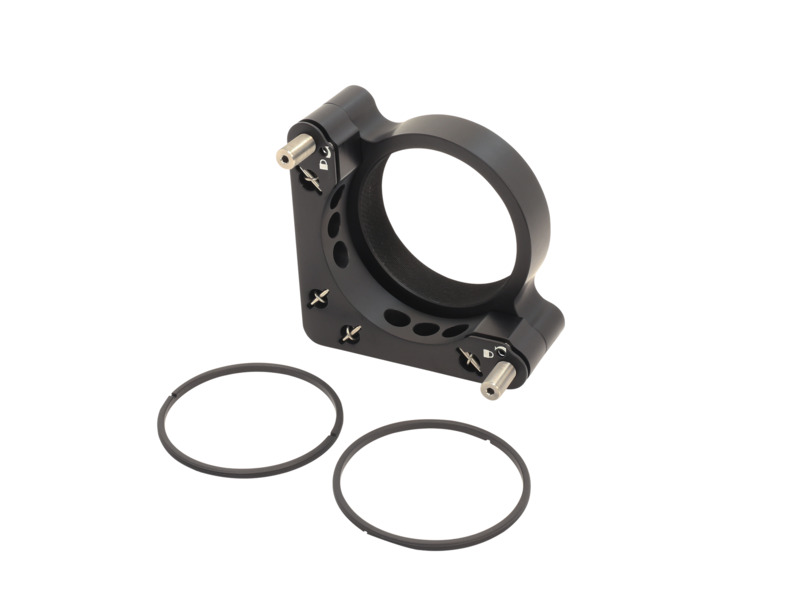

Performa-i Hex-Driven Mirror MountsP200-At28Mirror Mount, Thin Optic, 2.0 in., 80 TPI, 2 Locking Allen-Keys
$181
Industrial Top Adjust MountsHVM-1tMirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys
$212

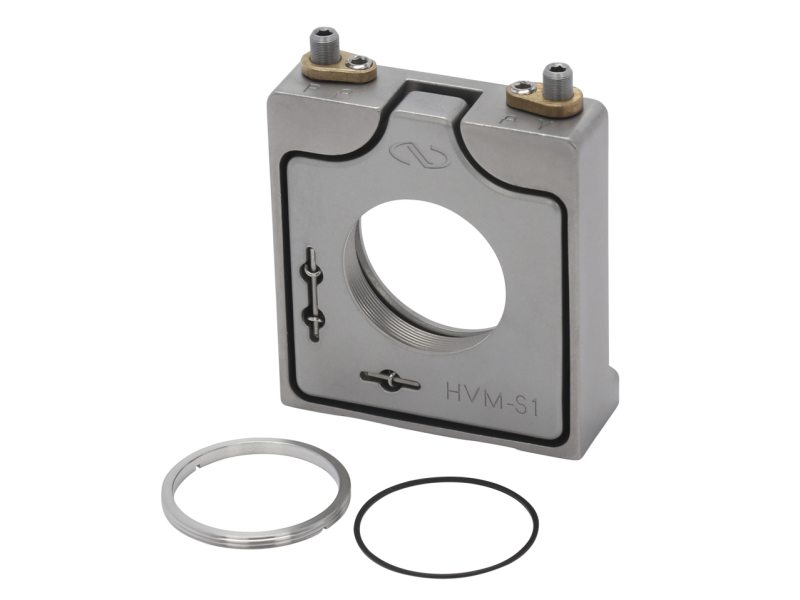

Industrial Top Adjust MountsHVM-S1tMirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys
$242
Industrial Top Adjust MountsHVM-2tMirror Mount, Industrial, Vertical Drive, Thin Optic, 2 in., 2 Locking Allen-Keys
$266

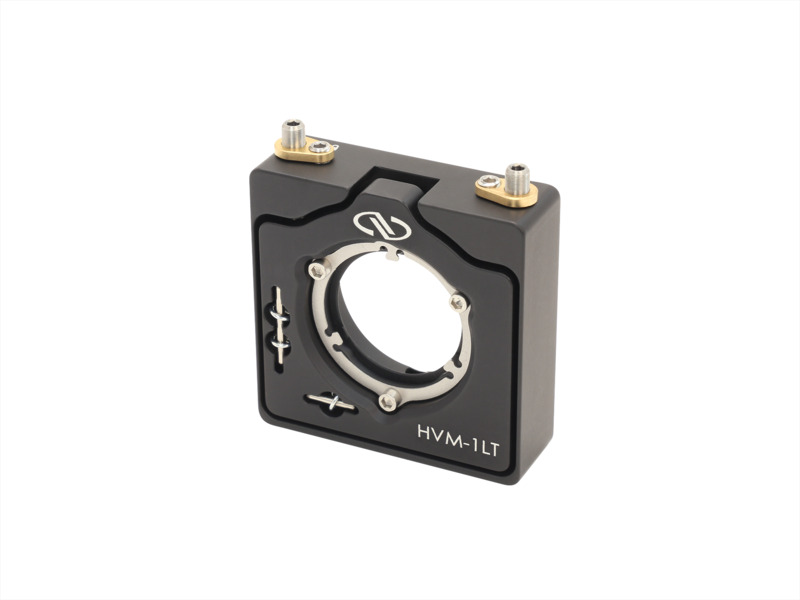

Industrial Top Adjust MountsHVM-1ltMirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, 8-32
$262

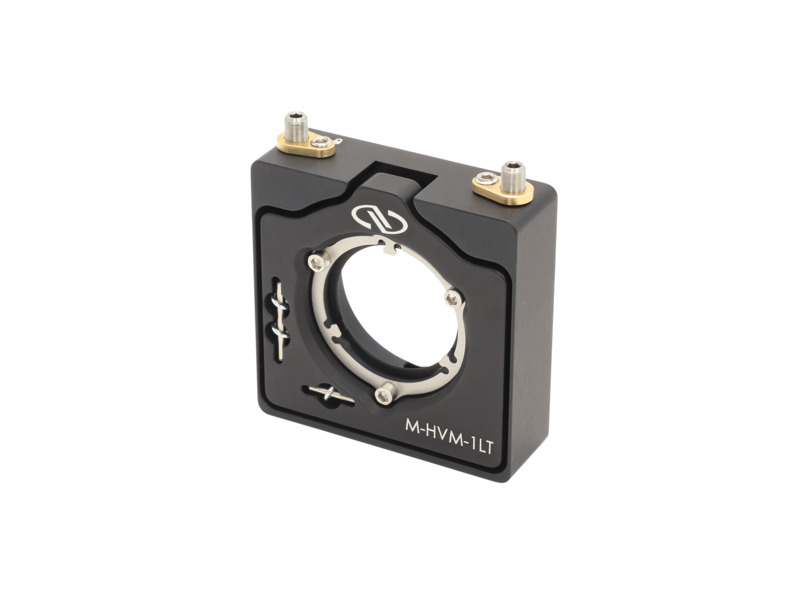

Industrial Top Adjust MountsM-HVM-1ltMirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, M4
$262
Compare Description Avail. Price Qty.

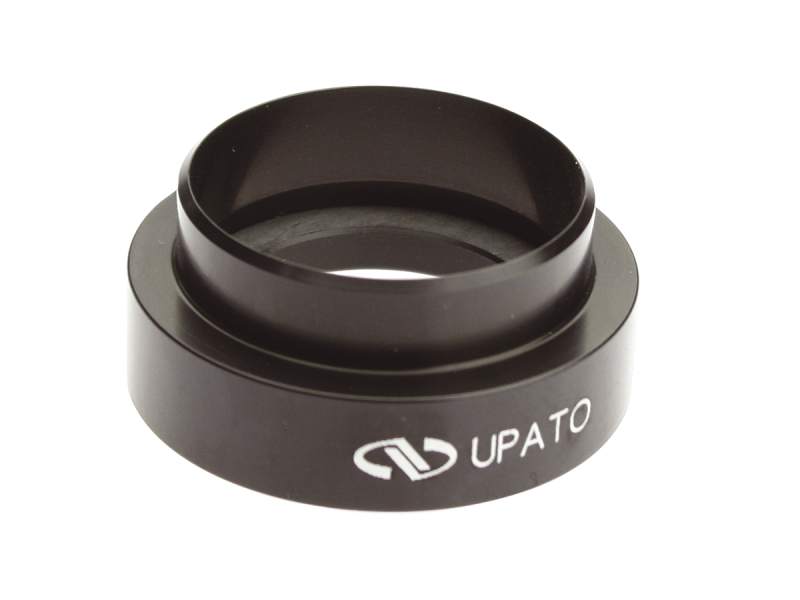

Specialty Mirror Mount AdaptersUPATOThin Optics Adapter, 1.0 in. (25.4 mm) Diameter
$49

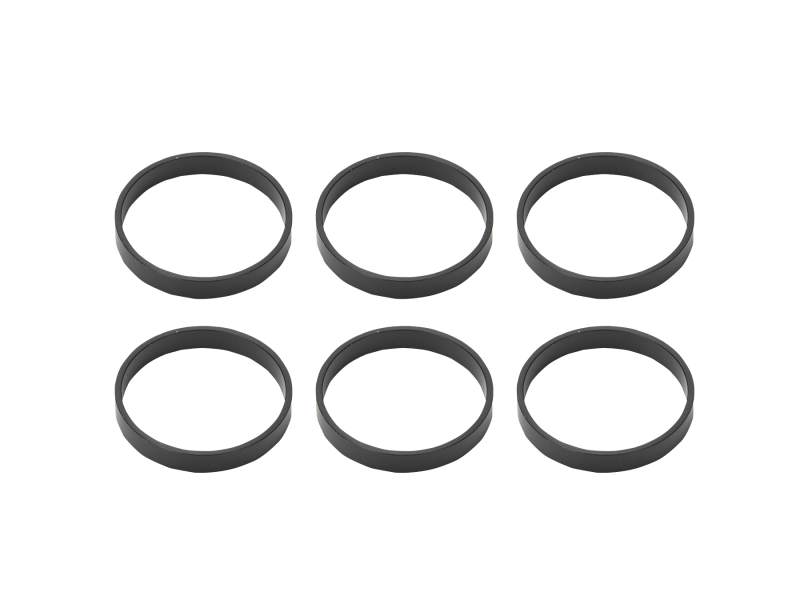

Lens Tube Spacers and WashersLT10-SP4-PKLens Spacer, 1.0 in. Diameter, 4.0 mm Thick, Aluminum, 6-pack
$56
Compare Description Avail. Price Qty.
Vacuum Pick-Up Tool for OpticsVTL-KTVacuum Pick-up Tool Kit, Non-Marking Suction Cups
$108
Spanner WrenchLT10-WRSpanner Wrench, 1 inch LT Series Lens Tubes
$43
Spanner WrenchLT20-WRSpanner Wrench, 2.0 inch LT Series Lens Tubes
$53

Custom Capabilities

If our standard thin-optics mounts do not quite meet the requirements for your application, Newport has the capability to provide custom thin-optics mounts with features such as low wavefront distortion, front-loading and holding other diameter sizes – please contact us for more information.
