Silver Mirror Pack, fs Optimized, 0-45° AOI, 25.4 mm, 470-1000 nm, Qty 10

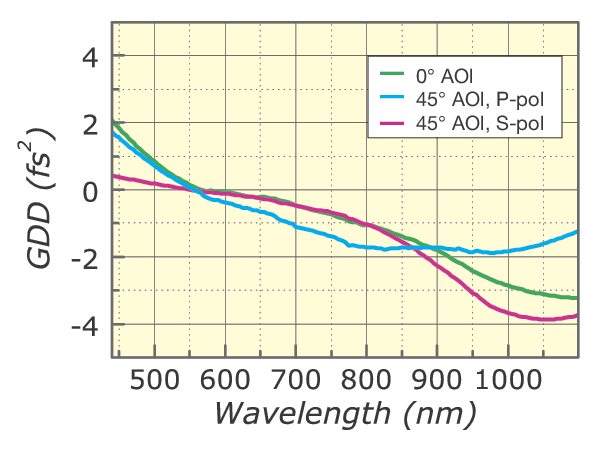

The 10B20EAG.2-PK is a pack of 10 Femtosecond Optimized Silver Mirrors. The 10B20EAG.2 is 25.4 mm in diameter, 6.35 mm thick, and broadband optimized for 470 - 1000 nm. This ultrafast mirror is designed for zero to 45 degrees angle of incidence for S and P polarization. The absolute value of GDD is an astounding less than 5 fs² from 550 to 1050 nm. Ideal for use with ultrashort pulse lasers, this high reflectance beamsteering mirror gives R>97% 470-1000 nm at 0 deg AOI, Rp>96% 480-1100 nm at 45 deg AOI and Rs>98% 460-890 nm or Rs>96% 430-1000 nm at 45 deg. Careful thin film coating design and advanced coating processes result in a mirror with maximum reflectivity and bandwidth with minimum effect on pulse dispersion.

FemtoOptics^TM is the premier optics product line specifically optimized for femtosecond pulse manipulation. It consists of innovative, high quality, easy to use, cutting edge optical components and assemblies for industrial and research applications.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
470-1000 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
N-BK7
Coating Type
Broadband special coating for ultrafast pulses
Coating Code
EAG.2
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Wedge
< 5 arc min

Clear Aperture
≥ central 85% of diameter
Back Surface
Fine Grind

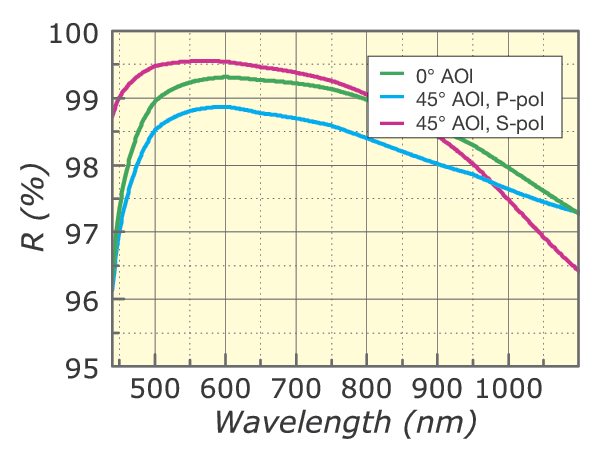

Reflectivity
R> 97% @ 470-1000 nm, 0° AOI
R_S>96% @ 430-1000 nm, R_S>98% @ 460-890 nm, R_P>96% @ 480-1100 nm, 45° AOI
Thickness
6.35 mm
Thickness Tolerance
±0.1 mm
Diameter Tolerance
+0/-0.1 mm
Chamfers
300 ± 200 µm
Chamfers Angle Tolerance
45 ±15°
Cleaning
Non-abrasive method, methanol or isopropyl alcohol on lens tissue recommended

Wavelength Region
NIR
Wavelength Range
470-1000 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
N-BK7
Coating Type
Broadband special coating for ultrafast pulses
Coating Code
EAG.2
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Wedge
< 5 arc min

Clear Aperture
≥ central 85% of diameter
Back Surface
Fine Grind
Reflectivity
R> 97% @ 470-1000 nm, 0° AOI
R_S>96% @ 430-1000 nm, R_S>98% @ 460-890 nm, R_P>96% @ 480-1100 nm, 45° AOI
Thickness
6.35 mm
Thickness Tolerance
±0.1 mm
Diameter Tolerance
+0/-0.1 mm
Chamfers
300 ± 200 µm
Chamfers Angle Tolerance
45 ±15°
Cleaning
Non-abrasive method, methanol or isopropyl alcohol on lens tissue recommended
