Turning Mirror, Super-Broadband, Ultrafast, 25.4mm, S Pol, 680-1060nm

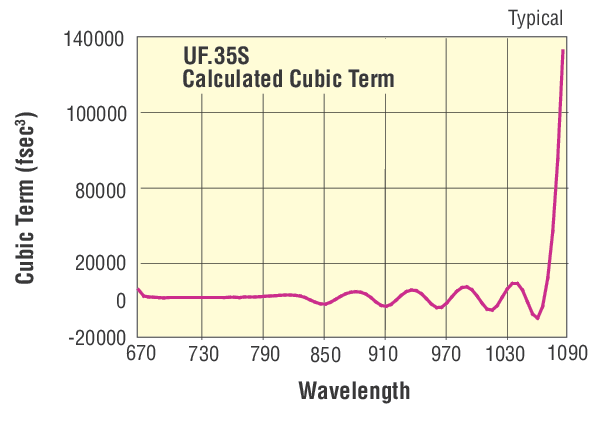

The 10Q20UF.35S Super-Broadband Turning Mirror is ideal for use with ultrashort pulses lasers as a high reflectance mirror at 45° angle of incidence for a very broadband wavelength range spanning almost 400 nm. Designed to reflect over 99.6% from 680 to 1060 nm, this mirror can be used with Spectra-Physics Tsunami® laser. Careful thin film design and advanced coating processes result in a mirror with maximum reflectivity, maximum bandwidth and minimum effect on pulse dispersion. Exhibiting ultralow phase distortion and a slightly negative GDD across the tuning range, this mirror is optimized for S polarization.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
680-1060 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Fused Silica
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
UF.35S
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/4 at 632.8 nm
Wedge
30 ± 15 arc min

Clear Aperture
≥ central 78% of diameter
Back Surface
Fine Grind
Reflectivity
R_s>99.8% @ 680-1060 nm
Thickness
6.0 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45 ±15°
Cleaning
See How to Clean Optics

Wavelength Region
NIR
Wavelength Range
680-1060 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Fused Silica
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
UF.35S
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/4 at 632.8 nm
Wedge
30 ± 15 arc min

Clear Aperture
≥ central 78% of diameter
Back Surface
Fine Grind
Reflectivity
R_s>99.8% @ 680-1060 nm
Thickness
6.0 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45 ±15°
Cleaning
See How to Clean Optics
