Dielectric Mirror Pack, Broadband, 25.4 mm, 488-694 nm, Qty 10
Dielectric Mirror Pack, Broadband, 25.4 mm, 488-694 nm, Qty 10
Model: 10D20BD.1-PK
Product Series Overview
Standard Borofloat 33 Dielectric MirrorsThis is a pack of 10 of the very popular 10D20BD.1 Broadband Dielectric Mirror. This mirror is an extremely versatile mirror for laboratory applications and highly efficient over a broad wavelength range. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® 33 substrate. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The BD-1 coating is extremely durable and will withstand repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Borofloat® 33 Substrates
Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.
Visible Broadband Dielectric Coating

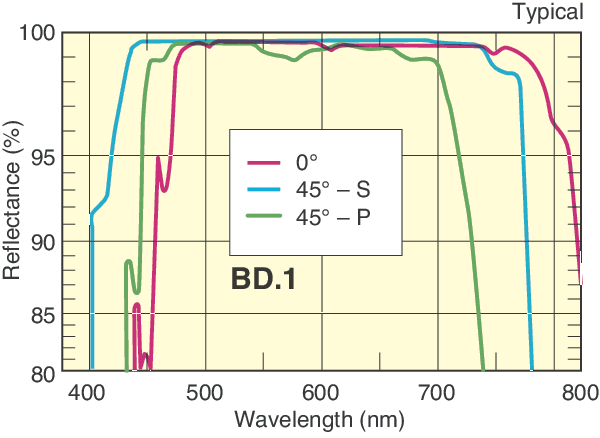

Our BD.1 visible broadband dielectric coating reflects all visible laser lines in the range of 488 to 694 nm with greater than 99% efficiency for s-polarization and 98% for p-polarization at 0 - 45° angle of incidence.
SAVE by purchasing a pack of 10!
A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.
Resources & Downloads
3D Product Models
Other
10D20BD.1-PK RoHS Certificate(264.2 kB, PDF) 10D20BD.1-PK_ROHS2-2021.pdf(279.2 kB, PDF) BD.1 Raw Data.xlsx(89.2 kB, XLSX)
