Mirror Mount 10 Pack, 1.0 in., 2 Knob Actuators, M1Q

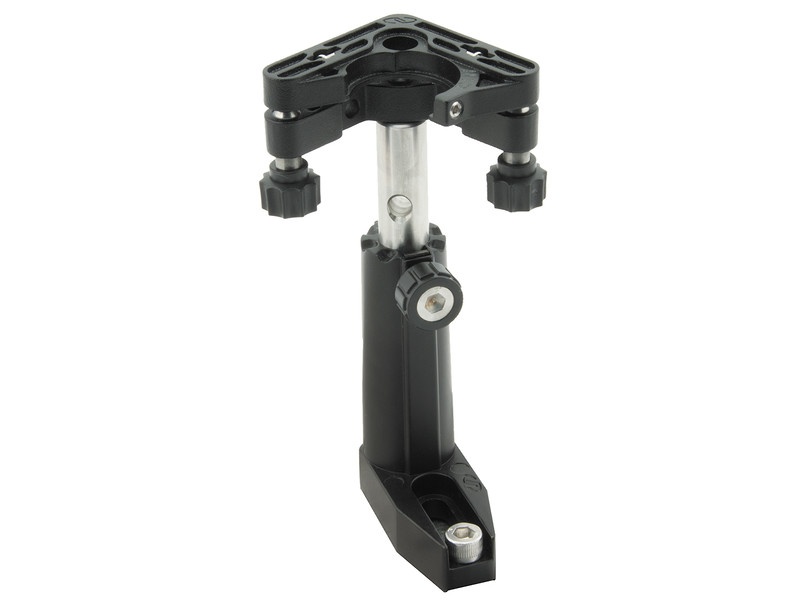

M Series Clear Edge Mirror Mounts

This is a 10-pack of the Mirror Mounts. The M1Q-PK is a Cost-Saving Pack of 10 M1Q Mirror Mounts. The M1Q holds 1 inch (25.4 mm) diameter optics. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Special Features
10-Pack

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Special Features
10-Pack

Resources & Downloads

Drawings And Cad

M1Q Drawing(324.6 kB, PDF)

Other

M1Q-PK RoHS Certificate(277.3 kB, PDF)
M1Q-PK_RoHS2021.pdf(679.5 kB, PDF)
