Silver Mirror Pack, Borofloat, 25.4 mm, λ/10, 480-20,000 nm, Qty 10
Silver Mirror Pack, Borofloat, 25.4 mm, λ/10, 480-20,000 nm, Qty 10
Model: 10D20ER.2-PK
Product Series Overview

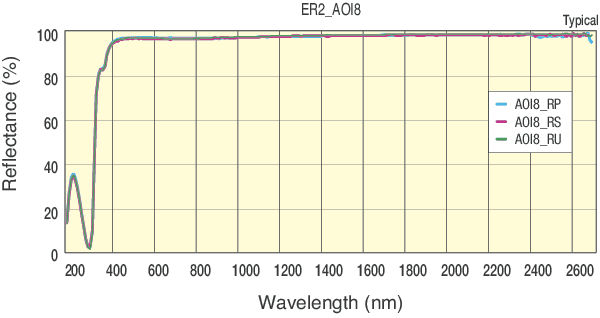

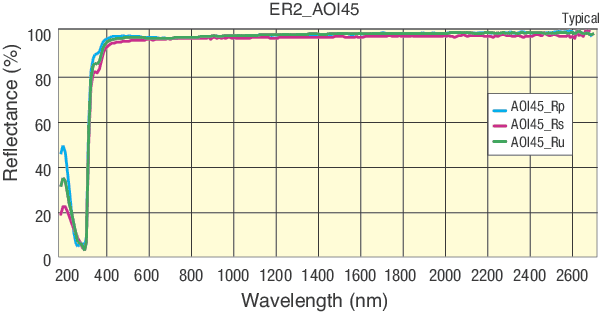

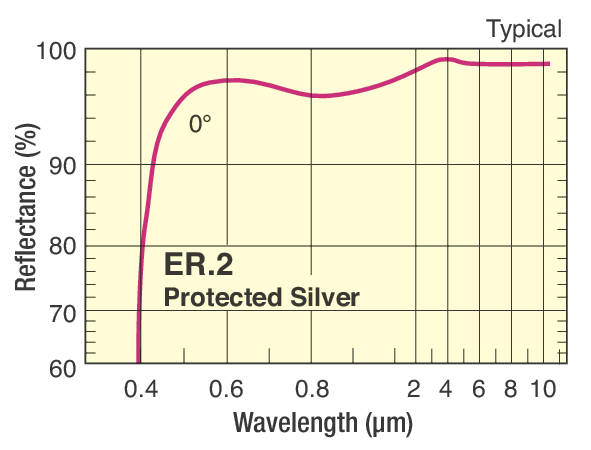

Standard Borofloat 33 Metallic MirrorsThis is a 10-pack of the very popular 10D20ER.2 Broadband Silver Mirrors. These mirrors are excellent general purpose, broadband reflectors. The 25.4 mm (1.0 inch) diameter mirrors are made from a 6.0 mm thick Borofloat® 33 substrate which is coated with the ER.2 silver coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. Our ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. The 10D20ER.2 has an average reflectivity greater than 96% from 480–1100 nm and greater than 98.5% from 1.1–20 μm. This mirror has a λ/10 surface flatness and a 20-10 surface quality.
Resources & Downloads
3D Product Models
Other
10D20ER.2-PK RoHS Certificate(708.7 kB, PDF) ER.2 Raw Data.xlsx(205.4 kB, XLSX)
