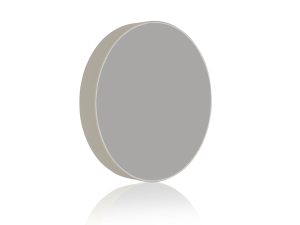

Borofloat 33 Broadband Metallic Mirrors

Broadband metallic mirrors are excellent general purpose, broadband reflectors covering the UV, visible, and IR. The Borofloat® 33 substrate offers low thermal expansion and is an excellent choice for most applications.

Six metallic coatings cover UV - IR spectral bands
Substrate flatness & surface quality λ/10, 25-10 to15-5
Available in diameter from 12.7 mm to 203.2 mm
Broader bandwidth and less expensive than dielectric coatings
Insensitive to polarization and angle of incidence
Cost saving 10-pack available

See All Features

Show Filters:

Showing 43 of 43 total products

Compatibility:

Description	Compatibility	Wavelength Range	Mirror Size	Thickness	Surface Quality	Price
05D20AL.2UV Aluminum Mirror, Borofloat, 12.7 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$76
05D20AL.2-PKUV Aluminum Mirror Pack, Borofloat, 12.7 mm, λ/10, 250-600 nm, Qty 10	UNIVERSAL	250-600 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$684
05D20ER.1Aluminum Mirror, Borofloat, 12.7 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$74
05D20ER.1-PKAluminum Mirror Pack, Borofloat, 12.7 mm, λ/10, 450-700 nm, Qty 10	UNIVERSAL	450-700 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$662
05D20ER.2Silver Mirror, Borofloat, 12.7 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$78
05D20ER.2-PKSilver Mirror Pack, Borofloat, 12.7 mm, λ/10, 480-20,000 nm, Qty 10	UNIVERSAL	480-20000 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$699
05D20ER.4Gold Mirror, Borofloat, 12.7 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$89
05D20ER.4-PKGold Mirror Pack, Borofloat, 12.7 mm, λ/10, 650-20,000 nm, Qty 10	UNIVERSAL	650-20000 nm	Ø12.7 mm	3.1 mm	15-5 scratch-dig	$803
07D20AL.2UV Aluminum Mirror, Borofloat, 19.05 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø19.05 mm	4.57 mm	15-5 scratch-dig	$83
07D20ER.1Aluminum Mirror, Borofloat, 19.05 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø19.05 mm	4.57 mm	15-5 scratch-dig	$78
07D20ER.2Silver Mirror, Borofloat, 19.05 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø19.05 mm	4.57 mm	15-5 scratch-dig	$96
10D20AL.2UV Aluminum Mirror, Borofloat, 25.4 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$76
10D20AL.2-PKUV Aluminum Mirror Pack, Borofloat, 25.4 mm, λ/10, 250-600 nm, Qty 10	UNIVERSAL	250-600 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$680
10D20ER.1Aluminum Mirror, Borofloat, 25.4 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$74
10D20ER.1-PKAluminum Mirror Pack, Borofloat, 25.4 mm, λ/10, 450-700 nm, Qty 10	UNIVERSAL	450-700 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$662
10D20ER.2Silver Mirror, Borofloat, 25.4 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$103
10D20ER.2-PKSilver Mirror Pack, Borofloat, 25.4 mm, λ/10, 480-20,000 nm, Qty 10	UNIVERSAL	480-20000 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$926
10D20ER.4Gold Mirror, Borofloat, 25.4 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$98
10D20ER.4-PKGold Mirror Pack, Borofloat, 25.4 mm, λ/10, 650-20,000 nm, Qty 10	UNIVERSAL	650-20000 nm	Ø25.4 mm	6.0 mm	15-5 scratch-dig	$879
20D20AL.2UV Aluminum Mirror, Borofloat, 50.8 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø50.8 mm	12.7 mm	15-5 scratch-dig	$172
20D20ER.1Aluminum Mirror, Borofloat, 50.8 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø50.8 mm	12.7 mm	15-5 scratch-dig	$167
20D20ER.2Silver Mirror, Borofloat, 50.8 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø50.8 mm	12.7 mm	15-5 scratch-dig	$218
20D20ER.4Gold Mirror, Borofloat, 50.8 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø50.8 mm	12.7 mm	15-5 scratch-dig	$285
30D20AL.2UV Aluminum Mirror, Borofloat, 76.2 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø76.2 mm	14.7 mm	15-5 scratch-dig	$543
30D20ER.1Aluminum Mirror, Borofloat, 76.2 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø76.2 mm	14.7 mm	15-5 scratch-dig	$496
30D20ER.2Silver Mirror, Borofloat, 76.2 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø76.2 mm	14.7 mm	15-5 scratch-dig	$568
30D20ER.4Gold Mirror, Borofloat, 76.2 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø76.2 mm	14.7 mm	15-5 scratch-dig	$780
3MD20AL.2UV Aluminum Mirror, Borofloat, 30.0 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø30.0 mm	6.0 mm	15-5 scratch-dig	$151
3MD20ER.1Aluminum Mirror, Borofloat, 30.0 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø30.0 mm	6.0 mm	15-5 scratch-dig	$131
3MD20ER.2Silver Mirror, Borofloat, 30.0 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø30.0 mm	6.0 mm	15-5 scratch-dig	$197
3MD20ER.4Gold Mirror, Borofloat, 30.0 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø30.0 mm	6.0 mm	15-5 scratch-dig	$201
40D20AL.2UV Aluminum Mirror, Borofloat, 101.6 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø101.6 mm	17.7 mm	20-10 scratch-dig	$1,028
40D20ER.1Aluminum Mirror, Borofloat, 101.6 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø101.6 mm	17.7 mm	20-10 scratch-dig	$981
40D20ER.2Silver Mirror, Borofloat, 101.6 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø101.6 mm	17.7 mm	20-10 scratch-dig	$1,068
40D20ER.4Gold Mirror, Borofloat, 101.6 mm, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	Ø101.6 mm	17.7 mm	20-10 scratch-dig	$1,095
5103Silver Mirror, General Purpose, Borofloat, 25.4 mm, 450 - 12,000 nm	UNIVERSAL	450-12000 nm	Ø25.4 mm	8.0 mm	25-10 scratch-dig	$146
5108UV Aluminum Mirror, General Purpose, Borofloat, 25.4 mm, 200-700 nm	UNIVERSAL	200-700 nm	Ø25.4 mm	8.0 mm	25-10 scratch-dig	$139
5123Silver Mirror, General Purpose, Borofloat, 50.8 mm, 450 - 12,000 nm	UNIVERSAL	450-12000 nm	Ø50.8 mm	12.5 mm	25-10 scratch-dig	$490
5153Silver Mirror, General Purpose, Borofloat, 12.7 mm, 450 - 12,000 nm	UNIVERSAL	450-12000 nm	Ø12.7 mm	5.0 mm	25-10 scratch-dig	$114
60D20AL.2UV Aluminum Mirror, Borofloat, 152.4 mm, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	Ø152.4 mm	23.5 mm	20-10 scratch-dig	$2,098
60D20ER.1Aluminum Mirror, Borofloat, 152.4 mm, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	Ø152.4 mm	23.5 mm	20-10 scratch-dig	$2,098
60D20ER.2Silver Mirror, Borofloat, 152.4 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø152.4 mm	23.5 mm	20-10 scratch-dig	$2,113
80D20ER.2Silver Mirror, Borofloat, 203.2 mm, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	Ø203.2 mm	29.5 mm	20-10 scratch-dig	$4,577

Show Less

Notes:

For all cost-saving 10 packs, click here
Concave mirror, square mirror, elliptical mirror, and D-shaped mirror are also available.

Specifications

Wavelength Range
200-700 nm, 250-600 nm, 450-700 nm, 450-12000 nm, 480-20000 nm, 650-20000 nm
Mirror Shape
Round
Diameter
12.7 mm, 19.1 mm, 25.4 mm, 30.0 mm, 50.8 mm, 76.2 mm, 101.6 mm, 152.4 mm, 203.2 mm
Thickness
3.1 mm, 4.57 mm, 5.0 mm, 6.0 mm, 8.0 mm, 12.7 mm, 14.7 mm, 17.7 mm, 23.5 mm, 29.5 mm
Material
Borofloat 33

Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Cleaning
See How to Clean Optics

Features

Borofloat® 33 Substrates

Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.

Enhanced Aluminum UV Coating

Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.

Enhanced Aluminum VIS-NIR Coating

Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.

Protected Silver VIS-IR Coating

Our ER.2 protected silver coating is composed of a low emissivity silver film, fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.

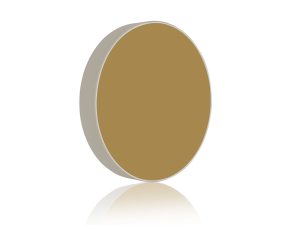

Protected Gold NIR-IR Coating

Our ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. Average reflectivity is greater than 96% from 650 – 1700 nm and greater than 98% from 1.7 – 2.0 µm.

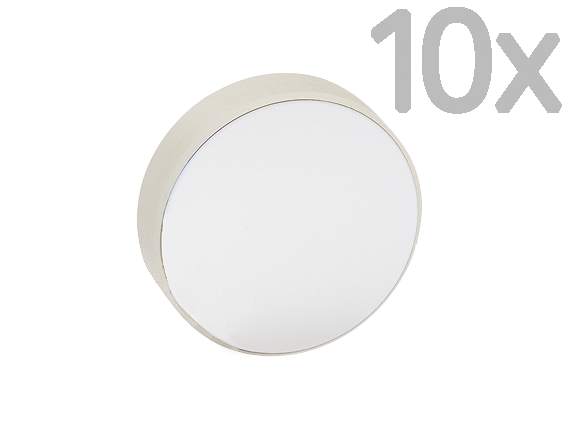

Save by Purchasing a Pack of 10!

A convenient pack of ten mirrors is also offered at a discount for customers outfitting new laboratories or new research applications.

Accessories

Cost-Saving 10 Packs

Buy 9 get 1 free when you choose to buy our popular 10 packs.

Description	Compatibility	Price
05D20AL.2-PKUV Aluminum Mirror Pack, Borofloat, 12.7 mm, λ/10, 250-600 nm, Qty 10	UNIVERSAL	$684
05D20ER.1-PKAluminum Mirror Pack, Borofloat, 12.7 mm, λ/10, 450-700 nm, Qty 10	UNIVERSAL	$662
05D20ER.2-PKSilver Mirror Pack, Borofloat, 12.7 mm, λ/10, 480-20,000 nm, Qty 10	UNIVERSAL	$699
05D20ER.4-PKGold Mirror Pack, Borofloat, 12.7 mm, λ/10, 650-20,000 nm, Qty 10	UNIVERSAL	$803
10D20AL.2-PKUV Aluminum Mirror Pack, Borofloat, 25.4 mm, λ/10, 250-600 nm, Qty 10	UNIVERSAL	$680
10D20ER.1-PKAluminum Mirror Pack, Borofloat, 25.4 mm, λ/10, 450-700 nm, Qty 10	UNIVERSAL	$662
10D20ER.2-PKSilver Mirror Pack, Borofloat, 25.4 mm, λ/10, 480-20,000 nm, Qty 10	UNIVERSAL	$926
10D20ER.4-PKGold Mirror Pack, Borofloat, 25.4 mm, λ/10, 650-20,000 nm, Qty 10	UNIVERSAL	$879

Mirror and Mount Bundles

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AL2-U100Mirror Mount Bundle, 10D20AL.2 Aluminum Mirror & U100-A2K-NL Mount	UNIVERSAL			$147
		ER4-M1Mirror Mount Bundle, 10D20ER.4 Broadband Gold Mirror & M1 Mount	UNIVERSAL			$103
