D-shaped Mirror, UV Aluminum, Fused Silica, 25.4 mm, λ/10, 250-600 nm

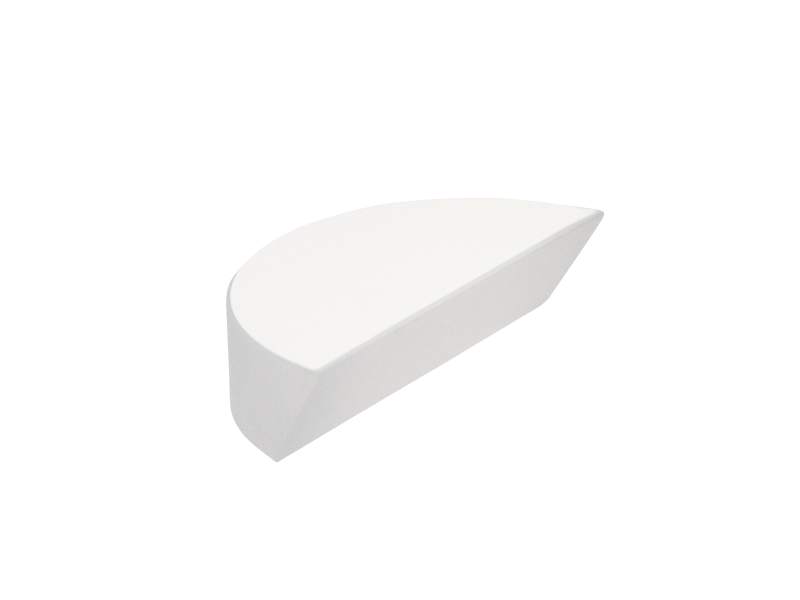

The 10DD20AL.2 is a D-shaped UV Enhanced Aluminum Broadband Mirror with a 25.4 mm (1.0 inch) diameter, a thickness of 6.0 mm, and a flatness of λ/10. The mirror's straight edge allows multiple tightly packed beams or sources to be separated. The 10DD20AL.2 has a 40-20 surface quality and an average reflectivity greater than 90% from 250 - 600 nm.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
D-shaped
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Fused Silica

Coating Code
AL.2
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥90% of diameter
Back Surface
Fine Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm² with 10 ns pulses at 355 nm, 20Hz

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
D-shaped
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Fused Silica

Coating Code
AL.2
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥90% of diameter
Back Surface
Fine Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm² with 10 ns pulses at 355 nm, 20Hz
