D-shaped Pickoff Mirror, Ø25.4 mm, Broadband Dielectric, 700-950 nm

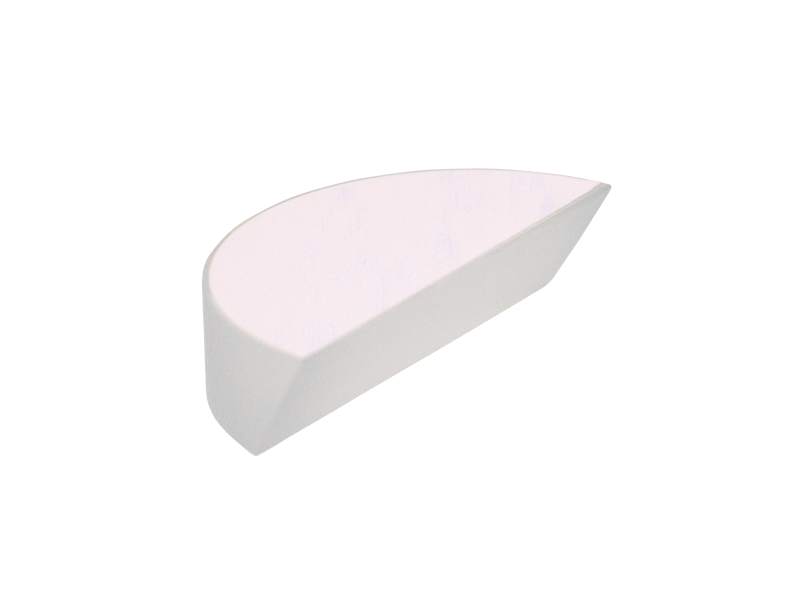

The 10DD20BD.2 is a D-shaped Dielectric Near Infrared Broadband Mirror, 25.4 mm (1 inch) diameter, with a thickness of 6.0 mm, and flatness of λ/10. This mirror's straight edge allows the separation of multiple tightly packed beams or sources. This mirror has a 15-5 surface quality and has an average reflectivity greater than 98% from 700 – 950 nm.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
D-shaped
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Fused Silica
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥90% of diameter
Back Surface
Fine Ground
Reflectivity
R_{S, avg}>99%, R_{P, avg}>97% @ 700-950 nm, R_avg>80% @ 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
D-shaped
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Fused Silica
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Clear Aperture
≥90% of diameter
Back Surface
Fine Ground
Reflectivity
R_{S, avg}>99%, R_{P, avg}>97% @ 700-950 nm, R_avg>80% @ 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm

Resources & Downloads

3D Product Models

Other

10DD20BD.2 RoHS Certificate(711.1 kB, PDF)
BD.2 Raw Data.xlsx(82.6 kB, XLSX)
