Elliptical Mirror, Silver, N-BK7, 25.4 mm x 35.9 mm, λ/10, 480-20,000 nm

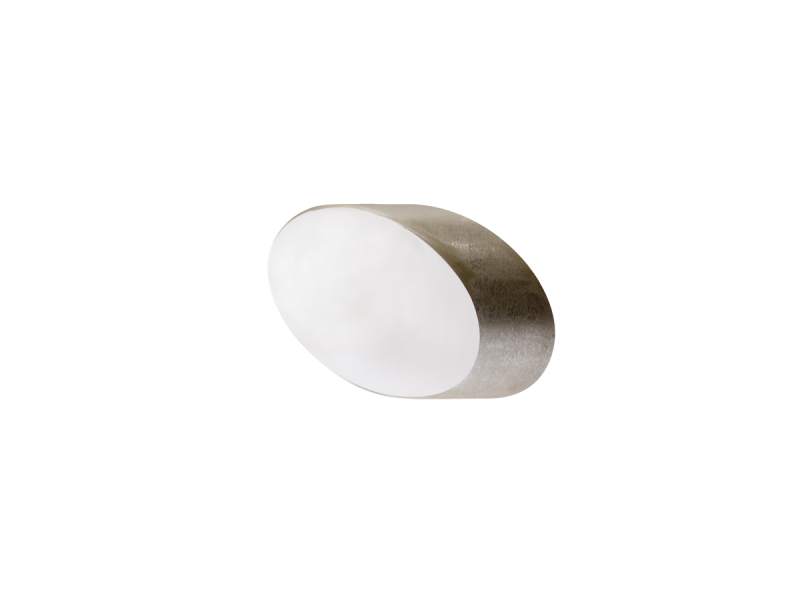

The 10E20ER.2 Broadband Silver Elliptical Mirror is an excellent general purpose, broadband reflector. This 25.4 mm (1.0 inch) minor axis, 35.9 mm (1.41 inch) major axis, elliptical mirror is made from a 6.0 mm thick N-BK7 substrate. The ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. The 10E20ER.2 has an average reflectivity greater than 96% from 480 - 1100 nm and greater than 98.5% from 1.1 - 20 µm. This mirror has a λ/10 surface flatness and a 40-20 surface quality.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
480-20000 nm
Mirror Shape
Elliptical
Mirror Size
25.4 x 35.9 mm
Thickness
6.0 mm
Material
N-BK7
Coating Type
Protected Silver
Coating Code
ER.2
Surface Quality
40-20 scratch-dig

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>96%, R_min>93% @ 480-1100 nm;R_avg>98.5%, R_min>97% @ 1.1-20 µm
Damage Threshold
1 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Thickness Tolerance
±0.2 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
480-20000 nm
Mirror Shape
Elliptical
Mirror Size
25.4 x 35.9 mm
Thickness
6.0 mm
Material
N-BK7
Coating Type
Protected Silver
Coating Code
ER.2
Surface Quality
40-20 scratch-dig

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>96%, R_min>93% @ 480-1100 nm;R_avg>98.5%, R_min>97% @ 1.1-20 µm
Damage Threshold
1 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Thickness Tolerance
±0.2 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
