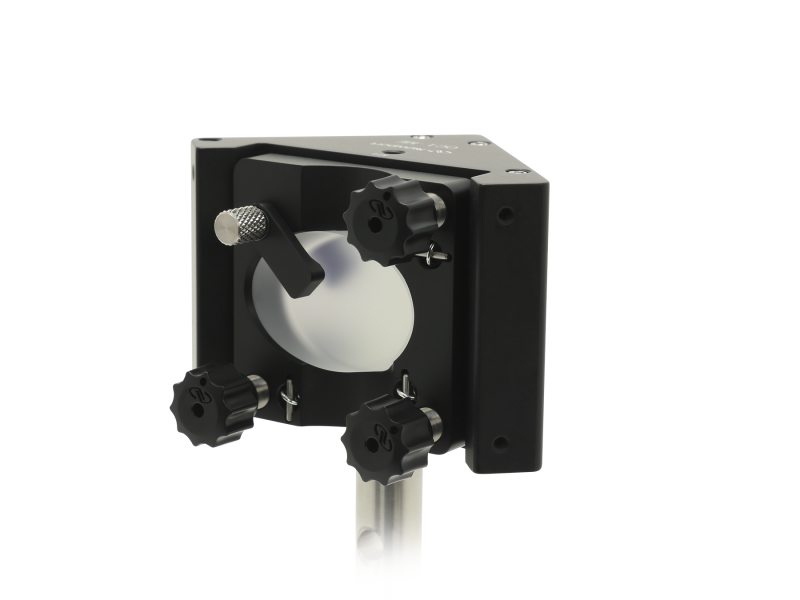

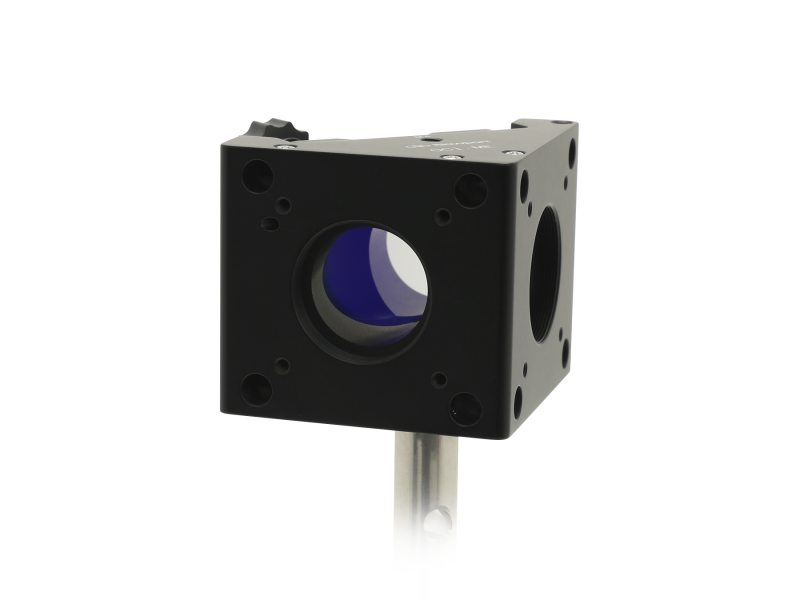

Elliptical Mirror Mount, 25.4 mm, Adjustable, 90° Folding, Optics Cage Plus

OpticsCage+ Adjustable Mirror Mount, Ø1 in. Elliptical Mirror, 90° Folding

Specifications

Technical Specs

Type
Mirror Mount, Elliptical
Clear Aperture
23.9 mm @ 45°
Thread Type
1.035-40

Material
Aluminum
Adjustment Range
±4°

Type
Mirror Mount, Elliptical
Clear Aperture
23.9 mm @ 45°
Thread Type
1.035-40

Material
Aluminum
Adjustment Range
±4°

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-ME (90070176)(221.5 kB, PDF)

Other

OC1-ME RoHS Certificate(278.2 kB, PDF)
OC1-ME_RoHS2021.pdf(681.3 kB, PDF)
