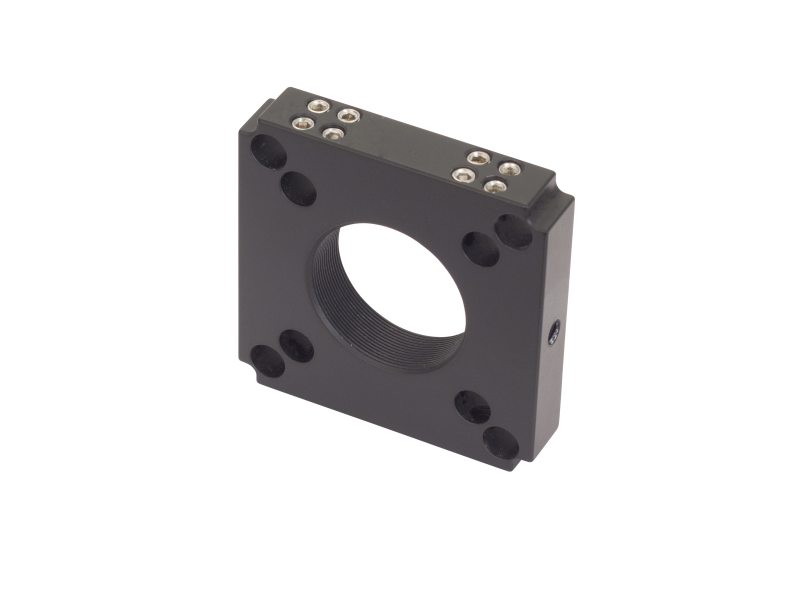

Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus

Optics Cage 30 mm Cage Adaptor, 1 in. OpticsCage+

Specifications

Technical Specs

Type
30 mm Cage Adapter
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum

Type
30 mm Cage Adapter
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-A30 AND OC1-LH1-S-save(136.1 kB, PDF)

Other

OC1-A30 RoHS Certificate(278.6 kB, PDF)
OC1-A30_RoHS2021.pdf(683 kB, PDF)
