OpticsCage+ fixed mounts provide convenient and robust mounting solutions for mirrors, lenses, filters and more. The patent pending snap-in design allows easy insertion and removal of components without the need for disassembly.
- Broad range of fixed mounts for various applications
- Snap-in design for easy assembly and alignment
- Compatible with lens tube and A-Line systems See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AP30C Optics Cage Plus Fixed Optic MountsBeam Dump Mount, Standard, 30 mm Optics Cage, PD30 | |||||
 | OC1-A30 Optics Cage Plus Fixed Optic MountsCage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus | |||||
 | OC1-BT Optics Cage Plus Fixed Optic MountsTube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus | |||||
 | OC1-DB Optics Cage Plus Fixed Optic MountsDouble-bored Mirror Mount, Insertable, 1 in. Diameter, Optics Cage Plus | |||||
| OC1-DM Optics Cage Plus Fixed Optic MountsDetector Mount, Insertable, 818 Series Photodiode Sensors, Optics Cage Plus | |||||

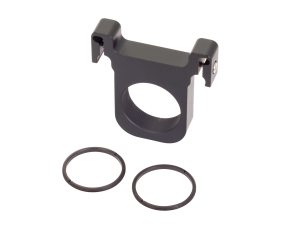

 | OC1-FH Optics Cage Plus Fixed Optic MountsFilter Mount, Insertable, 1 in. Diameter, Optics Cage Plus | |||||
 | OC1-LH1 Optics Cage Plus Fixed Optic MountsLens Mount, Insertable, 1 in. Diameter, Optics Cage Plus | |||||

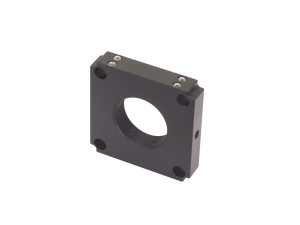

 | OC1-LH1-S Optics Cage Plus Fixed Optic MountsLens Mount, Standard, 1 in. Diameter, Optics Cage Plus | |||||
 | OC1-RMS Optics Cage Plus Fixed Optic MountsObjective Lens Mount, Insertable, RMS Thread, Optics Cage Plus | |||||

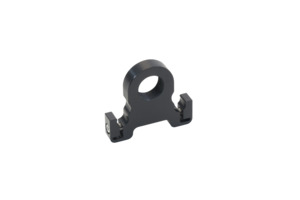

 | SP30C Optics Cage Plus Fixed Optic MountsBeam Dump Mount, Insertable, 30 mm Optics Cage, PD10 |
Features
Large Selection of Fixed Optic Mounts
OpticsCage+™ Fixed Optic Mounts provide fixed mounting for 1 in. (25.4 mm) lenses, mirrors, and filters within the 4-rod optics cage structure. These insetable optical mounts can all be easily inserted into or removed from an assembled cage, providing maximized flexibility during the optical system setup. The OpticsCage+ lens and filter mounts all have 1.035-40 optic mounting threads and the mirror mount has a double bored aperture for the mounting of mirrors and UPA series optic adaptors.
Snap-in Design for Easy Assembly and Alignment
Most optic cage systems only use a closed-hole captive design for adapting optic carriers to the 4-rod cage structure. This restriction requires a nearly complete teardown of a cage system to simply add or remove a component. The open-slot design of OpticsCage+ allows optical elements to be inserted directly into an assembled cage without the need for disassembly.
Versatile OpticsCage+ Adapters
OC1-PM post mount adapter allows one to easily mount OpticsCage+ system on posts and pedestals. OC1-XCL allows stable and easy cross clamping. OC1-RH is an adapter that allows one to mount Newport's self aligning A-Line lens alignment system inside of OpticsCage+ system. OC1-AT is an alignment target that makes alignment even easier.
Easily Integrate With 30 mm Cage System
OC1-A30 features two sets of through holes, providing convenient ways for you to adapt your existing 30 mm cage system from other vendors to our OpticsCage+ system.
