OpticsCage+ guide rods and adapters help to provide necessary accessories to mount various optical elements in the cage system. The patent pending snap-in design allows easy insertion and removal of components without the need for disassembly.
- Various size guide rods and adapters
- Made for easy assembly and alignment
- Compatible with lens tube and A-Line™ systems See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | OC1-GR-1 Optics Cage Plus Guide RodsGuide Rod, 6 mm, 4-40 Thd, 1 in. Length, 1 in. Optics Cage Plus | |||||
 | OC1-GR-2 Optics Cage Plus Guide RodsGuide Rod, 6 mm, 4-40 Thd, 2 in. Length, 1 in. Optics Cage Plus | |||||
 | OC1-GR-3 Optics Cage Plus Guide RodsGuide Rod, 6 mm, 4-40 Thd, 3 in. Length, 1 in. Optics Cage Plus | |||||
 | OC1-GR-4 Optics Cage Plus Guide RodsGuide Rod, 6 mm, 4-40 Thd, 4 in. Length, 1 in. Optics Cage Plus | |||||
 | OC1-GR-4S Optics Cage Plus Guide RodsGuide Rods, 6 mm, 4-40 Thd, 4 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus | |||||
 | OC1-GR-6 Optics Cage Plus Guide RodsGuide Rod, 6 mm, 4-40 Thd, 6 in. Length, 1 in. Optics Cage Plus | |||||
 | OC1-GR-6S Optics Cage Plus Guide RodsGuide Rods, 6 mm, 4-40 Thd, 6 in. Long, 1 mm Laser Marks, 1 in. Optics Cage Plus | |||||
 | OC1-PM Optics Cage Plus Guide RodsOptical Post Mount, 1 in. Optics Cage Plus | |||||
 | OC1-RH Optics Cage Plus Guide RodsAdaptor, A-Line to Optics Cage+ | |||||
 | OC1-XCL Optics Cage Plus Guide RodsCross Clamp, 1.0 in., Optics Cage Plus |
Features
Optional Laser Marked Guide Rods

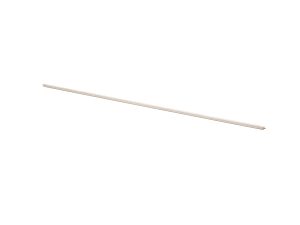

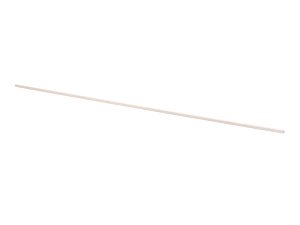

In addition to the regular 6 mm guide rods of various lengths, OpticsCage+ also provides guide rods with 1 mm laser marking such as OC1-GR-4S, making alignment even easier.
Snap-in Design for Easy Assembly and Alignment
Most optic cage systems only use a closed-hole captive design for adapting optic carriers to the 4-rod cage structure. This restriction requires a nearly complete teardown of a cage system to simply add or remove a component. The open-slot design of OpticsCage+ allows optical elements to be inserted directly into an assembled cage without the need for disassembly.
Versatile OpticsCage+ Adapters
OC1-PM post mount adapter allows one to easily mount OpticsCage+ system on posts and pedestals. OC1-XCL allows stable and easy cross clamping. OC1-RH is an adapter that allows one to mount Newport's self aligning A-Line lens alignment system inside of OpticsCage+ system. OC1-AT is an alignment target that makes alignment even easier.
Accessories
6 mm to 0.5 in Post Clamp
