Optical Post Clamp, Right-Angle, 0.5 in. to 6 mm Rod
Optical Post Clamp, Right-Angle, 0.5 in. to 6 mm Rod
Model: RA-0506
Product Series Overview

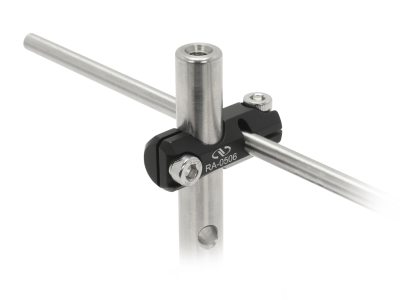

Post-Joining Angle ClampsThe RA-0506 optical post clamp is used to mount a 0.5 inch post and 6mm rod at a 90 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool.
Resources & Downloads
3D Product Models
2D Product Drawings
RA-0506.pdf(35.3 kB, PDF)
Other
MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
