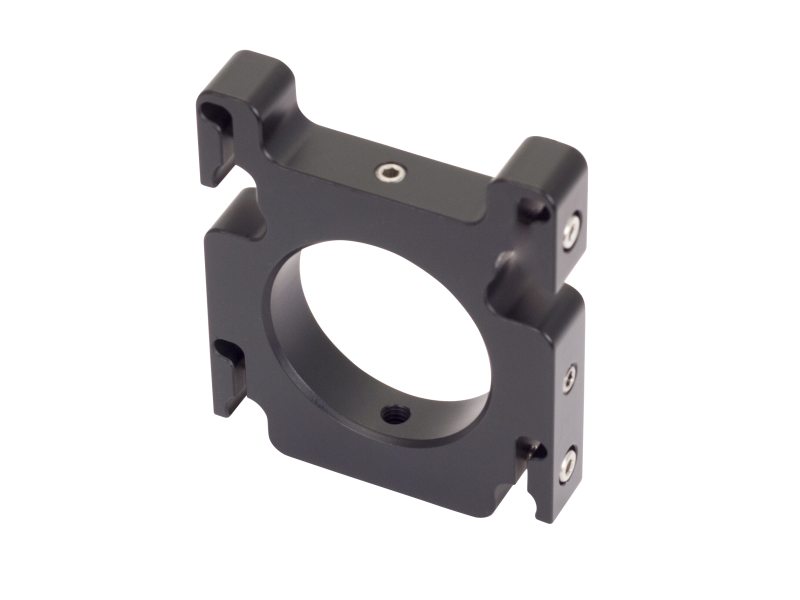

Tube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus

Optics Cage Beam Tube Mount is compatible with Aegis Qube™ Beam Tubes for building enclosed optical system. It features two 8-32 threaded holes on the sides supplied with nyton-tip set screws. It also has another 8-32 threaded hole at the bottom for direct mounting to standard optical posts.

Specifications

Technical Specs

Type
Tube Mount

Type
Tube Mount

Resources & Downloads

3D Product Models

2D Product Drawings

LENS MOUNT(102.9 kB, PDF)

Other

OC1-BT RoHS Certificate(277.1 kB, PDF)
OC1-BT_RoHS2021.pdf(679 kB, PDF)
