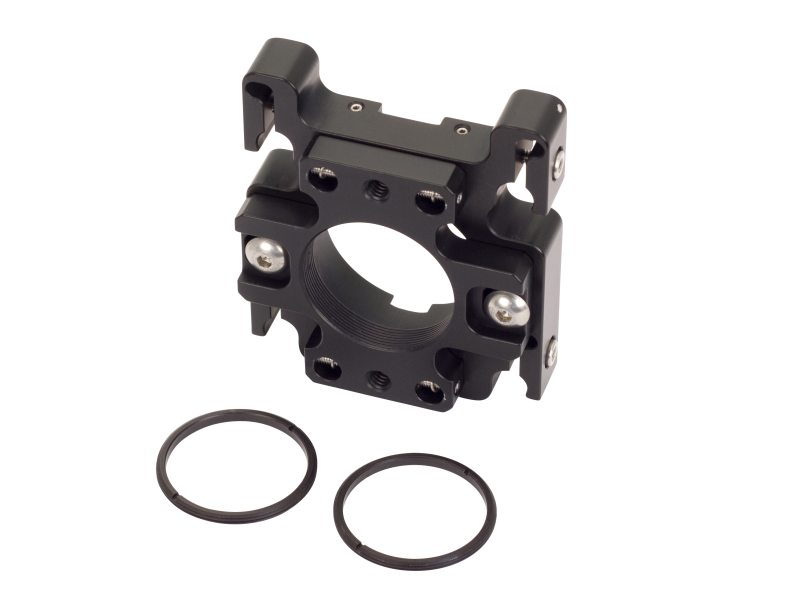

Adjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus

Optics Cage Lens Mount, XY Coarse, 1 in. Dia., OpticsCage+

Specifications

Technical Specs

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum
Adjustment Range
±1.0 mm

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum
Adjustment Range
±1.0 mm

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-LH1-XYC-340(157.2 kB, PDF)

Other

OC1-LH1-XYC RoHS Certificate(278.6 kB, PDF)
OC1-LH1-XYC_RoHS2021.pdf(681.8 kB, PDF)
