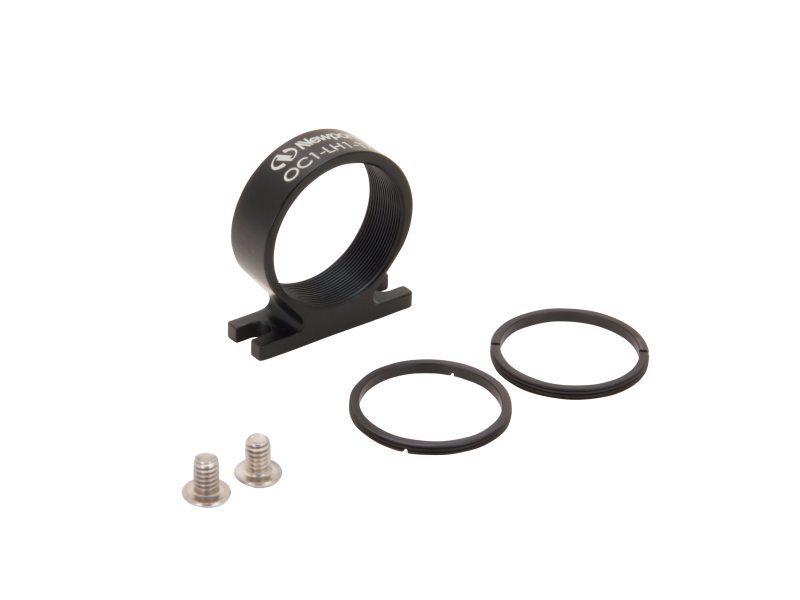

Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus, Requires OC1-TZ

Optics Cage Plus Adjustable Mounts

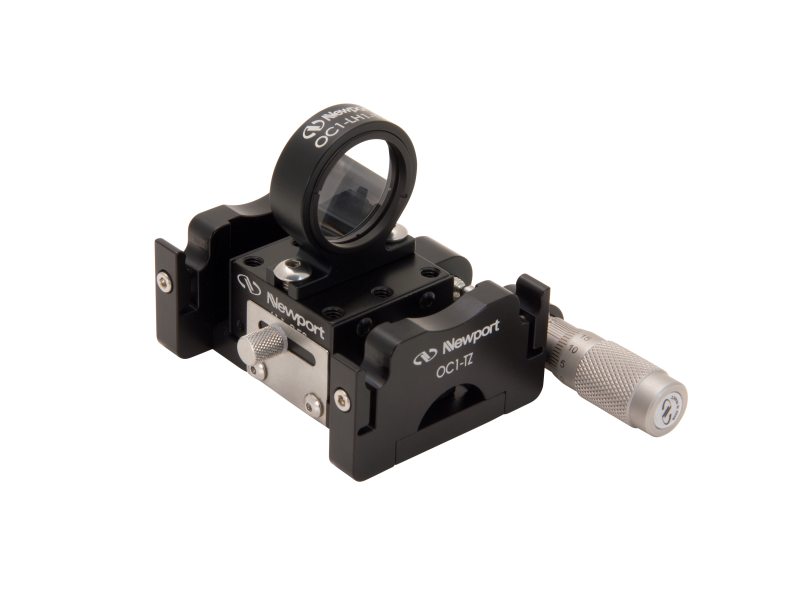

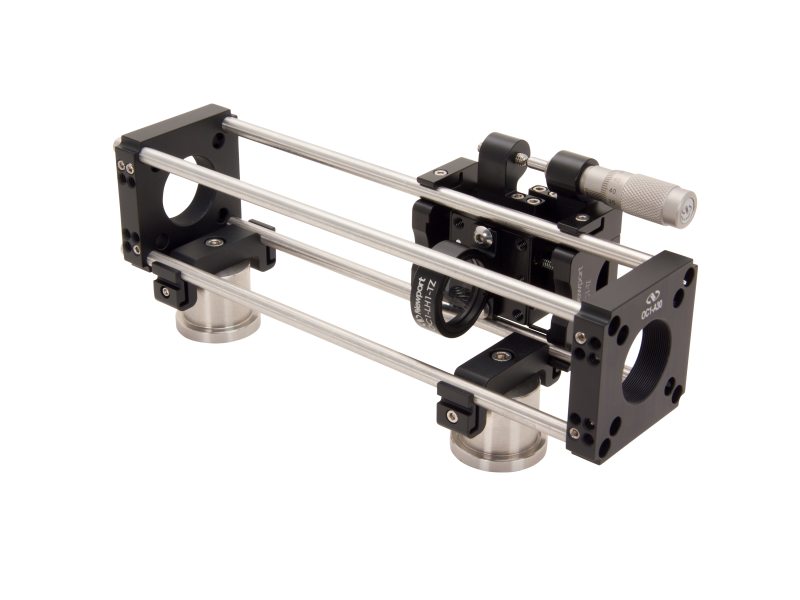

Optics Cage Insertable Lens Mount, 1 in. Dia., OpticsCage+. Mount compatible with the OC1-TZ stage.

Specifications

Technical Specs

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum
