Z-Axis Stage, Insertable, 13 mm Travel, Locking, Optics Cage Plus

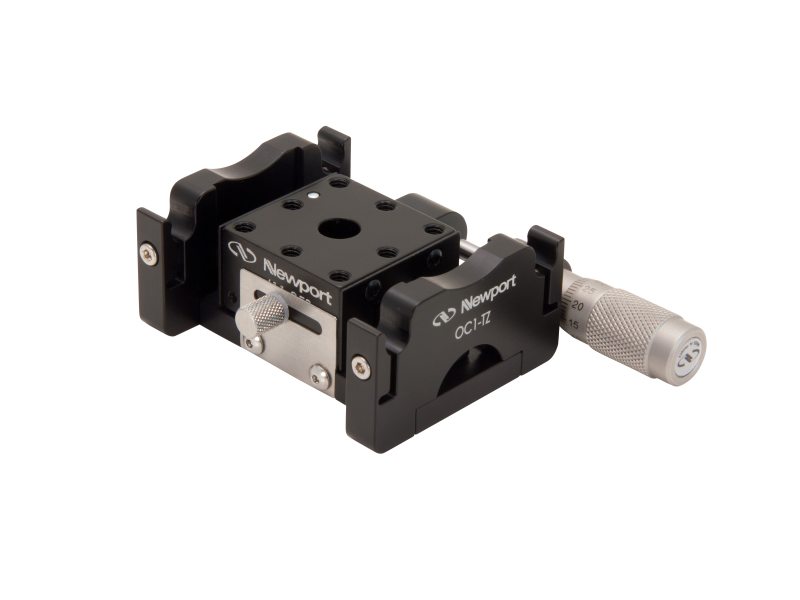

Optics Cage Plus Adjustable Mounts

1 in. OpticsCage+ Z-Axis Translation Stage, 0.5 in. (13 mm) Travel, Locking

Specifications

Technical Specs

Type
Translation Stage
Thread Type
8-32

Adjustment Range
±6.5 mm

Type
Translation Stage
Thread Type
8-32

Adjustment Range
±6.5 mm

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-TZ (90071072)(225 kB, PDF)

Other

OC1-TZ RoHS Certificate(281.5 kB, PDF)
