Adjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus

Optics Cage Plus Adjustable Mounts

Optics Cage Lens Mount, XY, θXθY Fine, Ø1 in., OpticsCage+

Specifications

Technical Specs

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum
Adjustment Range
X, Y: ±1.3 mm
θX, θY: +8°/-3°

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
6.4 mm
Material
Aluminum
Adjustment Range
X, Y: ±1.3 mm
θX, θY: +8°/-3°

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-LH1-XYA (90070173)(218.8 kB, PDF)

Other

OC1-LH1-XYA RoHS Certificate(279.5 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Alignment Target, Drop-in, Optics Cage Plus	UNIVERSAL				Learn More
		Cross Clamp, 1.0 in., Optics Cage Plus	UNIVERSAL				Learn More

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Tube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Standard, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Adjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL				Learn More

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Filter Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Polarizer Rotator, Insertable, 1 in. Dia. NP1 Thd., 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Objective Lens Mount, Insertable, RMS Thread, Optics Cage Plus	UNIVERSAL				Learn More
		Fiber Adaptor, FCA, 1 in. Dia. I/F, 0.20 thick	UNIVERSAL				Learn More
		Fiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick	UNIVERSAL				Learn More

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Mounting Cube, Optics Cage Plus	UNIVERSAL				Learn More

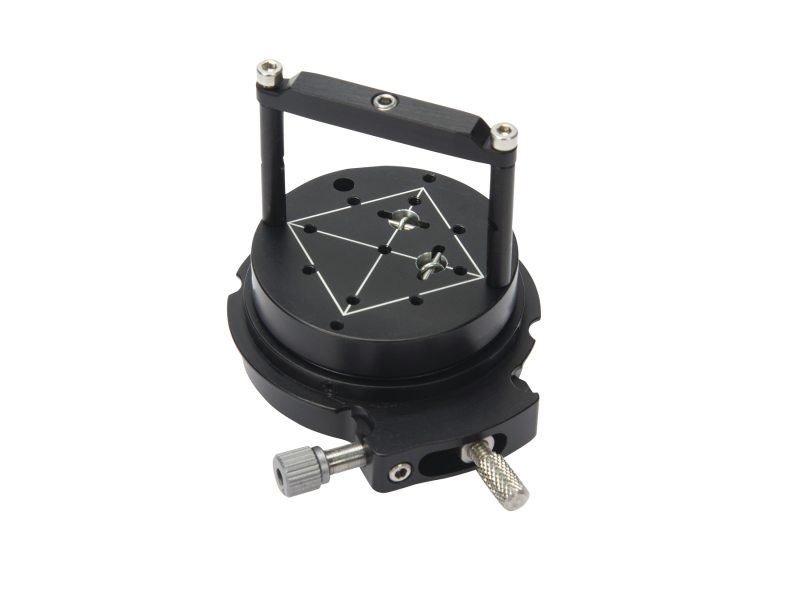

		Adjustable Cube Mount, Optics Cage Plus	UNIVERSAL				Learn More
