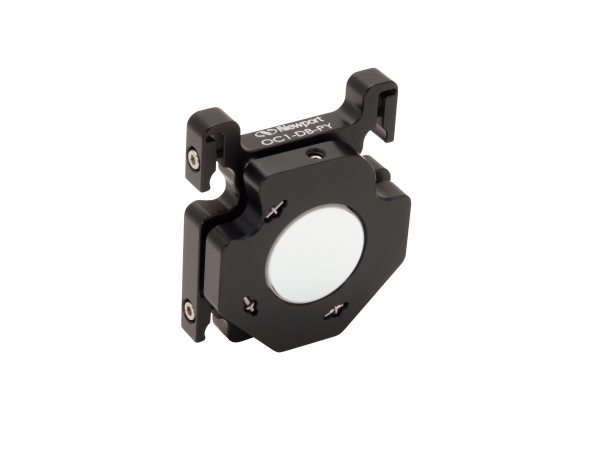

Kinematic Mirror Mount, Insertable, 25.4 mm, Optics Cage Plus

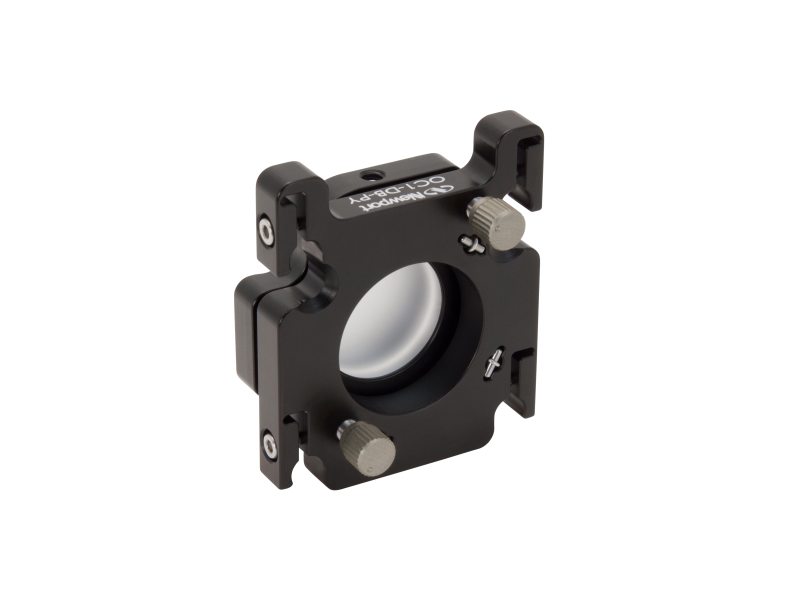

Optics Cage Plus Adjustable Mounts

Optics Cage Adjustable Mirror Mount, Ø1 in. OpticsCage+. Double-bored

Specifications

Technical Specs

Type
Mirror Mount
Clear Aperture
23.9 mm
Optic Diameter
25.4 mm

Material
Aluminum
Adjustment Range
±4°

Type
Mirror Mount
Clear Aperture
23.9 mm
Optic Diameter
25.4 mm

Material
Aluminum
Adjustment Range
±4°

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-DB-PY (90070177)(167.2 kB, PDF)

Other

OC1-DB-PY RoHS Certificate(279 kB, PDF)
OC1-DB-PY_RoHS2021.pdf(682.3 kB, PDF)
