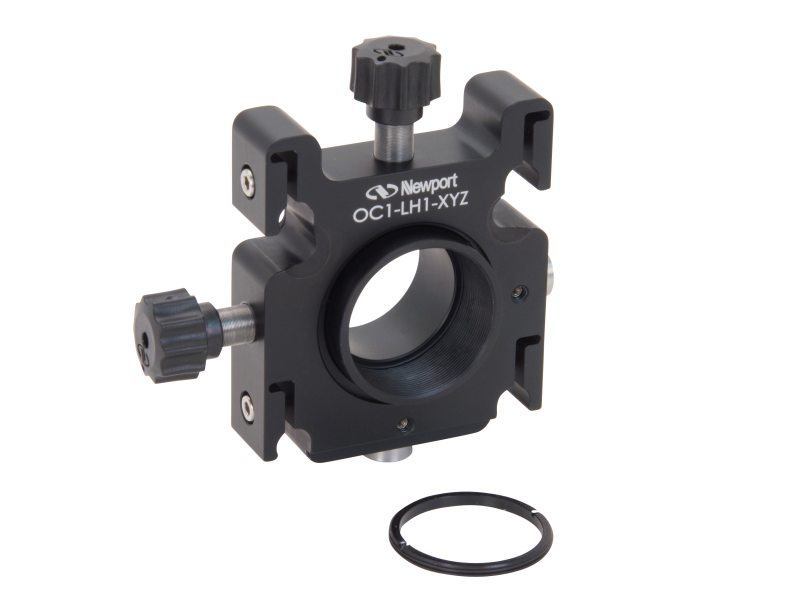

Adjustable Lens Mount, Insertable, XYZ Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus

Optics Cage Lens Mount, XYZ Fine, 1 in. Dia., OpticsCage+

Specifications

Technical Specs

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
10 mm
Material
Aluminum
Adjustment Range
X, Y: ±1.3 mm
Z: 3.3 mm

Type
Lens Mount
Clear Aperture
23.9 mm
Thread Type
1.035-40

Optic Thickness
10 mm
Material
Aluminum
Adjustment Range
X, Y: ±1.3 mm
Z: 3.3 mm

Resources & Downloads

3D Product Models

2D Product Drawings

OC1-LH1-XYZ (90070165)(186 kB, PDF)

Other

OC1-LH1-XYZ RoHS Certificate(257.5 kB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Cage Adapter to 30 mm Cage System, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Alignment Target, Drop-in, Optics Cage Plus	UNIVERSAL				Learn More
		Cross Clamp, 1.0 in., Optics Cage Plus	UNIVERSAL				Learn More

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 0.800-36 RMS Thread	UNIVERSAL				Learn More

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Tube Mount, Insertable, Aegis Qube Beam Tube, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Standard, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Adjustable Lens Mount, Insertable, XY Coarse, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL				Learn More

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Filter Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Polarizer Rotator, Insertable, 1 in. Dia. NP1 Thd., 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Objective Lens Mount, Insertable, RMS Thread, Optics Cage Plus	UNIVERSAL				Learn More
		Fiber Adaptor, FCA, 1 in. Dia. I/F, 0.20 thick	UNIVERSAL				Learn More
		Fiber Adaptor, SMA, 25.4 mm Diameter, 5.1 mm Thick	UNIVERSAL				Learn More

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Mounting Cube, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Insertable, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Lens Mount, Standard, 1 in. Diameter, Optics Cage Plus	UNIVERSAL				Learn More
		Adjustable Lens Mount, Insertable, XY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Adjustable Lens Mount, Insertable, XYθXθY Fine, 25.4 mm Diameter, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
		Optical Post Mount, 1 in. Optics Cage Plus	UNIVERSAL				Learn More
