Nd:YAG Laser Mirror, High-Energy, 25.4 mm Diameter, 45°, 532 nm

UV Fused Silica High Energy Nd:YAG Laser Mirrors

The 10Q20HE.2 is a 25.4 mm diameter, 6.35 mm thick High Energy Nd:YAG Laser Mirror coated for the fundamental 532 nm wavelength. Its reflectivity at this wavelength is greater than 99% for both s- and p-polarization, and it is optimized for 45° AOI.

Newport's High Energy Nd:YAG Laser Mirrors feature ultra-hard dielectric coatings on UV Grade Fused Silica substrates to resist damage from high power lasers. The coating is highly durable and will withstand repeated cleaning.

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
532 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
UV Grade Fused Silica
Coating Type
Ultra-hard Dielectric
Coating Code
HE.2

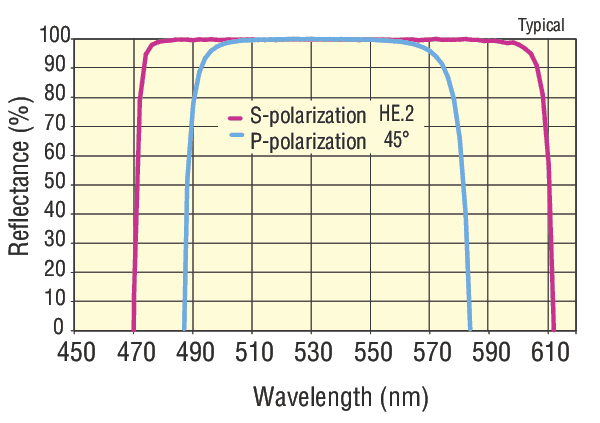

Reflectivity
R_s, R_p>99% @ 532 nm
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm with power removed

Angle of Incidence
45°
Clear Aperture
≥central 80% of diameter
Back Surface
Commercial Polish
Thickness
6.35 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51 ± 0.25 mm face width
Chamfers Angle Tolerance
45°
Cleaning
See How to Clean Optics
Damage Threshold
3 KW/cm² CW
10 J/cm² @ 20 ns, 20 Hz

Wavelength Region
VIS
Wavelength Range
532 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
UV Grade Fused Silica
Coating Type
Ultra-hard Dielectric
Coating Code
HE.2
Reflectivity
R_s, R_p>99% @ 532 nm
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm with power removed

Angle of Incidence
45°
Clear Aperture
≥central 80% of diameter
Back Surface
Commercial Polish
Thickness
6.35 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51 ± 0.25 mm face width
Chamfers Angle Tolerance
45°
Cleaning
See How to Clean Optics
Damage Threshold
3 KW/cm² CW
10 J/cm² @ 20 ns, 20 Hz
