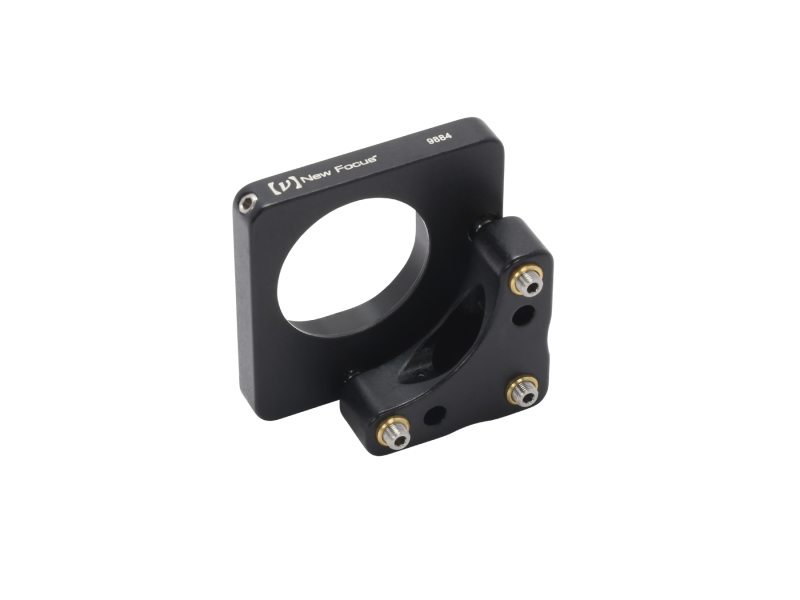

Mirror Mount, Pint-Sized, Corner, 1.0 in., 3 Allen-Keys
The 9884-K Pint Sized Corner Mirror Mount holds 1.0 in. diameter optics, and is only half the size of our Classic mounts, yet provides the same high level of performance you've come to count on. With a 1.0 in. beam height, 8-32 (M4) mounting holes, and Allen-key adjustment this anodized-aluminum mount is completely compatible with all the other mounts, posts, and pedestals you already own.
Resources & Downloads
Drawings And Cad
9884d-Drawing(91.8 kB, PDF)
